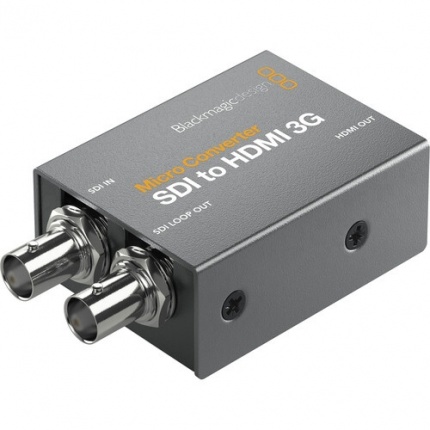

Blackmagic Design Micro Converter SDI to HDMI 3G with Power Supply

S$ 115.00
(S$ 115.00 excl GST)

Not shipping to UNITED STATES OF AMERICA 3 years manufacturer's warranty Want this delivered today? Find out more

Please select your add-on:

Buy this item and get the AKG K175 for only $89!

Add to cart Add to wishlist

What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!

1x SD/HD/3G-SDI Input & 1 x Loop Output

Key Features:

1x SD/HD/3G-SDI Input & 1 x Loop Output
1 x HDMI Type A Output
DCI 2K SDI In/Out | 1080p60 HDMI Out
AC Power Supply & Socket Adapters
3D LUT for Calibrating or Loop Output
SDI A/B Selection | USB Power
Embedded Audio
Compact, Rugged Design
LED Video & Power Signal Indicators

Show more Show less

Super compact and rugged, the Micro Converter SDI to HDMI 3G from Blackmagic Design enables you to use HDMI-input monitors and televisions for production monitoring. This compact converter has one SD/HD/3G-SDI input, one HDMI output, and one SD/HD/3G-SDI loop output. It includes a 17-point 3D LUT that can be used to calibrate HDMI- or SDI-input monitors and it can output a LUT for viewing via the SDI loop output. The Micro Converter SDI to HDMI 3G also features automatic SD, HD, and Level A and B SDI detection and support for a wide range of pro broadcast resolutions including cine-style 48 fps.
This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the SDI to HDMI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.

Specifications

Video I/O
Input
1x BNC (3G-SDI)
Output
1x BNC (3G-SDI) (Loop Output)
1x HDMI 2.0

Video Resolution
BNC Input (8/10-Bit 4:2:2 RGB, YUV)
2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
2048 x 1080PsF at 25/29.97/30 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
768 x 576i at 50 fps
720 x 480i at 59.94 fps
SDI Output
2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
2048 x 1080PsF at 25/29.97/30 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
768 x 576i at 25 fps
720 x 480i at 29.97 fps
HDMI Output (4:2:2 YUV)
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
768 x 576i at 25 fps
720 x 480i at 29.97 fps

Broadcast System Compatibility
NTSC, PAL
Wireless
No
OS Compatibility
macOS 10.14.15 or Later
Windows 10
