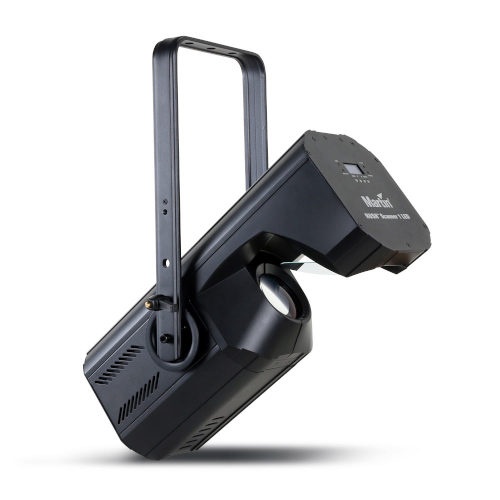

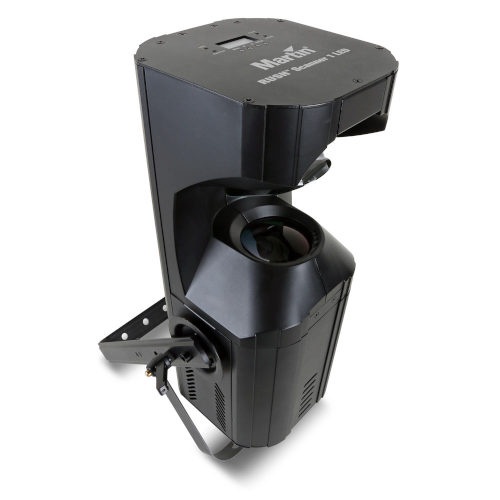

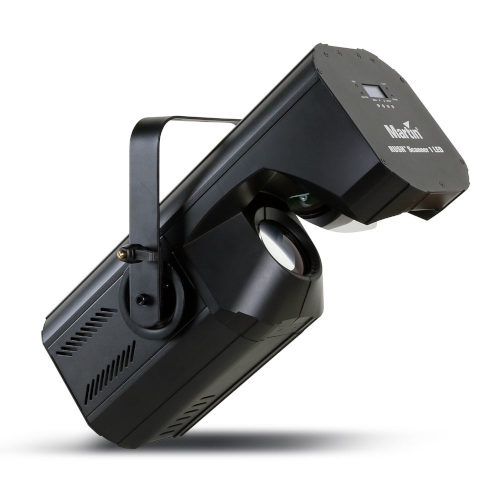

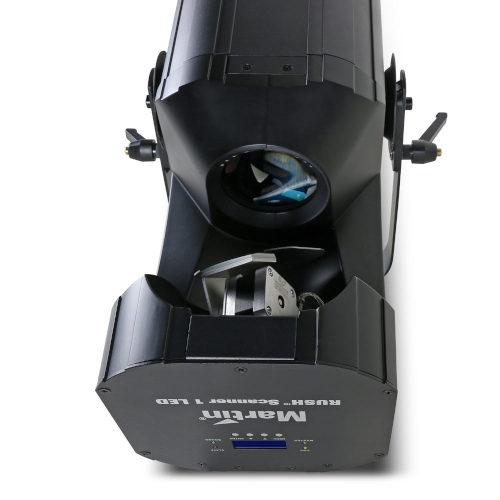

The RUSH Scanner 1 LED is designed to enable lighting designers to boost the wow factor and energize crowds with high-speed mid-air looks in a variety of entertainment venues and nightclubs.
This fixture delivers high output via sharp optics and is packed with eye-catching effects. With its high-speed pan and tilt capabilities, the RUSH Scanner 1 LED is ideal for creating dramatic atmospheres and boosting energy levels on cruise ships, in dance clubs and other nightlife venues.
Compact size, low weight, rugged construction and long-life LEDs also make the RUSH Scanner 1 LED a favorite for rental companies seeking to produce once-in-a-lifetime memorable events through powerful, dynamic lighting effects:Powerful 90 W white LED engine, Breathtakingly fast pan and tilt, Rich, dynamic feature set including two color wheels, two gobo wheels and rotating prism
In the Box
Martin Professional Lighting Rush Scanner 1 LED
Power Cord (4.9')
Mounting BracketDYNAMIC EFFECTS
Electronic shutter effect: Strobe, pulse effects, instant open and blackout
Electronic dimming: 0 - 100%, four dimming curve options
Color wheel 1: 8 colors plus open, rotation with variable direction and speed
Color wheel 2: 8 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed
Rotating gobo wheel: 6 rotating/indexing gobos plus open
Focus: Motorized
Prism: Indexing and rotation with variable direction and speed
Fixed gobo wheel: 7 gobos plus open
Pan: 170°, coarse & fine control
Tilt: 75°, coarse & fine controlCONTROL AND PROGRAMMING
Control options: DMX, standalone, synchronized master/client

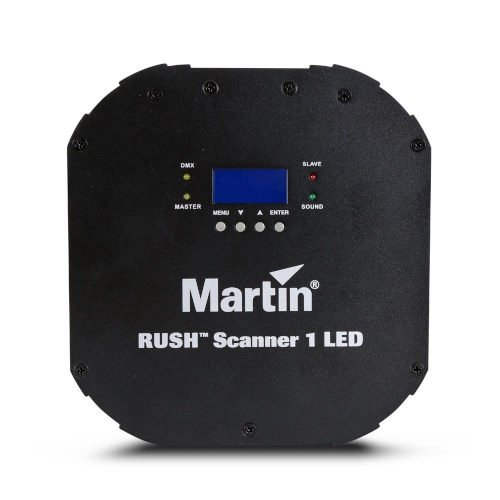

Setting and addressing: Control panel with backlit LCD display
DMX channels: 16
Standalone trigger options: Sound activation (music trig), auto trig
Standalone sequences: 9 pre-programmed shows
Standalone memory: 20 scenes
Music trig sensitivity: Adjustable
DMX compliance: USITT DMX512/1990OPTICS
Light source: 90 W LED engine
Minimum LED lifetime: 30,000 hours (to >70% luminous output)*
Rotating gobo size : 24 mm (0.94 in.)
Rotating gobo image size : 20 mm (0.79 in.)
*Figure obtained under manufacturer's test conditions.CONSTRUCTION
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20INSTALLATION

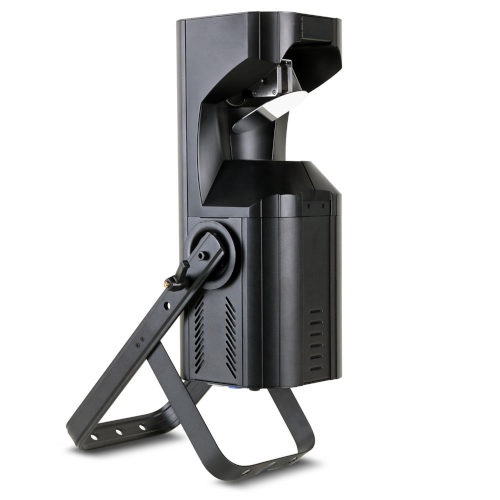

Mounting points: Adjustable bracket, surface or truss mount
Location: Indoor use only, must be fastened to surface or structure
Orientation: AnyCONNECTIONS

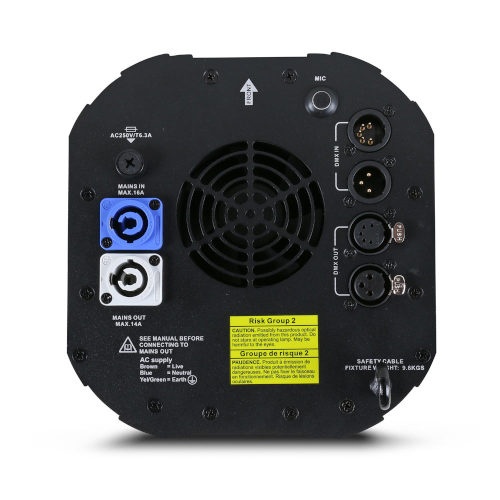

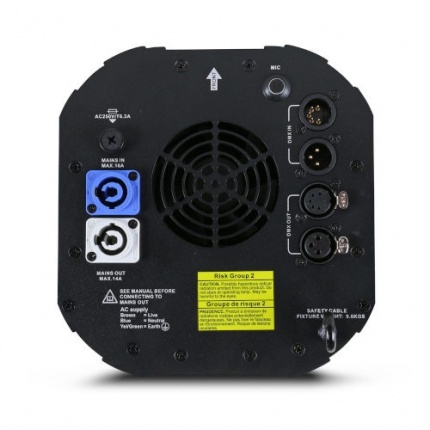

AC power in, thru: Neutrik PowerCon
DMX data in/out: 3-pin and 5-pin locking XLRELECTRICAL
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Power Consumption: 168 W
Fuse: T 6.3 A
Typical half-cycle RMS inrush current: 10 ATYPICAL POWER AND CURRENT
100 V, 60 Hz: 1.7 A, 170 W, PF 0.997
120 V, 60 Hz: 1.4 A, 165 W, PF 0.994
230 V, 50 Hz: 0.7 A, 162 W, PF 0.937
Figures obtained at nominal voltage. Figures are typical, not maximum, allow for +/- 10% variation.THERMAL
Cooling: Forced air
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%): 570 BTU/hr. (at full intensity)APPROVALS
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ: RCMINCLUDED ITEMS
Power cable, 6 A, 18 AWG, 0.75 mm2, UL- listed, H05VV-F, 1.5 m, without mains plug
Mounting bracketACCESSORIES (Optional items not included)
Power connectors:
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female : P/N 91611794Cables, 16 A, for connection to power in chains:
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176Cables, 16 A, for power input:
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
