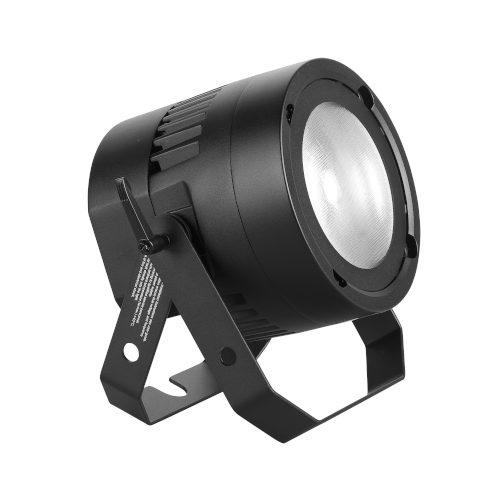

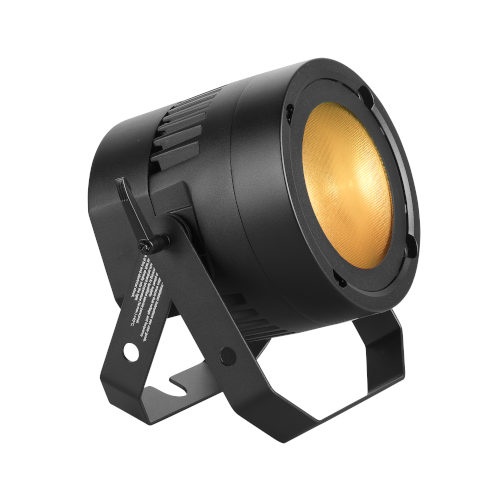

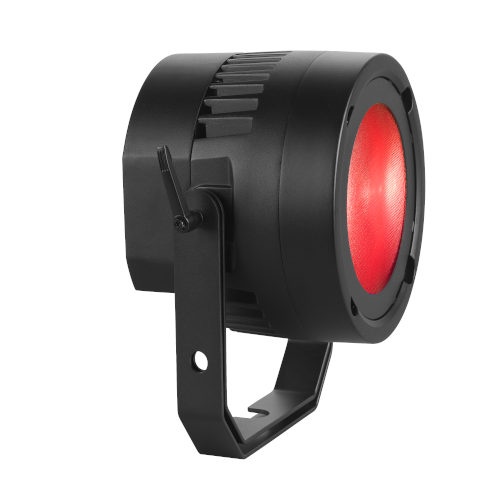

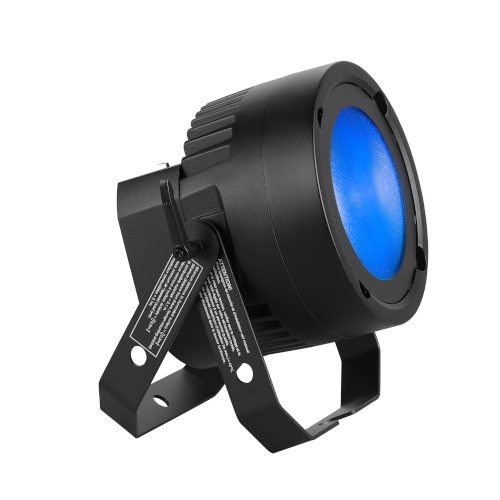

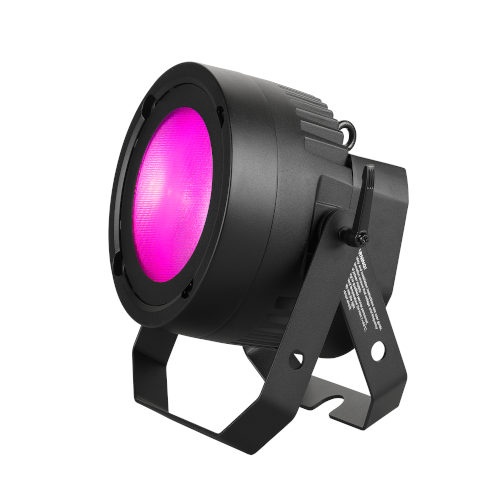

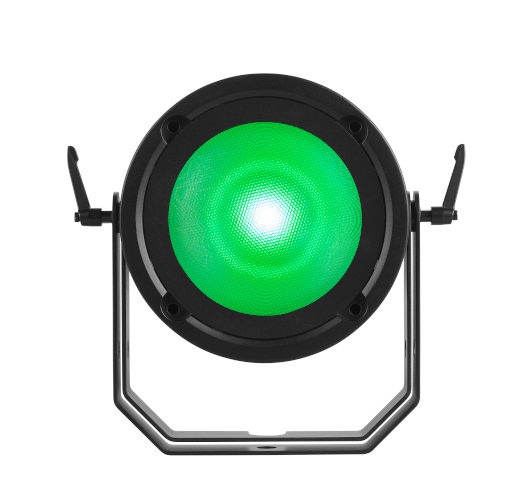

The RUSH PAR 3 RGB is a bright single-lens color LED PAR can light fixture. With a 36 watt COB RGB LED, the RUSH PAR 3 RGB offers fully premixed color for use in wash and key lighting applications. A magnetically attached beam angle reducer lens allows the RUSH PAR 3 RGB to offer both 80° and 14° beam angle options, and the fanless design provides quiet operation in sound-sensitive environments.
The RUSH PAR 3 RGB includes electronic dimming and strobe, a bracket for floor or truss mounting, and a rugged, lightweight aluminum construction, making it ideal for live shows, performing arts, house of worship, bars, nightlife, and architectural installations. A version finished in white is also available for décor matching.
Single-lens 36W LED PAR with premixed color
Removable magnetic lens for multiple beam angles
Fanless design for quiet operationIn the Box
Martin Professional Lighting RUSH PAR 3 RGB Single-Lens RGB LED PAR (Black)
Prismatic Lens
4.9' Power Cable (without Mains Plug)DYNAMIC EFFECTS
Dimming: 0 – 100%, coarse & fine control
Shutter: Strobe & pulse effects, instant open and blackout
Color Effect: 8 bit RGB color mixCONTROL AND PROGRAMMING
Control systems: USITT DMX512/1990 with RDM
DMX channels: 9
RDM compliance: ANSI/ESTA E.120

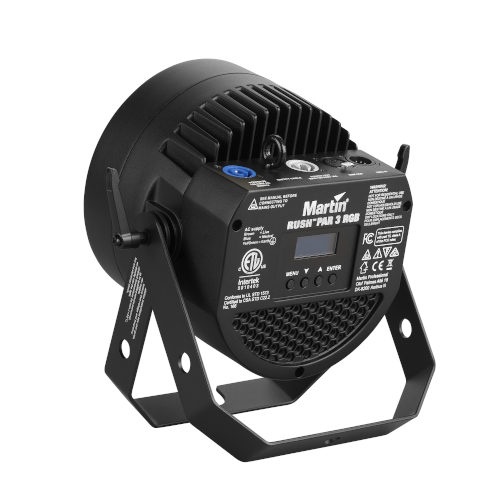

Interface: Control panel with backlit LCD display
OPTICS
Beam angle: 83° (without lens), 14.5° (with lens)
Field angle: 106° (without lens), 33° (with lens)PHOTOMETRIC DATA
560 lumen without lens
380 lumen with lensCONSTRUCTION
Housing: Cast aluminum
Color: Black or white version
Protection rating: IP20INSTALLATION

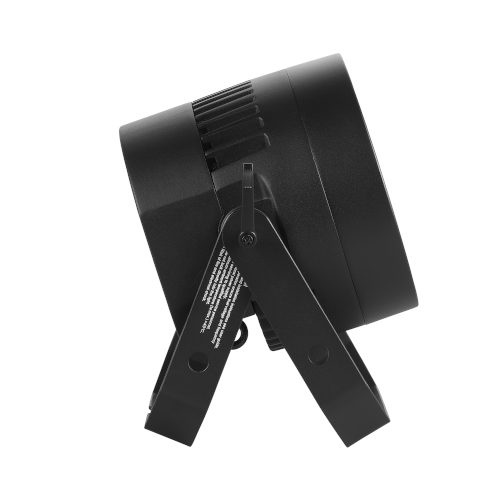

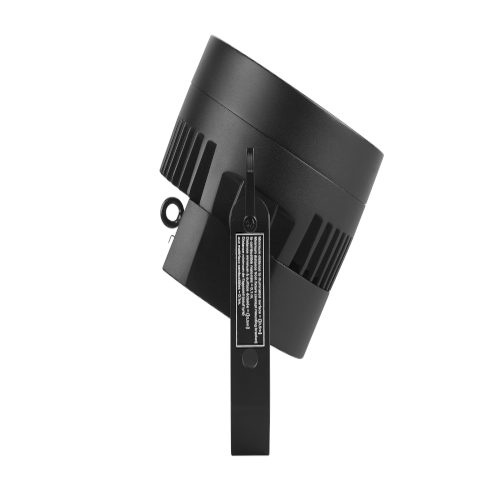

Mounting points: Adjustable bracket, surface or truss mount
Location: Indoor location only
Orientation: Any
Minimum distance to combustible materials: 0.1 m (4 in.)
Minimum distance to illuminated surfaces: 0.5 m (20 in.)CONNECTIONS
AC power input/output: Neutrik PowerCon
DMX/RDM in/out: 5-pin locking XLRELECTRICAL
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current: 7.8 A
Recommended Miniature Circuit Breaker when power linking: Type D*
*Per IEC 60898/UL489/CSA C22.2 No. 5
Maximum total power consumption: 30 WTYPICAL POWER AND CURRENT
100 V, 60 Hz: 30 W, 0.5 A, PF 0.615
120 V, 60 Hz: 30 W, 0.4 A, PF 0.599
230 V, 50 Hz: 30 W, 0.3 A, PF 0.496
Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.THERMAL
Cooling: Forced air, temperature-regulated
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)APPROVALS
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: 47 CFR 15 Class A
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ: RCMINCLUDED ITEMS
Power cable, 1.5 m without mains plug
Prismatic lensACCESSORIES (Optional items not included)
Power connectors:
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female: P/N 91611794Cables, 16 A, for connection to power in chains:
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG,SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176Cables, 16 A, for power input:
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)Installation hardware:
Half-coupler clamp: P/N 91602005
G-clamp (vertical hanging suspension only): P/N 91602003
Quick-trigger clamp (vertical hanging suspension only): P/N 91602007Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
