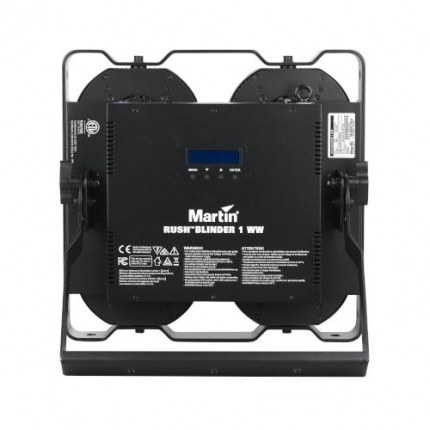

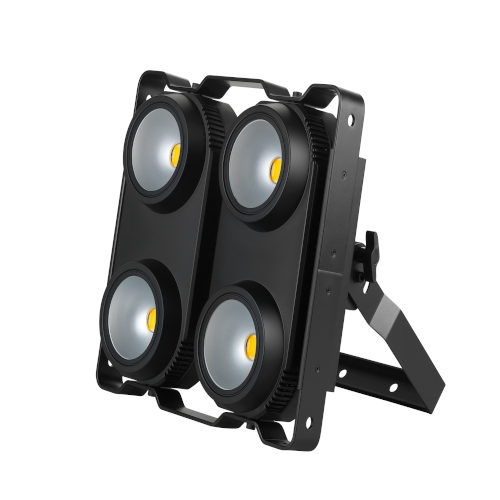

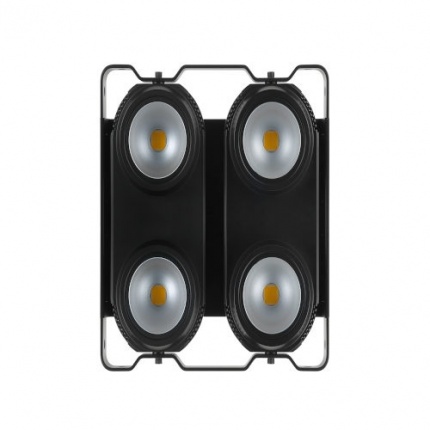

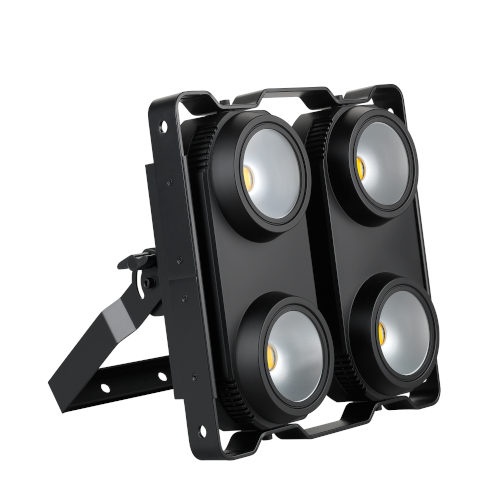

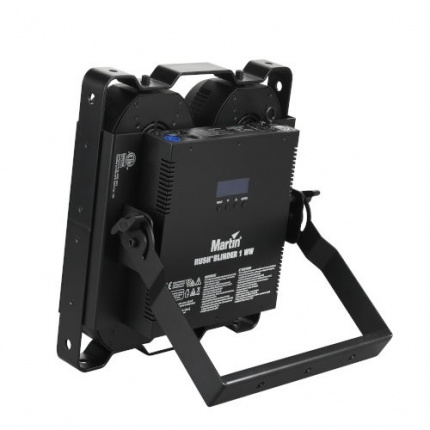

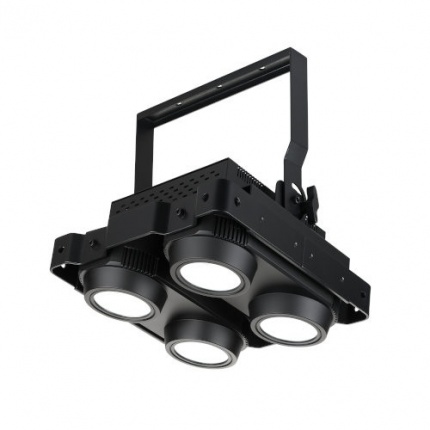

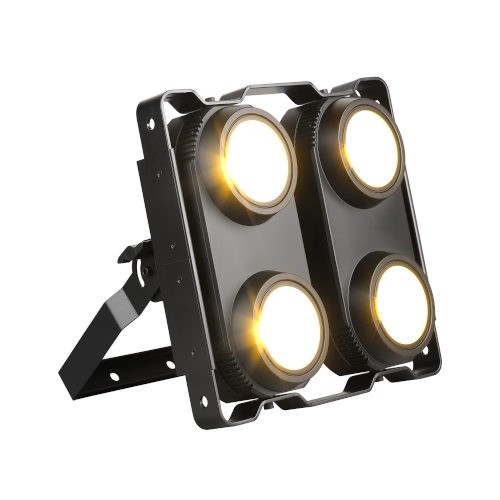

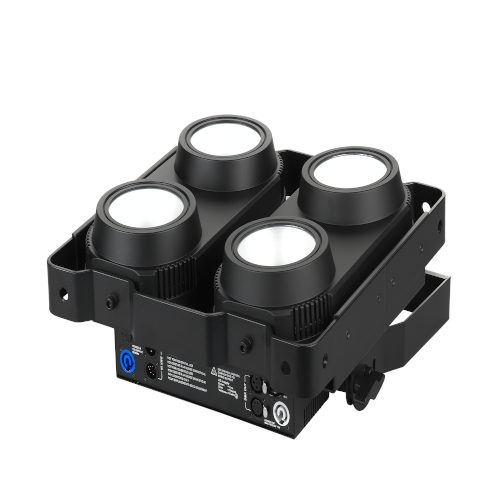

The RUSH BLINDER 1 WW is an ultra-bright quad-LED blinder fixture. The 2x2 blinder features a PAR array with four individually-controllable 100 watt COB warm white LEDs, providing high-intensity light for a variety of entertainment events. The unique frame on the RUSH BLINDER 1 WW offers the ability to attach multiple fixtures together in a grid pattern. With individually-controllable COBs, multiple units can be used to create pixel effects across a grid of fixtures, with on-board electronic dimming and strobe also available.
The fixture offers a wide 70° beam angle, with a combined 19,000+ lumens output from the fixture for truly brilliant effects. The rugged, lightweight construction and available brackets for floor or truss mounting make the RUSH BLINDER 1 WW ideal for live shows, TV events, stage, concerts, and nightclubs.
Ultra-bright 2x2 100W LED blinder with individually-controllable LEDs
Unique frame allows multiple fixtures to be mounted together
Wide 70° beam angle for broad coverageIn the Box
Martin Professional Lighting RUSH BLINDER 1 WW
Power cable, 1.5 m without mains plugDYNAMIC EFFECTS
Dimming: 0 – 100%, coarse & fine control
Shutter: Strobe & pulse effects, instant open and blackoutCONTROL AND PROGRAMMING
Control systems: USITT DMX512/1990 with RDM
DMX channels: 1, 4, or 8
RDM compliance: ANSI/ESTA E.120
Interface: Control panel with backlit LCD displayOPTICS
Beam angle: 70°CONSTRUCTION
Housing: High impact flame retardant thermoplastic and aluminum
Color: Black
Protection rating: IP20INSTALLATION
Mounting points: Adjustable bracket, surface or truss mount
Location: Indoor location only
Orientation: Any
Minimum distance to combustible materials: 0.1 m (4 in.)
Minimum distance to illuminated surfaces: 0.5 m (20 in.)CONNECTIONS
AC power input/output: Neutrik PowerCon
DMX and RDM data in/out: 3-pin and 5-pin locking XLRELECTRICAL
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Fuse: T 250 V 6.3 A
Typical half-cycle RMS inrush current: 15.5 A at 240 V, 50 Hz
Recommended Miniature Circuit Breaker when power linking: Type D*
*Per IEC 60898/UL489/CSA C22.2 No. 5
Maximum total power consumption: 448 W
TYPICAL POWER AND CURRENT
100 V, 60 Hz: 432 W, 4.3 A, PF 0.998
120 V, 60 Hz: 428 W, 3.6 A, PF 0.996
230 V, 50 Hz: 426 W, 1.9 A, PF 0.956
Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.THERMAL
Cooling: Convection
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)APPROVALS
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: 47 CFR 15 Class A
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ: RCMINCLUDED ITEMS
Power cable, 1.5 m without mains plugACCESSORIES (Optional items not included)
Power connectors:
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female : P/N 91611794Cables, 16 A, for connection to power in chains:
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG,SJOOW POWCON-POWCON 2.5m (8.2 ft.) : P/N 91610176Cables, 16 A, for power input:
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)Installation hardware:
Half-coupler clamp: P/N 91602005
G-clamp (vertical hanging suspension only): P/N 91602003
Quick-trigger clamp (vertical hanging suspension only): P/N 91602007Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
