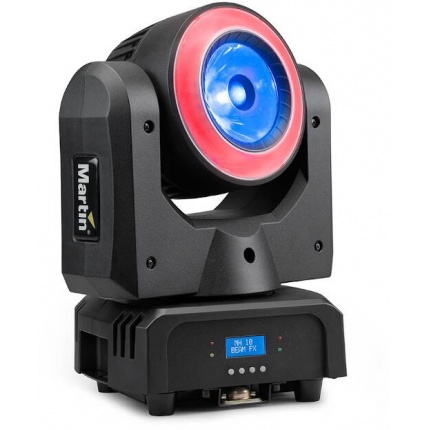

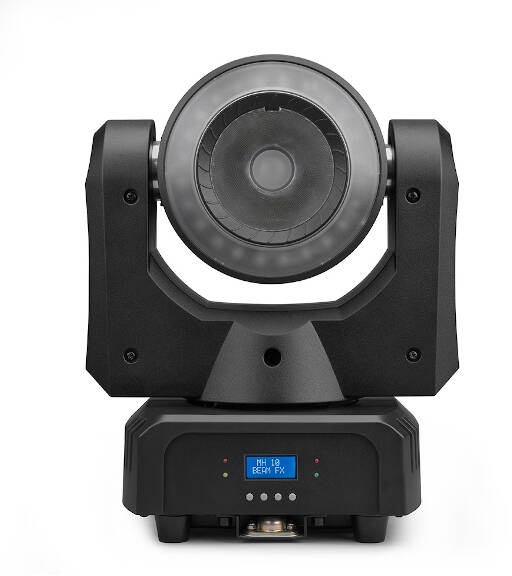

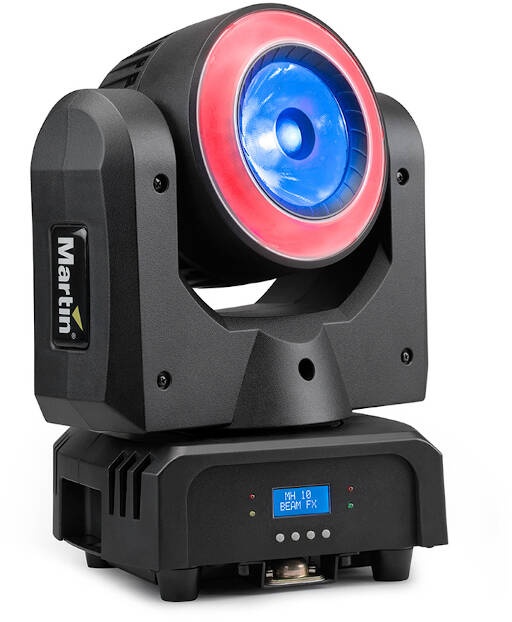

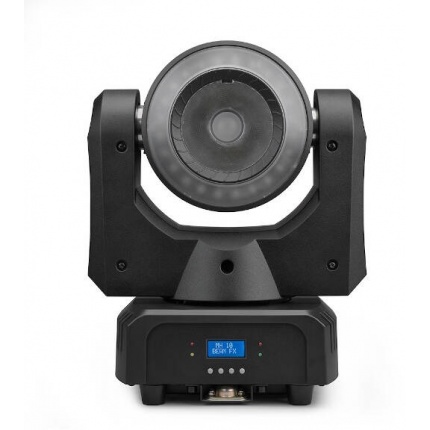

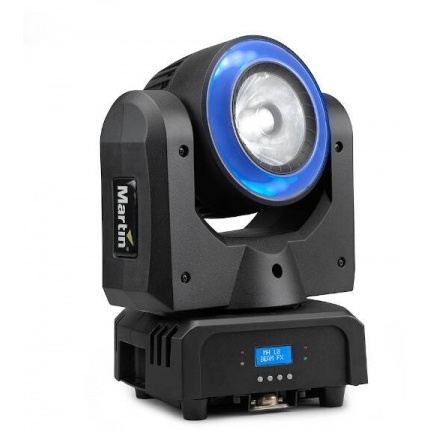

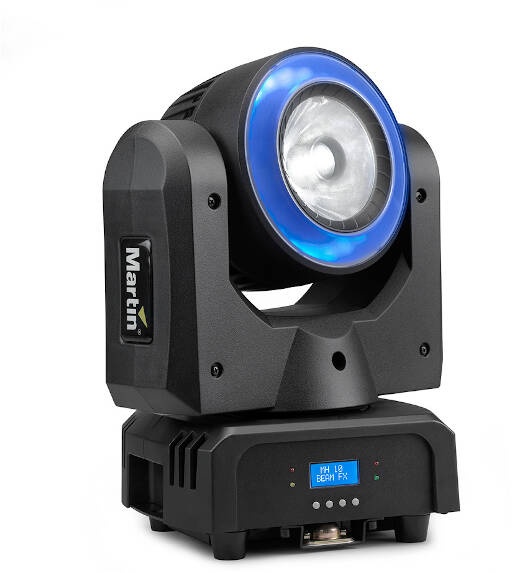

The Martin RUSH MH 10 Beam FX is a compact 60W RGBW LED Beam moving head fixture with an independent, built-in LED ring. With 24 individually controllable RGB LEDs surrounding a central beam lens, the RUSH MH 10 FX offers a variety of exciting visual effect possibilities at an affordable price.
The Martin RUSH MH 10 Beam FX uses a collimator lens design, creating a striking, high-intensity look on stage. The OSRAM OSTAR LEDs on the MH 10 Beam offer excellent color mixing with Martin MAC Aura, RUSH MH 6, and RUSH Par 2 fixtures. Independent control of the ring LEDs also allows the fixture to easily blend into on-stage LED video elements.
Other features include continuous pan and tilt and lightweight build, providing a number of interesting rigging possibilities and high-speed looks. The Martin RUSH MH 10 is a perfect fit for nightlife, houses of worship, cruise ships, and small-to-medium touring and rental customers: Collimator lens for a super-tight 4.5° high-intensity beam, LED ring with 24 independently controllable LEDs, Continuous pan/tilt for unrestricted movement and high-speed looks
In the Box
Martin Professional Lighting Rush MH 10 Beam FX - Compact Moving Head with LED Ring
Power Cord
2 x Omega BracketPHYSICAL
Length: 275 mm (10.8 in.)
Width: 188 mm (7.4 in.)
Height: 325 mm (12.8 in.)
Weight: 7.5 kg (16.5 lbs.)DYNAMIC EFFECTS
Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout (independent in beam and ring)
Beam color mixing: RGBW
Pre-programmed effects: FX (effect macros) in the ring with variable speed and direction of sequences, synchronization, and chases across multiple fixtures
Ring color mixing: RGB, grouped or individual control of 24 cells
Virtual color wheel: 33 colors presets, virtual color wheel rotation effects, random color (independent in beam and ring)
Pan: 540°
Tilt: 270°
Pan and tilt speed: Adjustable via onboard control panel and DMX
Dimming: 0-100%, coarse and fine control (independent in beam and ring)
Pan and tilt rotation effect: Constant, variable speed and directionCONTROL AND PROGRAMMING
Control options: DMX, RDM, stand-alone, master/client
Setting and addressing: Control panel with backlit LCD display
DMX channels: 24 or 93
Stand-alone trigger options: Music trig, auto trig
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20OPTICS
Beam effect light source: 60 W RGBW Osram LE RTDUW S2WP
Ring effect light source: 24 x 0.25 W RGB LEDs
Cutoff beam angle: 4.4°
Minimum LED lifetime: 20,000 hours to >70% luminous output*
*Under manufacturer's test conditions.CONSTRUCTION
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20INSTALLATION
Minimum clearance around the fan and air vents: 100 mm (4 in.)
Mounting points: One quarter-turn Omega bracket for rigging clamp
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 100 mm (4 in.)
Minimum distance to illuminated surfaces: 200 mm (8 in.)CONNECTIONS

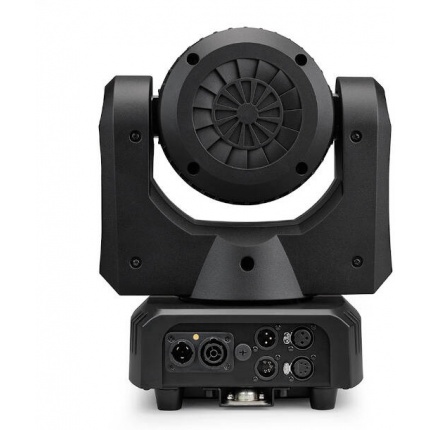

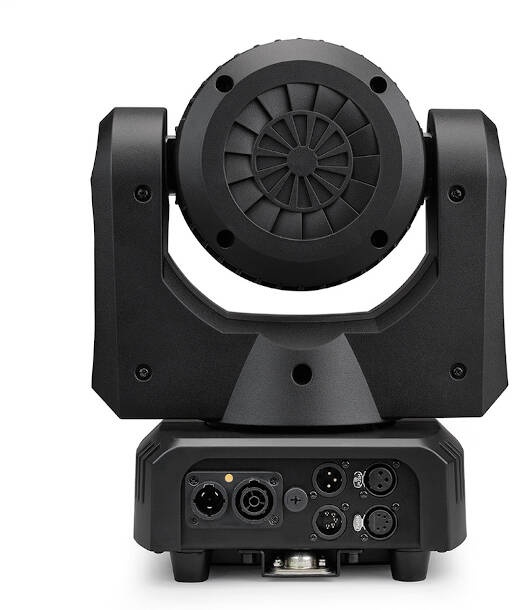

AC power in, thru Neutrik TRUE1
DMX data in, thru 3-pin and 5-pin locking XLRELECTRICAL
AC power: 100-120 / 200-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch modeTYPICAL POWER AND CURRENT
120 V, 60 Hz: 0.85 A, 100 W, PF 0.99
230 V, 50 Hz: 0.49 A, 108 W, PF 0.99
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.THERMAL
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%): 1300 BTU/hr. (at full intensity, full white)APPROVALS
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3
US safety: UL 1573
US EMC: CFR Title 47 Part 15 Class A
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ: RCM (pending)INCLUDED ITEMS
Power cable, 1.5 m (4.9 ft.), without mains plugACCESSORIES (Optional item not included)
Cables, 16 A, for connection to power in chains:
Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174Cables, 16 A, for relaying power in chains:
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172Connectors:
Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
