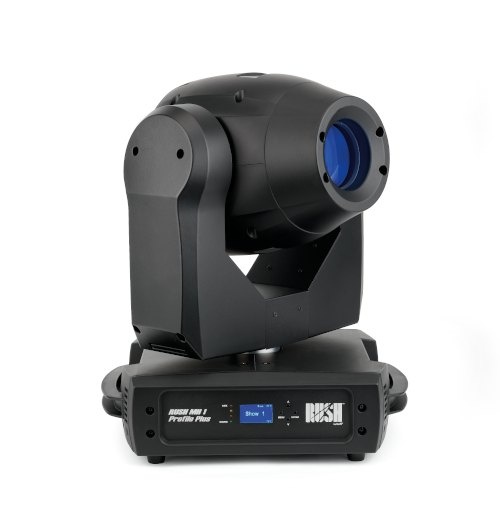

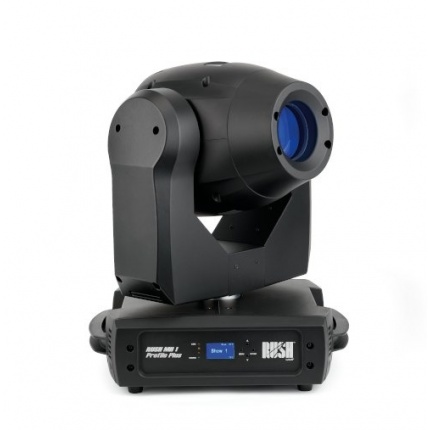

Martin Professional RUSH MH 1 Profile Plus Moving Head

DYNAMIC EFFECTSElectronic shutter effect: Strobe effect, pulse effects, instant open and blackout
Electronic dimming: 0 - 100%, four dimming curve options
Color wheel 1: 7 colors plus open, rotation with variable direction and speed
Color wheel 2: 7 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed
Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo indexing, rotation and shake
Static gobo wheel: 8 gobos plus open, wheel rotation and shake
Iris: Motorized
Focus: Motorized
Prism: Indexing and rotation with variable direction and speed
Pan: 540°
Tilt: 270°
Pan and tilt speed: Adjustable via onboard control panel and DMX

CONTROL AND PROGRAMMING
Control options: DMX, standalone
Setting and addressing: Control panel with backlit graphic display
DMX channels: 17
Standalone trigger options: Music trig, auto trig
Standalone sequences: 4 pre-programmed shows
Standalone memory: 20 scenes
Music trig sensitivity: Adjustable
DMX compliance: USITT DMX512/1990

OPTICS
Light source: 180 W LED engine
Minimum LED lifetime: 20,000 hours (to >70% luminous output)*
*Figure obtained under manufacturer´s test conditions.

PHOTOMETRIC DATA
Efficacy: 25.5 lumens per watt
Cut-off angle: 16°
Total output: 7100 lumen

CONSTRUCTION
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20

GOBOS
Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)
Maximum image diameter: 22.0 mm (0.87 in.)
Gobo thickness, minimum: 0.3 mm (0.01 in.)
Gobo thickness, maximum: 3.5 mm (0.14 in.)
Gobo material: Steel, aluminum or borosilicate glass

INSTALLATION
Mounting points: Two quarter-turn brackets for rigging clamps
Location: Dry location only, must be fastened to surface or structure
Orientation: Any

ELECTRICAL
AC power: 100-240 V nominal, 50/60 Hz
Typical total power consumption: 300 W
Power consumption figures are typical, not maximum. Allow for +/-10% variation.

THERMAL
Cooling: Forced air, temperature controlled
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%): 1010 BTU/hr. (at full intensity, full white)

APPROVALS
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: 47 CFR Part 15 Class A
Australia/NZ: RCM

INCLUDED ITEMS
Power cable, 1.5 m (4.9 ft.), without mains plug
Two Omega clamp attachment brackets with 1/4-turn fasteners

ACCESSORIES (Optional item not included)
Power connectors:
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female : P/N 91611794

Cables, 16 A, for connection to power in chains:
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176

Cables, 16 A, for power input:
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)

Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
