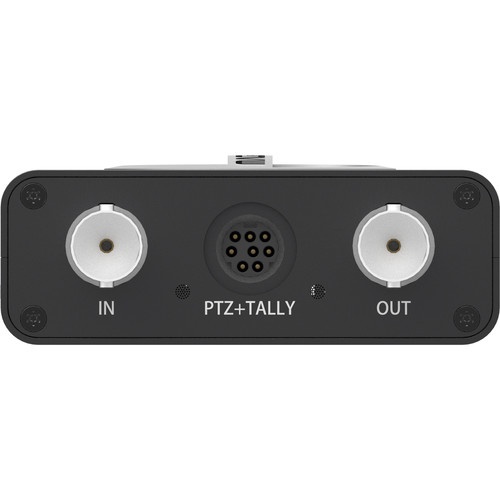

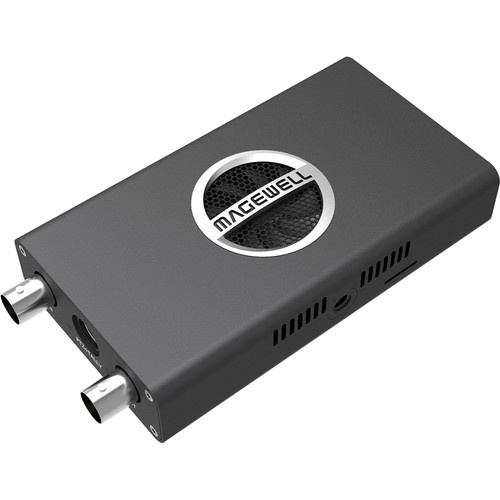

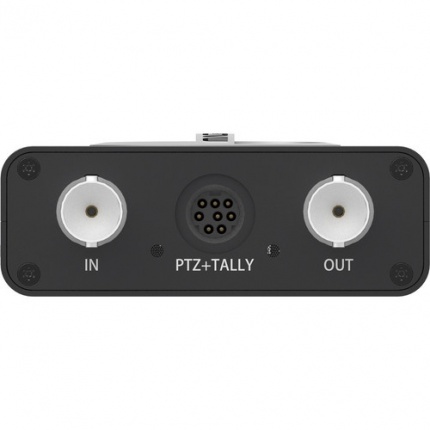

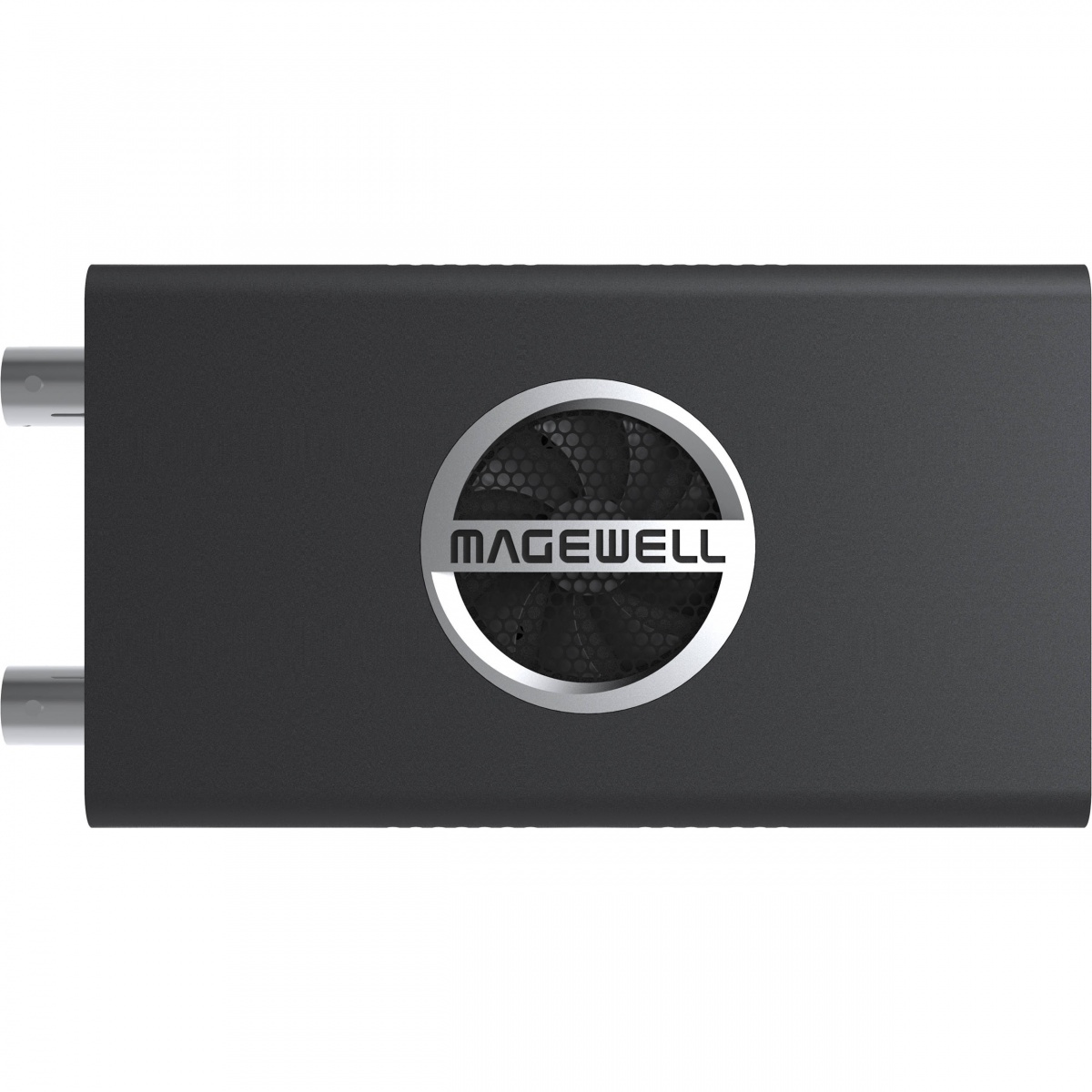

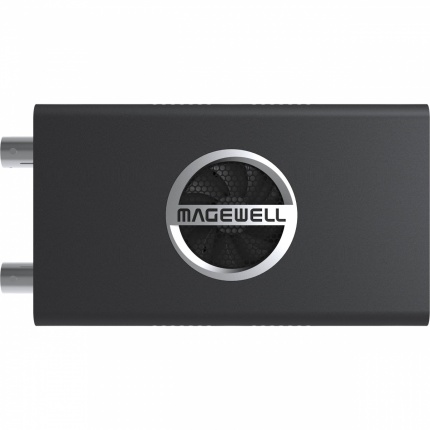

Convert SDI video to an NDI stream with the Pro Convert SDI Plus video signal converter from Magewell. Pro Convert SDI features one SDI input and one SDI loop-through output with eight channels of embedded audio, and it supports SDI input up to DCI 2K 2048 x 1080 video at 60 fps. The RJ45 Gigabit Ethernet port supports encoded NDI output up to DCI 2K 2048 x 1080 8-bit 4:2:2 video at 60 fps.
The SDI loop-through allows you to view your input on a monitor while your NDI-encoded stream can be sent to a variety of NDI-compatible encoding or streaming applications such as OBS, XSplit, vMix, Wirecast, and others via Ethernet. The mini DIN-8 tally/PTZ port provides tally input to pass-through as well as for use with the unit's status LEDs. The LEDs also indicate power, output, and input signal status.

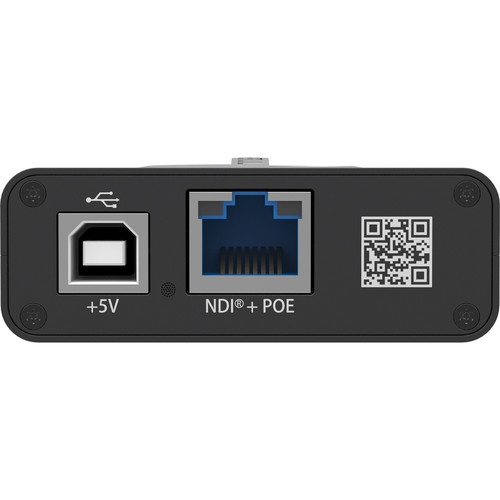

The unit is powered by a 5V power adapter connected to its USB 2.0 Type-B port or via PoE over its RJ45 port. The Pro Convert can be managed with a web UI to configure settings and to perform firmware updates via the USB port. A 1/4"-20 mounting thread allows you to mount the unit in a rack, with a bracket, or on a stand. Included with the Pro Convert are a USB cable, a 5V power adapter, a mini DIN-8 cable, and an L-bracket for mounting.
IN THE BOX
Magewell Pro Convert SDI Plus
USB 2.0 Type-A to Type-B Cable
5 VDC Power Adapter
Mini DIN-8 to RS-232/DIN-8 Cable
Tally Lights
L-Bracket
Limited 1-Year WarrantySupported Web Browser
Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and aboveSupported Software
OBS
XSplit
vMix
VidBlasterX
Wirecast
streamstar SW
mimoLive
Any other NewTek NDI-enabled encoding or streaming softwareInput Interfaces
BNC
SD/HD/3G SDI
Loop-through Interface
BNC
SD/HD/3G SDI
Storage Interface
SD Card (functions to be developed)PTZ + TALLY Control
Mini-DIN–8 jackScrew Mounting Hole
¼–20 mounting hole
Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoEUSB Interface
USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECMInput feature
Support for up to 2048x1080 60fps input resolutionSDI Specific Features
Integrated cable equalizer supporting cable lengths up to 150M for 3G-SDI signals
Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS (SMPTE 2081) standards
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 16 (mono) audio channels
Support for extraction of audio formation information & channel status data
Limited support of 3Gb-DS: only the first stream can be captured
Limited support for capture of the first link of dual link interfaces:
YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
YCbCr 4:4:4 10-bit: captured as 4:2:2
RGB 4:4:4: R/B sub-sampledNDI® Output Format
Support for 4:2:2 8-bit output
Support for up to 2048x1080 60fps output resolution
Support for NDI 4.1Video Processing Features
Support for capture resolutions up to 2048x1080
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing
Top field only
Bottom field only
Video aspect ratio conversion
Auto or manual selection of output aspect ratio
Video color format conversion
Auto or manual selection of input color format & quantization range
Auto or manual selection of output color format, quantization range & saturation range
Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
Support for Limited or Full quantization range
Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video mirror flipNDI® Source Name
Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
Support for setting board-index, from 0 to F, through the on-board rotary switchFirmware Upgrade
Support for manual update using Web UILED Indicator
Status LEDs indicate the working state of the device:
Power supply: on/off
Tally: preview/program
Input signal: locked/unlocked
Loopthrough signal: loopthrough connected and signal detected/undetectedForm Factor
117.5mm (L) x 66.7mm (W) x 23.4mm (H)Accessories
USB 2.0 A to B Cable
5V/2.1A power adaptor
Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
Tally lights
L-bracket
LED matrix panel (optional)Power Consumption
5V max current: ~1.5A
Max power consumption: ~6WWorking Environment
Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
