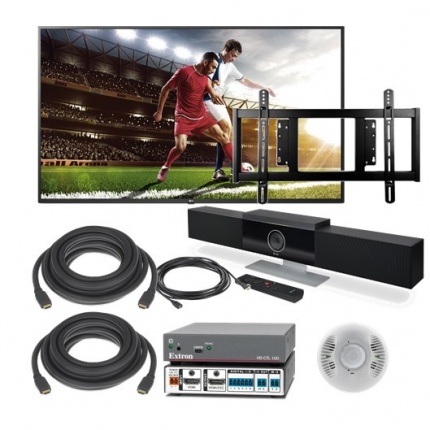

Poly Studio USB Bar Package with Display & Automation System

Polycom Studio USB Video Bar (7200-85830-102)

DIMENSIONS

• Unit dimensions:
- 105 mm x 700 mm x 70 mm =
4.2” x 27.3” x 2.8” (HxWxD) without stand
- 156 mm x 700 mm x 70 mm =
6.2” x 27.3” x 2.8” (HxWxD) with stand
• Weight:
- 5 lbs 2.6 oz (2342 g) without stand
- 6 lbs 4.7 oz (2856 g) with stand
• Remote control dimensions:
- 183 mm x 40 mm x 19 mm =
7.2” x 1.6” x .75” (HxWxD)
APPLICATION REQUIREMENTS
• Supported operating systems
- Windows 7, 8.1, 10
- MacOS 10.12, 10.13, 10.14
• Support for standard audio and video
device drivers
- UAC 1.0 Audio
- UVC 1.1/1.5 Video
- HID 1.11
POWER REQUIREMENTS
• 12VDC/5A @ 100~240VAC, 50/60 Hz
PACKAGE INCLUDES
• Poly Studio
• Remote control with 2 AAA batteries
• Power adapter
• 5 m USB 2.0 cable (Type-C to Type-A)
• Wall mount kit
• Setup sheet
OPTIONAL ACCESSORIES
• Expansion microphone
• Display mount
CAMERA
• 120-degree FOV
• UHD 2160p (4K) capture resolution
• Automatic people framing &
speaker tracking
• 5x zoom / EPTZ
• 2 camera presets
AUDIO
• Poly Acoustic Clarity technology
provides full-duplex conversations,
acoustic echo cancellation and
background noise suppression
• Poly NoiseBlock technology
• Poly Acoustic Fence technology
• Mute/unmute controls
• Stereo microphones:
- 6-element beamforming
microphone array
- 12 ft pickup range
- 120 Hz–16 kHz frequency response
• Stereo speakers:
- 100 Hz–20 KHz frequency response
- Output = 90 dB @ 0.5m
INTERFACES
• 1x USB 3.0 Type-C port
(with 2.0 compatibility)
• Power connector
• Optional external microphone
• 3.5 mm stereo Audio In
• Kensington security lock
• 802.11ac Wi-Fi wireless networking
for manageability; IEEE 802.11a/b/g/n
compatible
• Bluetooth® 4.2
APPLICATION COMPATIBILITY
• Compatible with any application that
supports standard USB audio and video
drivers, including but not limited to:
- Certified for Microsoft Teams and Skype
for Business
- Zoom Certified
- LogMeIn GoToMeeting®
- BlueJeans Network
- Google Hangouts™ communication
platform
- Amazon Chime
- Cisco Webex®
- VidyoDesktop™
- Polycom RealPresence Desktop
SECURITY
• 802.1x support
• Certification management
MANAGEABILITY (VIA WI-FI)
• Polycom Companion App (running on
Win/Mac PC connected to device)
• Polycom RealPresence Resource Manager
• Polycom Device Management Service
WARRANTY INFORMATION
• 1-year limited hardware warranty
COUNTRY OF ORIGIN
• Laos
ENVIRONMENTAL
• Operating temperature: 32–104°F (0–40°C)
• Relative humidity: 5–95%, noncondensing
• Storage temperature: -13–160°F
(-25°–70°C)

LG 55UN731C 55' 4K UHD Commercial Display

Display

Screen Size 70” / 65” / 55” / 50” / 49” / 43”
Resolution 3,840 × 2,160
IPS Panel Yes (Wide Viewing Angle, Except 70” / 65” / 55” / 50” / 43”)
Wide Viewing Angle Yes (Wide Viewing Angle, Except 70” / 65” / 55” / 50” / 43”)
BLU Type Direct

Video
(Picture Quality)

Processor Quad Core Processor 4K
Image Enhancing Image Enhancing
HDR / HDR10 Pro / HLG Active HDR / Yes (4K / 2K) / Yes (4K / 2K) FILMMAKER MODETM Yes HDR Effect Yes (4K / 2K)
Dynamic Tone Mapping / Pro HDR Dynamic Tone Mapping
Dimming Algorithm LG Local Contrast
Upscaler 4K Upscaler
Picture Mode 10 Modes (Vivid, Standard, Eco, Cinema, Sports, Game, HDR Effect, Filmmaker, (ISF) Expert (Bright Room, Dark Room))

Audio

Sound Output 20 W (10 W per Channel)
Channel 2.0 ch
Direction Down Firing
Surround Mode Ultra Surround
Bluetooth Surround Ready Yes (Bluetooth Required)
LG Sound Sync Yes (Bluetooth Required)
Auto Notification (Bluetooth Easy Paring) Yes (Bluetooth Required)
Sound Share Yes

Broadcasting
System

Digital TV Reception (Terrestrial, Cable, Satellite) DVB-T2, DVB-C (VH Only), -
Analog TV Reception Yes

AI Function

ThinQ, Intelligent Voice Recognition, Speech to Text, LG Voice Search, Google Assistant, Amazon Alexa, AI UX, AI Home, AI Recommendation,
Intelligent Edit, Home Dashboard, Auto Device Detection, Smart Speaker Compatible, Google Home Connection, Amazon Echo Connection,

LG ThinQ Hub Device, LG Smart Speaker (WK7, WK9), Mobile Connectivity, ThinQ App

Smart Feature

webOS Smart TV, Number of CPUs (Quad,) Magic Remote Control (Built-In), Quick Access, Universal Control, 360° VR Play, Related Content Search,
LG Store, DIAL, Web Browser, Music Player, TV On with Mobile, Wi-Fi TV On, Bluetooth Low Energy On, Network File Browser,
Block Access to Harmful Site, Live Plus (ACR-based Bilateral Service (webOS5.0 : Australia (Asia))), Hotel Mode, Sports Alert, Music Discovery

Connectivity

Screen Share, HDMI 2.0 (Rear / 2 Side), Features Specified in HDMI 2.1 (HDMI 2.0), Simplink (HDMI CEC), eARC / ARC (Audio Return Channel (ARC (HDMI 2)),
USB (Rear / Side), LAN (Rear), Component (Rear, Component In / AV in Common), Composite In (AV (Rear, Component In / AV in Common)),

RF In (RF), SPDIF (Optical Digital Audio Out (Rear)), Wi-Fi (802.11 ac), Bluetooth (V 5.0)

Dimension W × H × D / Weight (with Stand) Differ by Size, Region W × H × D / Weight (without Stand) Differ by Size, Region W × H × D / Weight (Shipping) Differ by Size, Region

Power & Green

Power Supply AC 100-240 V ~, 50/60 Hz (Differ by Region)
Standby Power Consumption Under 0.5 W
Power Consumption (Max) Differ by Size, Region
Energy Saving Mode Yes
Illuminance Green Sensor Yes
Energy Standard Yes (Differ by Region)
Accessory Remote MR20
Power Cable Yes (TV Detached)

Extron HD CTL 100

Resolution: Up to 4K 60 fps
Frame Rate: 24, 25, 30, 50, or 60 fps
Chroma sampling: 4:4:4, 4:2:2, or 4:2:0
Color bit depth: 8, 10, or 12 bits per color
Signal type HDMI 2.0
Max. video data rate 18 Gbps (6 Gbps per color)

Control — IR/serial control port
IR/S control port (1) 3.5 mm captive screw connector, 2 pole, for unidirectional (transmit only) RS-232 and IR control
IR control ​TTL level (0 to 5 V) modulated infrared control from 30 kHz to 60 kHz
Serial control ±5 V RS-232 control
Baud rate and protocol (RS-232) 9600 (default), 19200, 38400, 57600, or 115,200 baud
8 (default) or 7 data bits
1 stop bit
No parity (default), or even or odd parity

Control — CEC
HDMI Connector 1 female HDMI, type A
CEC control via pin 13

Control — Digital inputs and outputs
Number/type 4 digital inputs/outputs (configurable)
Connector (2) 3.5 mm captive screw connectors, 3 pole
Digital inputs/outputs
Input voltage range 0-24 VDC
Input impedance 10K ohms
Programmable pullup 1K ohms to +5 VDC
Threshold low to high >2.0 VDC
Threshold high to low 0.8 VDC

+V output
+24 V output port (1) 3.5 mm captive screw connector, 2 pole
Output +24 VDC, 50 mA

Communication — configuration port
USB configuration port 1 female USB mini B, front panel
USB standards USB 2.0, low speed
Program control Extron HD CTL 100 Configuration Program for Windows®
Extron Simple Instruction Set (SIS™)

Video
HDMI input
Connector 1 female HDMI, type A
Horizontal frequency 15 kHz to 270 kHz (for resolutions up to 18 Gbps)
Vertical frequency 24 Hz to 240 Hz (for resolutions up to 18 Gbps)
HDMI output
Connector 1 female HDMI, type A

General
Power supply External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A, 6 watts
Power consumption
Device 2.7 watts
Device and power supply 3.5 watts
Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling Convection, no vents
Thermal dissipation
Device 4.2 BTU/hr
Device and power supply 7.0 BTU/hr
Mounting
Rack mount Yes, with optional 1U rack shelf
Furniture mount Yes, with optional under-desk mounting kit
Enclosure type Metal
Enclosure dimensions 1.0" H x 4.3" (quarter rack) W x 3.0" D
(25 mm H x 109 mm W x 76 mm D)
Product weight 1.0 lbs (0.5 kg)
Regulatory compliance ​CE, c-UL, UL, KC, PSE, RoHs, and WEEE

Extron OCS 100 C

Sensor
InteliDAPT® technology Auto reset from test setting
Self-adjusting timer
Self-adjusting passive infrared thresholds
Automatic false-on and false-off correction
LED lamp Red - infrared motion
Green - ultrasonic detection
Timer timeout
OCS 100C Automatic mode: 8 to 42 minutes (self-adjusts based on occupancy)
Manual mode: 8 to 42 minutes
Test mode: 8 seconds
OCS 100W Automatic mode: 4 to 30 minutes (self-adjusts based on occupancy)
Manual mode: 4, 8, 15 and 30 minutes
Test mode: 8 seconds
Ultrasonic (US)
OCS 100C 4 sensors - 32 kHz output
OCS 100W 2 sensors - 32 kHz output
Passive infrared (PIR)
OCS 100C Dual-element pyrometer and 12-element cylindrical segmented Fresnel lens, integral filter excludes excess PIR energy from sunlight
OCS 100W Dual-element pyrometer and 12-element cylindrical rugged lens

Relay
Relay 1 Normally Open and Closed contact, single pole, double throw 500 mA rated at 24 VDC, three-wire isolated relay

Photocell
Photocell Adjustable natural-light override ranges from 1 to 100 foot-candles (10 to 1000 Lux)

Adaptive functions
Learning 4 weeks for response error conditions, air current adaption and timer optimization
Post-learning occupancy periods 24-hour circadian occupancy periods learned
Adjustments in post-learning period Generally occupied periods
Generally unoccupied periods

Digital output
Quantity/type 2 digital outputs
Connectors Blue wire = Occupancy only
Gray wire = Occupancy + Photocell
Output voltage range 0 - 24 VDC
Active high logic control signal with short-circuit protection, open collector when unoccupied

General
Sensor power input requirements: 20-24 VDC, 33 mA nominal
NOTE: If power is supplied by an optional 12 VDC power supply, then use the included PC 1224 to convert 12 VDC to 24VDC.
PC 1224 power requirements Input: 12 VDC, 1.5 A max
Output: 12 VDC, 1.25 A max
24 VDC, 75 mA max
Wiring Color coded, pre-stripped leads - 6" (15 am) in total length
Temperature/humidity Operation: +32 to +104 °F (0 to +40 °C) / 0% to 95 %, noncondensing
For indoor use only
Cooling Convection, no vents
Mounting Mounting base provided
Recommended mounting height: 8 feet with a max mounting height of 12 feet
Enclosure type Plastic
Enclosure dimensions
OCS 100C 4.50" W x 1.40" D
(114 mm W x 36 mm D)
Product weight: 0.1 lb (0.1 kg)
Color:  Off-white
Regulatory compliance: CE, c-UL, UL, FCC Class A
Complies with appropriate requirements of RoHS, WEEE, and California Title 24

These coverage dimensions are achieved when the OCS 100C is installed 10 ft (3.04 m) for the coverage area of 2000 sqf.
