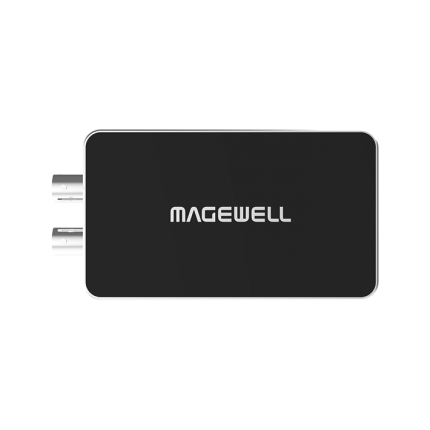

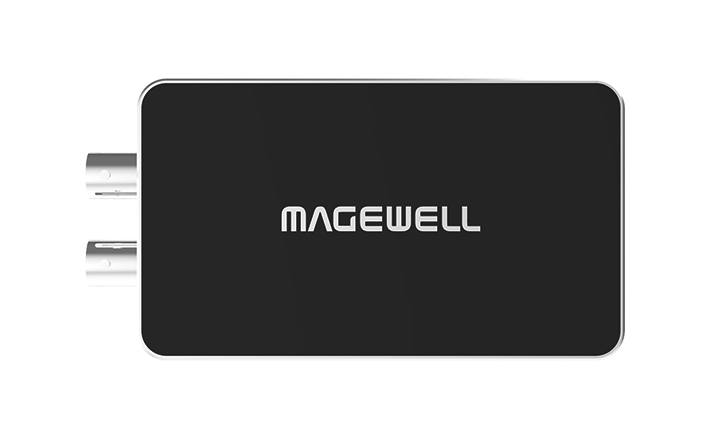

The Magewell USB Capture SDI Plus is a one-channel 2K capture device that interfaces with your computer via USB 3.0. It features loop-through BNC input/output that allows you to see your video on a downstream device, while you are capturing it into your computer. It also has a line-in audio input, for capturing audio directly, without picture, or you can de-embed the audio from the SDI stream.
It also features a plug and play function and also includes an extra line in/out.
Video Processing
-Video processing pipelines with 160MP processing bandwidth
-Video cropping
-Video scaling
-Video de-interlacing
-Weave
-Blend top & bottom field
-Top field only
-Bottom field only
-Video aspect-ratio conversion
-Auto or manual selection of input aspect ratio
-Auto or manual selection of capture aspect ratio
-Three aspect-ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)
-Video color-format conversion
-Auto or manual selection of input color format & quantization range
-Auto or manual selection of capture color format, quantization range & saturation range
-Support for RGB, YCbCr 601, YCbCr 709 color formats
-Support for Limited or Full quantization range
-Support for Limited, Full & 'Extended gamut' saturation range
-Video frame-rate conversion
-Vertical flip and mirrorMultiple Devices on One Computer
Support for connecting multiple USB devices to one system
Support for setting the device serial number as the device name shown in the system using USB Capture UtilitySDK
The USB Capture SDK provide functions including signal status extraction and capture configuration
LED Indicator
Status LEDs indicate the working state of each channel:
Pulsing slowly: idle
On: input signal locked
Off: input signal unlocked
Double blinks: memory failed or FPGA configuration failedMagewell 32050 Specs
Supported OS
Windows: 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
Linux: (Ubuntu 12.04-16.10, CentOS 7)
OS X: 10.9-10.11
macOS: 10.12
Chrome OSSupported APIs
Windows
DirectShow
Wave API/DirectSound/WASAPI
Linux
V4L2
ALSA
OS X/macOS
QuickTime
AV FoundationSupported Software
VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any Other DirectShow, V4L2, QuickTime, AV Foundation Based Encoding, or Streaming SoftwareInput Interface

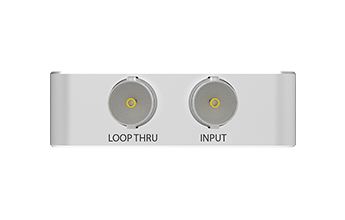

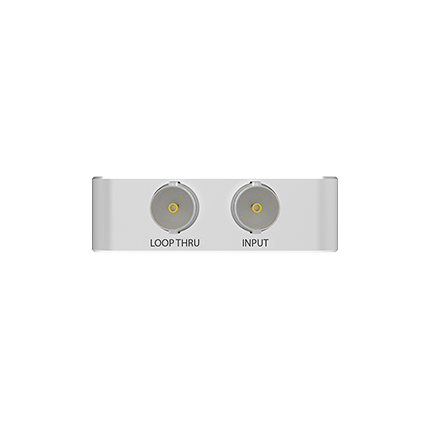

SD/HD/3G-SDI: 1 x BNC

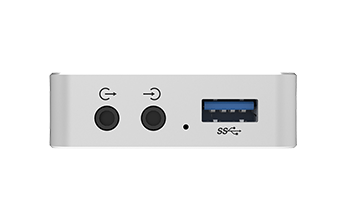

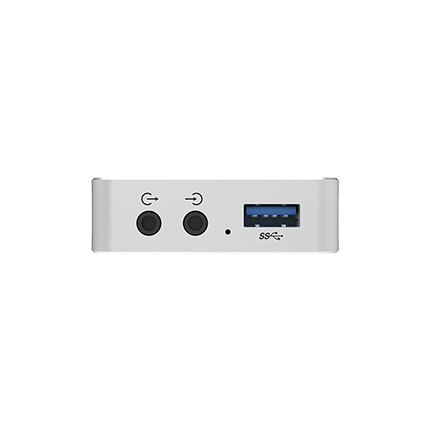

Unbalanced Line-In: 3.5 mm JackOutput Interface
Loop-Through: 1 x BNC
Unbalanced Line-Out: 3.5 mm JackHost Interface
USB 3.0: Compatible with USB 2.0/3.1
Input
Resolution
Supports up to 2048 x 1080SDI Specific Features
Integrated Cable Equalizer Supporting Cable Lengths up to 459' / 140 Meters for 3G-SDI SignalsSupport for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS Standards
Support for 2K (2048×1080) Mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 Color Sampling
Support for 10/12-bit Color Depth
Support for extraction of SMPTE 352 Payload Identifier
Support for up to 2 (Mono) Audio Channels at 48 kHzSupport for Extraction of Audio Formation Information & Channel Status Data
Limited Support of 3Gb-DS: Only the First Stream Can Be Captured
Limited Support for Capture of the First Link of Dual-Link Interfaces:
YCbCr 4:2:2 10-Bit 1080p 50/59.94/60: Captured as 1080i 50/59.94/60
YCbCr 4:4:4 10-Bit: Captured as 4:2:2
RGB 4:4:4: R/B Sub-SampledAnalog Audio
Extract the Embedded SDI Audio and Output via 3.5 mm Unbalanced Line Out
Capture Analog Audio via 3.5 mm Unbalanced Line-In InterfaceVideo Capture Format
Support for Capture Resolutions up to 2048×1080
Support for Capture Frame Rates up to 120 fps (Actual Capture Frame Rate Can Be Limited by the USB Bandwidth and Internal Working Frequency. Typical Capture Frame Rates on the Intel USB 3.0 Controller are as Follows:)
1920×1080 YUY2 (up to 70 fps)
1920×1080 RGB24 (up to 60 fps)
Support for YUY2 & UYVY4:2:2 8-Bit
Support for RGB24 & RGB32 4:4:4 8-Bit
The Default Capture Format Is YUY2
More Capture Format Can Be Set Using USB Capture UtilityPower Consumption
5 V Max Current: ~0.5 A
Max Power Consumption: ~2.5 WEnvironment
Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -4 to 158°F / -20 to 70°C
Relative Humidity: 5 to 90% Non-Condensing
Dimensions 4.36 x 2.24 x 0.67" / 11.07 x 5.68 x 1.7 cm
