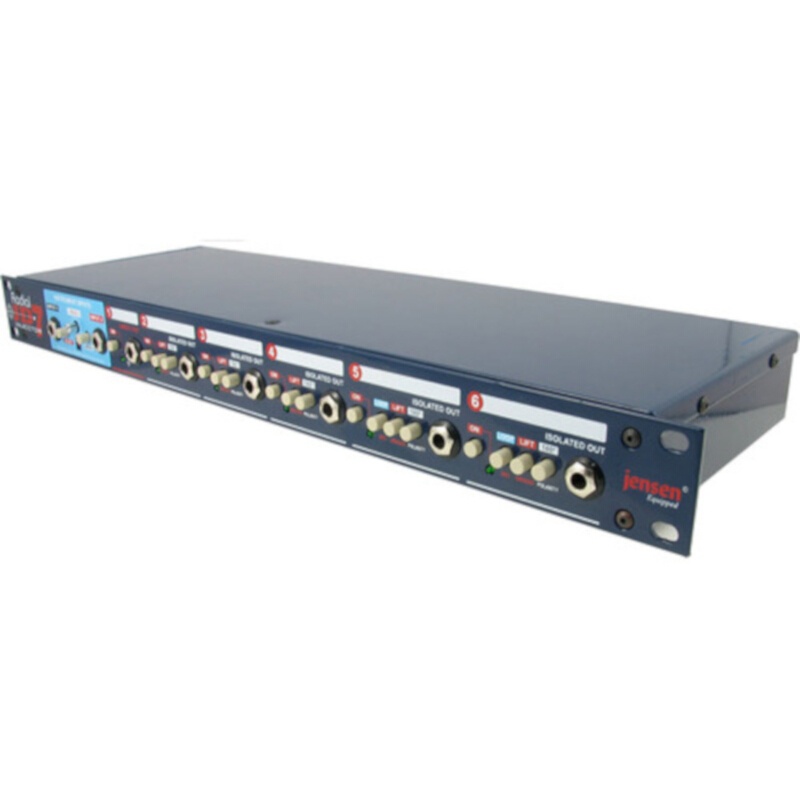

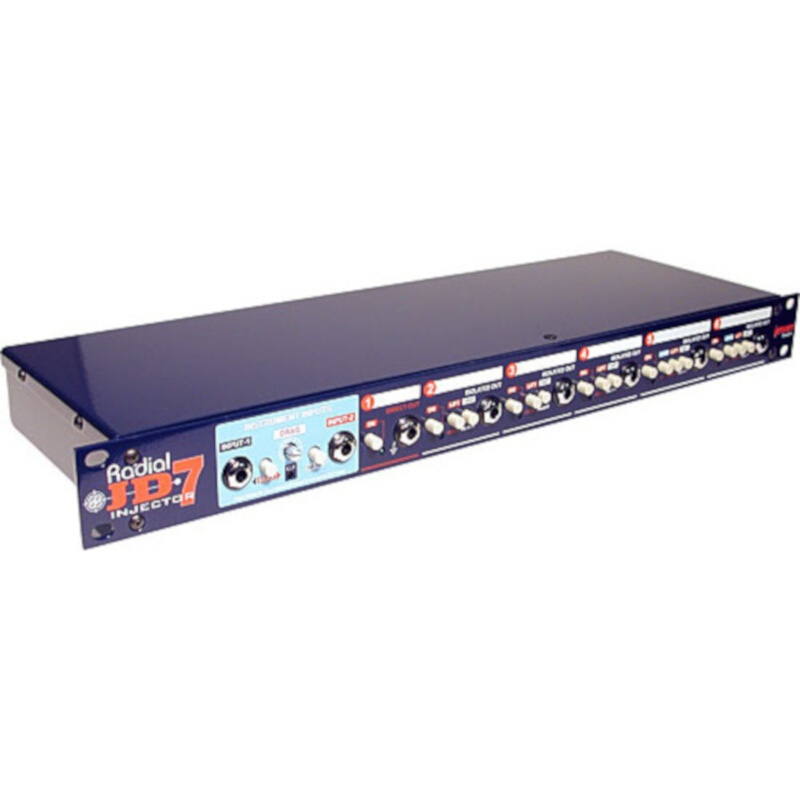

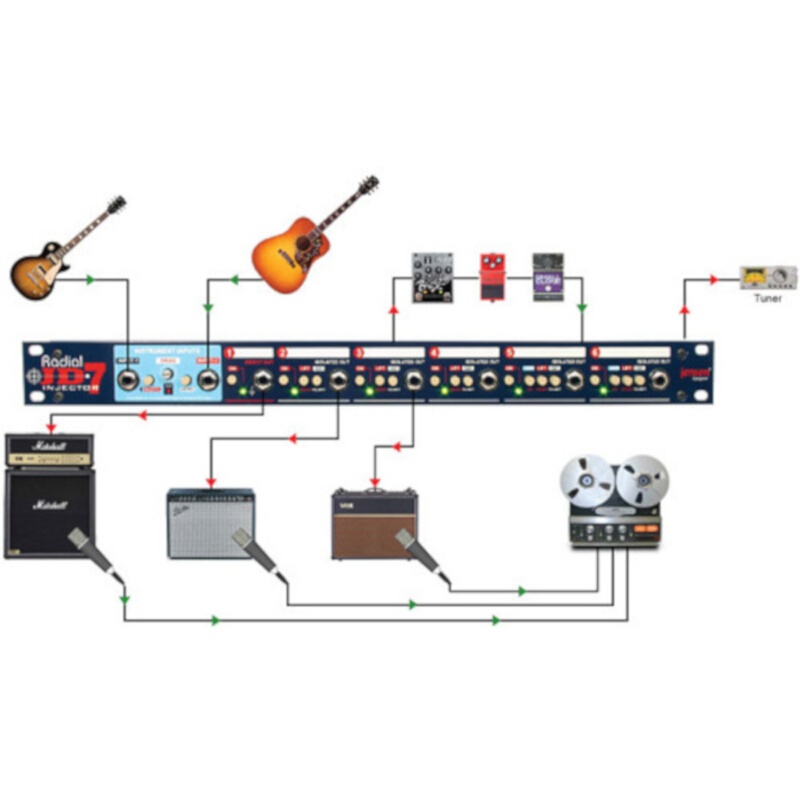

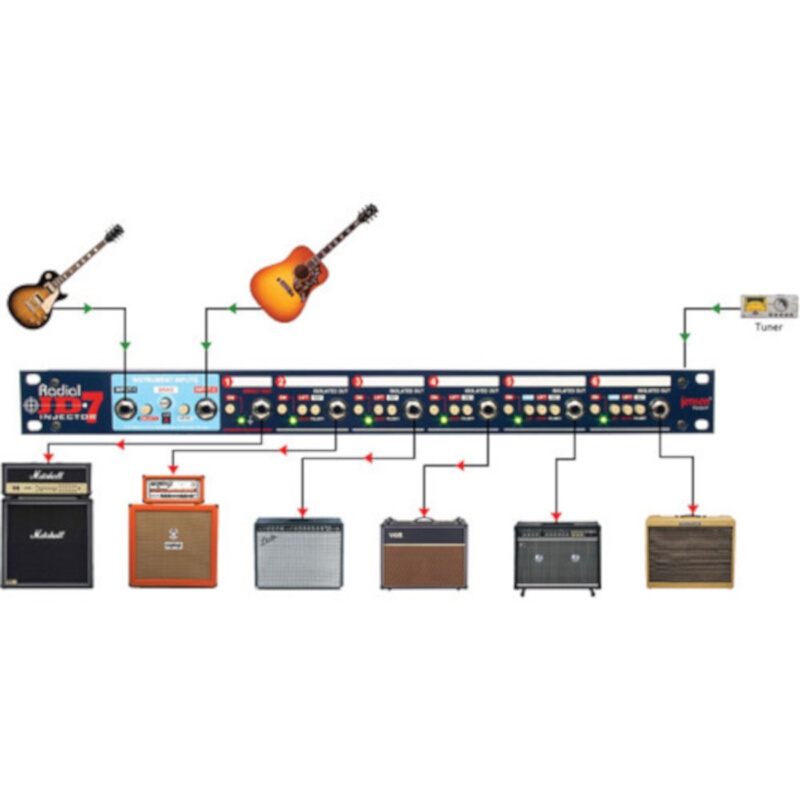

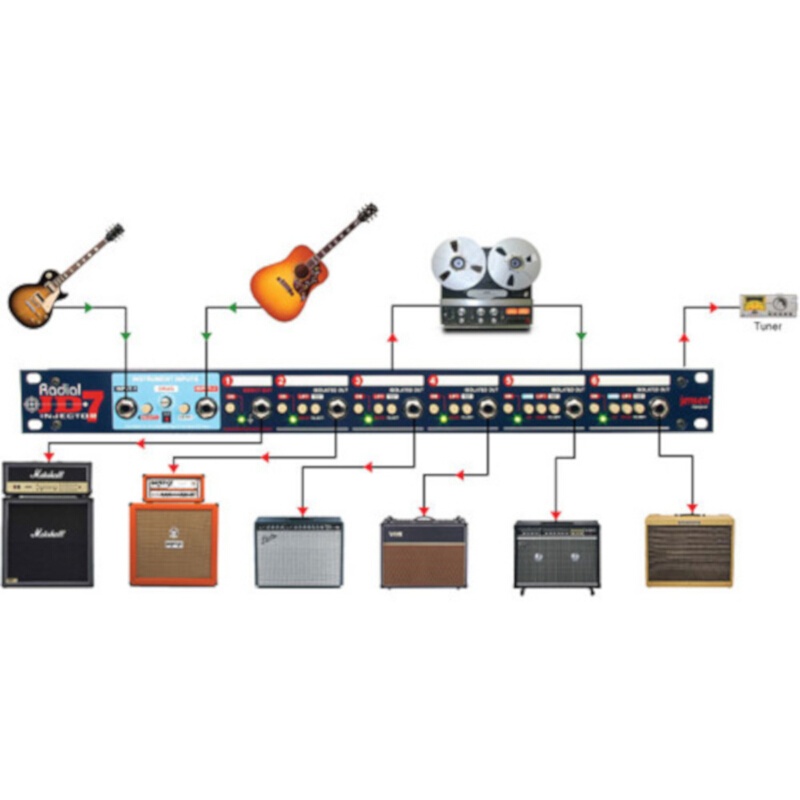

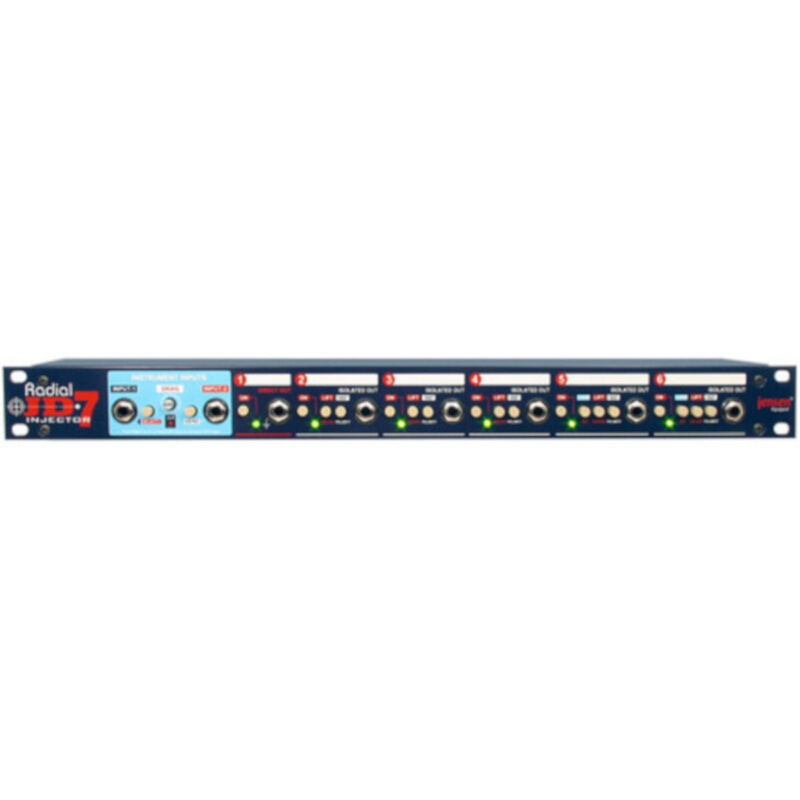

The JD-7 Injector from Radial Engineering is not just a guitar distribution amplifier. It is a creative recording tool designed for driving up to seven amplifiers simultaneously from a single guitar signal. Front-panel connectors and controls make it easy to select amplifiers, ground paths, and polarity. The JD-7 produces extremely accurate sound thanks to a Class-A audio path that is 100% discreet and optimized for electric guitar signals.

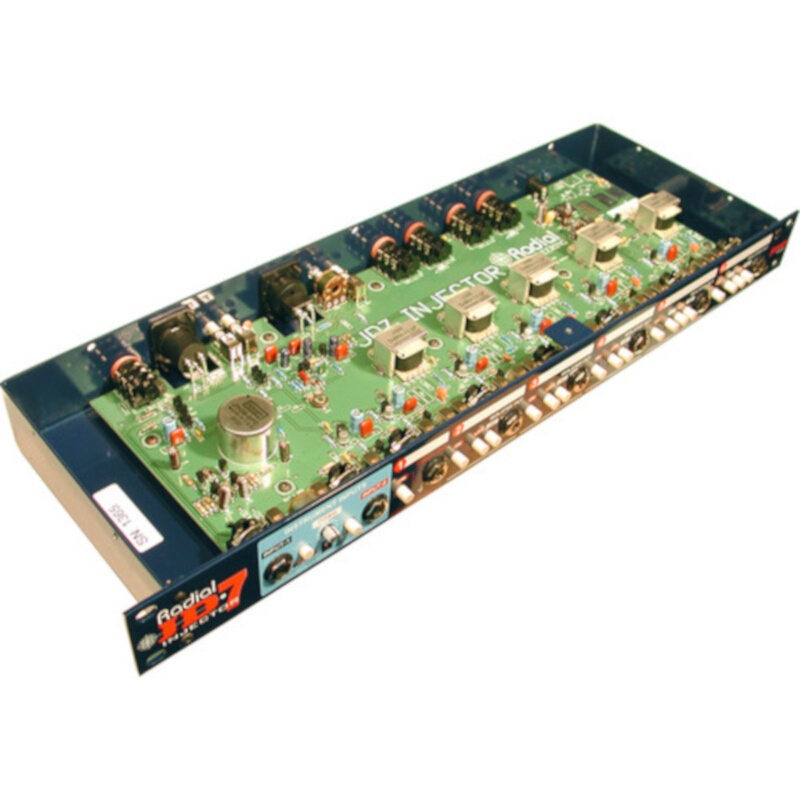

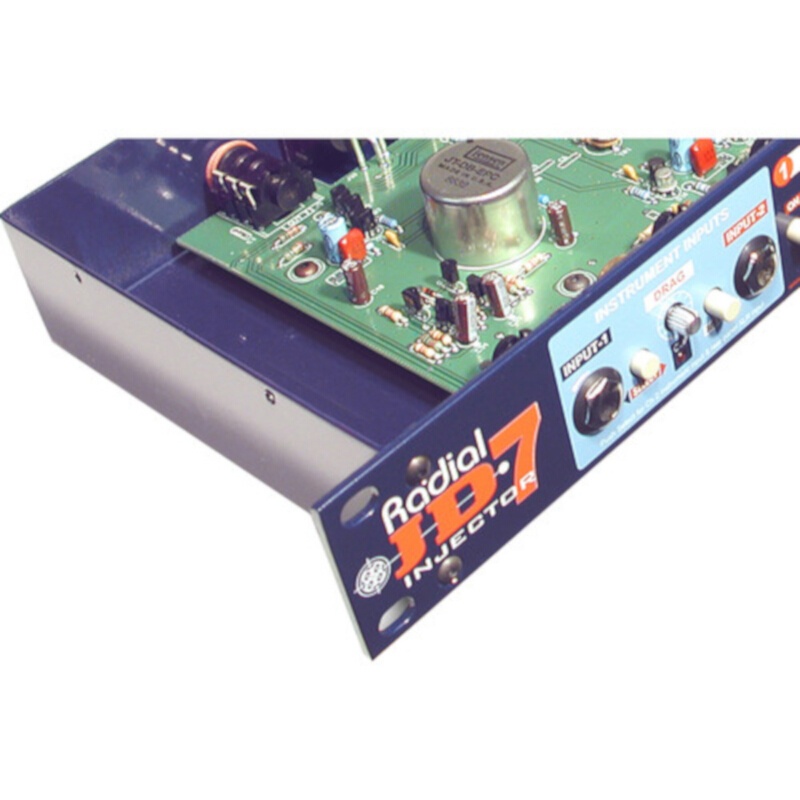

Jensen transformers are used in the JD-7 to reduce hum and minimize signal degradation. A 600 ohm direct output allows recording of a dry guitar track or lets you use the JD-7 as a direct box. A pre-recorded track can be delivered to the balanced input for driving amplifiers, effect pedals, and other devices.
FEATURES:
One-in, seven-out guitar signal router
Intuitive front-panel operation
Accurate, natural sound with minimized hum
Drag(TM) control recreates the guitar-to-amp relationship
Balanced I/OsRadial Engineering JD-7 Specifications:
Inputs 2 x Selectable 1/4" (6.3mm) Inputs (8dB Pad on Input 2)
1 x Balanced XLR Input
Outputs 5 x Transformer-Isolated 1/4" (6.3mm) Output Jacks
2 x Direct 1/4" (6.3mm) Jacks
1 x Mic-Level Balanced XLR
Frequency Response 20Hz - 20kHz
Total Harmonic Distortion (THD) Less than 0.1%
Controls Front Panel 2 x Input Selector Switches
1 x Drag Control
6 x Output On/Off Switches
5 x Ground-Lift Switches
5 x Polarity Switches
2 x Effects Loop Switches

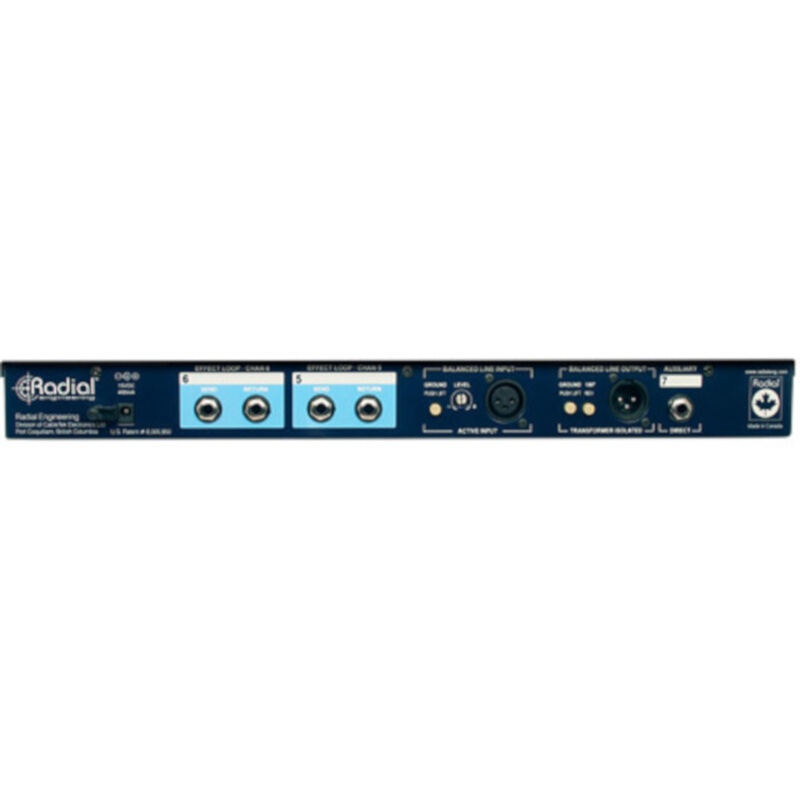

Controls Rear Panel 1 x Input Level Control
2 x Ground-Lift Switches
1 x Output Polarity Switch
Power 15VDC
Dimensions (WxDxH) 17.5 x 6 x 1.75" (445 x 152 x 44 mm)
Weight 8 lbs (3.6 kg)
