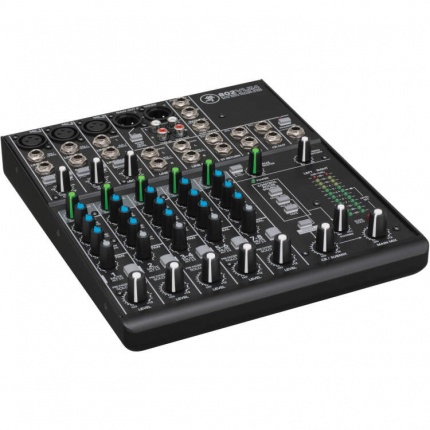

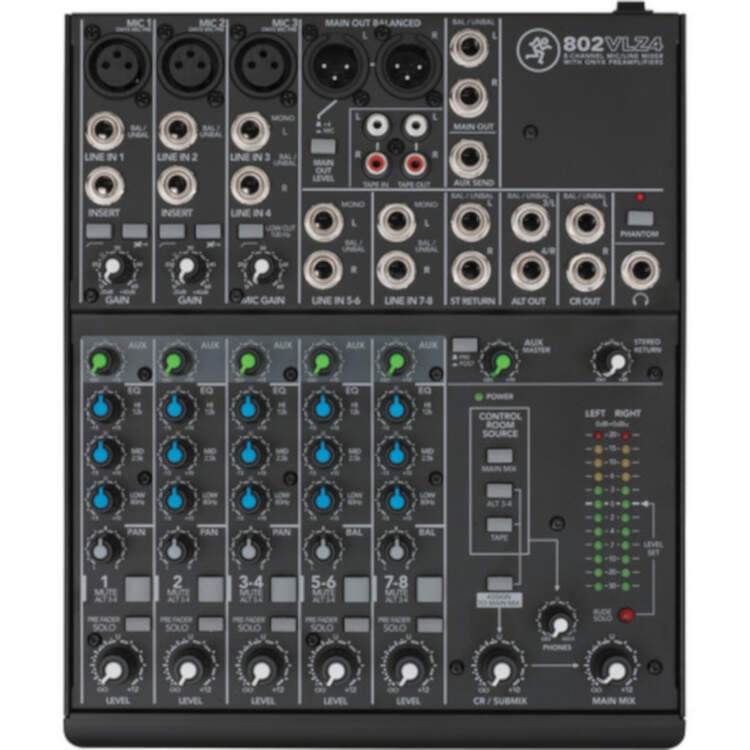

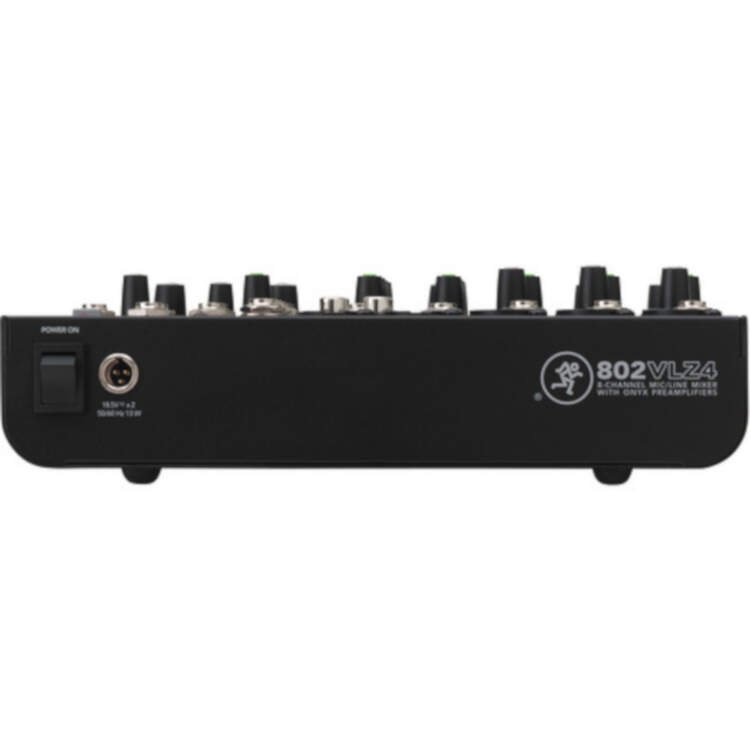

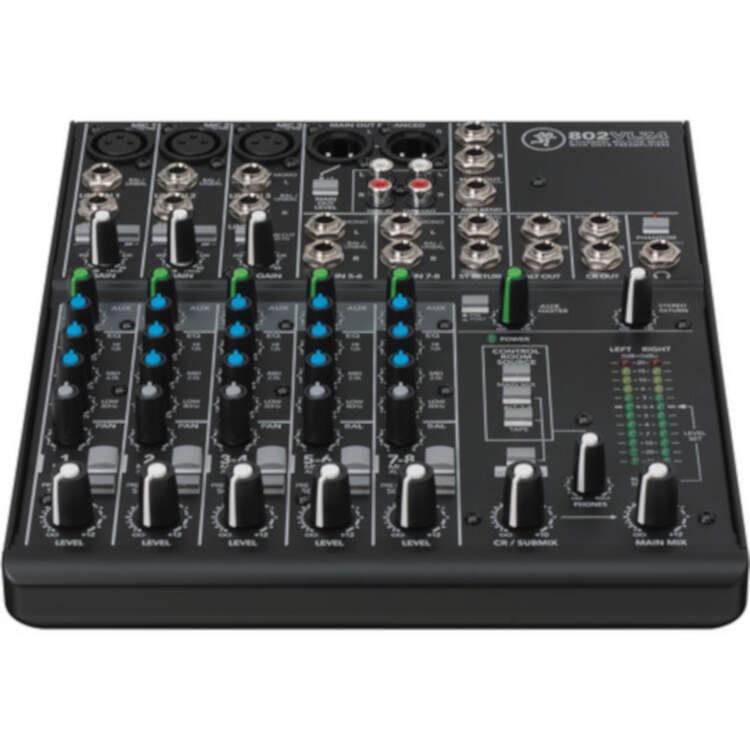

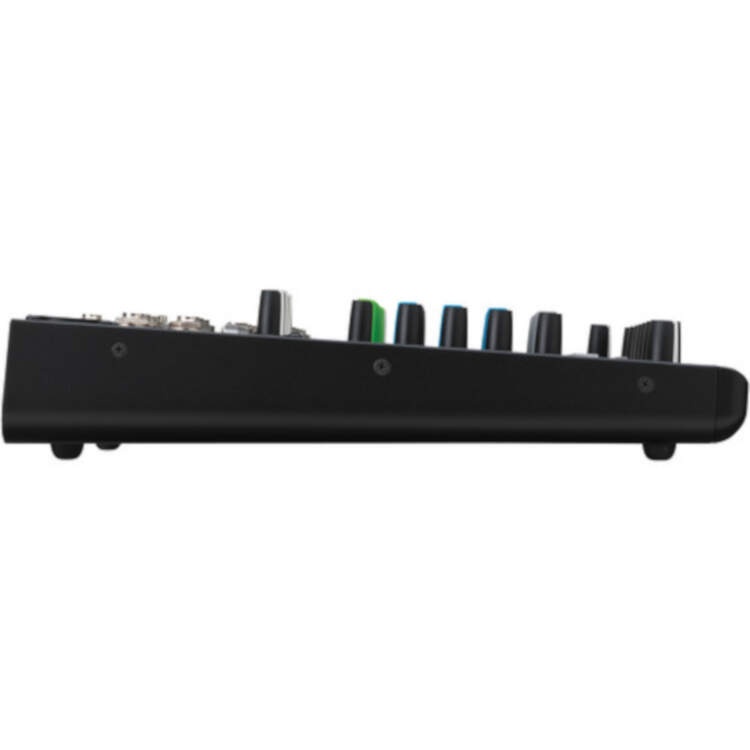

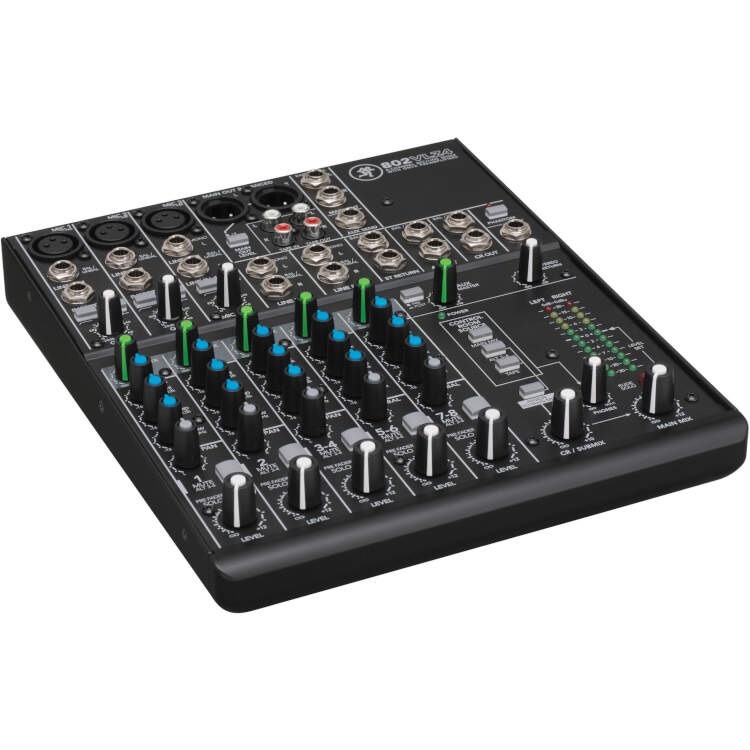

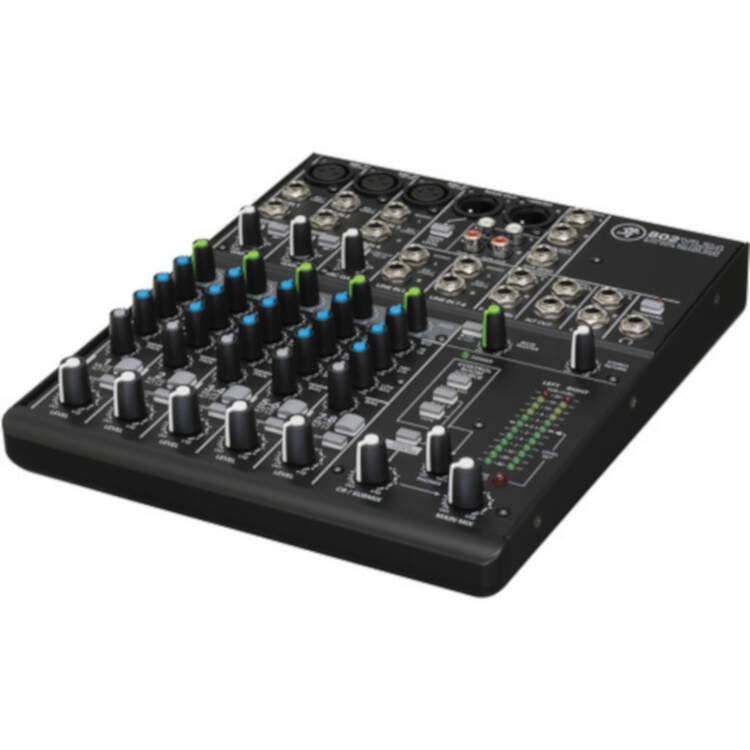

The Mackie 802VLZ4 8-Channel Ultra-Compact Mixer features Onyx microphone preamps in a desk-friendly, ultra-compact design, suitable for professional applications with a lower input need. From every input to every output, the mixer is designed to provide the highest headroom and lowest noise possible for maximum signal integrity.
The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. With features like instrument level inputs, phantom power, and level metering, the 802VLZ4 offers a true step-up performance and durability that is suitable for your professional applications.
8-Channel mixer featuring high-headroom, low-noise design
3 Boutique-Quality Onyx Microphone Preamps:
Wide 60 dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20 Hz to 50 kHz)
Improved RF rejection, suitable for broadcast applications
Phantom power for condenser microphones
Eight high-headroom line inputs
Selectable instrument inputs on first 2 channels; no DI box needed
3-Band EQ (80 Hz, 2.5 and 12 kHz)
18 dB/octave 100 Hz low-cut filter on microphone input channels
AUX send, level, pan, and PFL solo on each channel
Stereo return for connecting FX processor or other stereo source
ALT 3/4 stereo bus for added routing flexibility
Control room / phones source matrix
High-resolution 12-segment stereo meters
Sealed rotary controls resist dust and grime
Built-like-a-tank rugged steel chassis with powder-coat finish
High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
Universal power supply for worldwide use
Applications: Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, multimedia applications, broadcast, and many moreMackie 802-VLZ4 Specifications:
Noise Main Mix Noise:
Main Mix Knob Down, Channel Level Knobs Down:
XLR: -95 dBu
TRS: -101 dBuMain Mix Knob at Unity, Channel Level Knobs Down:
XLR: -90 dBu
TRS: -96 dBuMain Mix Knob at Unity, Channel Level Knobs at Unity:
XLR: -84 dBu
TRS: -90 dBu(20 Hz to 20 kHz bandwidth, channels 1 to 3 gain at unity, channel EQs flat, all channels assigned to main mix, channel 1 panned left, 2 panned right, 3 to 8 centered)
Total Harmonic Distortion (THD) Microphone Pre at Insert: 0.001%
(1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth)
Crosstalk / Attenuation Main Mix Knob Down: -75 dBu
Channel Alt / Mute Switch Engaged: -100 dBu
Channel Level Knob Down: -100 dBu
(1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain at unity)
Frequency Response Microphone Input to Main Output (Gain at Unity):
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, 100 kHz
Equivalent Input Noise 150 Ohms; Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone input to insert send out, maximum gain
Common Mode Rejection Ratio Better than -70 dB at 1 kHz
Maximum Level Microphone In: +21 dBu
Tape In: +22 dBu
All Other Inputs: +22 dBu
Main Mix XLR Out: +28 dBu
All Other Outputs: +22 dBu
Impedance Microphone In: 2.55 kOhms
Channel Insert Return: 5 kOhms
All Other Inputs: 17 kOhms or greater
Tape Out: 1 kOhm
Phones Out: 60 Ohms
All Other Outputs: 120 Ohms
Equalizer High Shelving: ±15 dB at 12 kHz
Mid Peaking ±15 dB at 2.5 kHz
Low Shelving: ±15 dB at 80 Hz
Power Consumption 13 W, 100 to 120 VAC, 50 to 60 Hz
Power Supply External (AC Connector): 2-Pin IEC 250 VAC
Operating Temperature 32 to 104°F (0 to 40°C)
Dimensions (H x W x D)10.7 x 8.9 x 1.8" (273.0 x 227.0 x 47.0 mm)
Weight5.5 lb (2.5 kg) with power supply
4.5 lb (2.0 kg) without power supply
