Shure SLXD4D Dual-Channel Digital Wireless Receiver

The Shure SLXD4D is a dual-channel digital wireless receiver compatible with all SLX-D transmitters and housed in a rugged single-rack chassis with two removable antennas. It is ideally suited for rackmounting in portable flight cases and long-term installations for small- to medium-sized venues, event spaces, conference rooms, houses of worship, and education facilities.

The system delivers crystal-clear, 24-bit digital audio with a wide dynamic range for natural vocal reproduction to presenters, vocalists, clergy, lecturers, and performers. It operates in the UHF band and uses Digital Predictive Switching Diversity technology to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.

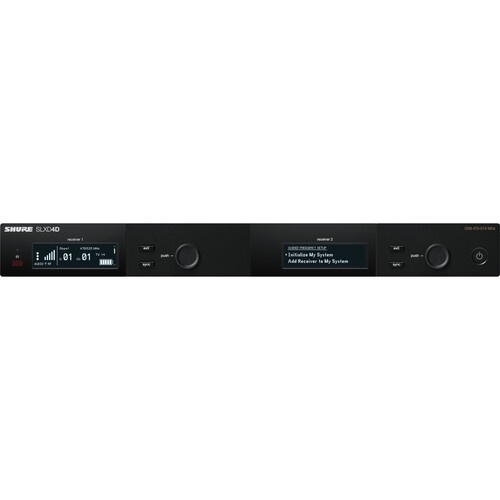

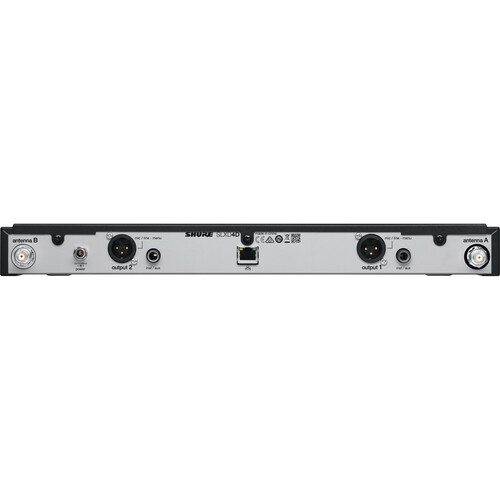

The all-metal rackmount SLXD4D receiver offers intuitive LCD interfaces with meters for RF and audio output. It also offers 60 dB of gain control, and both mic/line XLR and 1/4" instrument outputs for each channel. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.

You can run up to 32 mics simultaneously in the same space. Setting up multiple systems is made quick and easy via the Ethernet port which allows you to execute a coordinated frequency scan for all the connected receivers from a single location.

Transparent Digital Sound, Dependable Performance, and More Mics

• The SLX-D delivers 24-bit digital audio with a fast transient response and over 120 dB of dynamic range—resulting in clear, accurate sound.
• Digital Predictive Switching Diversity uses a microprocessor to switch between the two antennas for the cleanest signal—before dropouts occur.
• Low latency makes the system ideal for applications that require live sound reinforcement.
• Spectrum-efficient digital transmission technology allows for up to 32 mics to be used at once.
• Up to 10 compatible systems per 6 MHz TV band and 12 systems per 8 MHz band are supported.
• Ethernet networking saves you time with coordinated group scanning between multiple receivers from a single location; TCPI command streams from third-party companies such as AMX and Crestron are also supported.

tems Included
Shure SLXD4D Digital Wireless Receiver
Rackmounting Hardware
2 x 1/4 Wave Antennas
Shure PS43US 15-VDC Power Supply for Shure Wireless Receivers
