Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and included CI 1 instrument cable suit perfectly for daily use on stage.
Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
Auto scan creates reliable connections with minimal time and effort
134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
2,240 selectable frequencies allow for fine tuning
Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
Raising the bar
Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.
Equidistant Spacing – simpler than it soundsEvolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

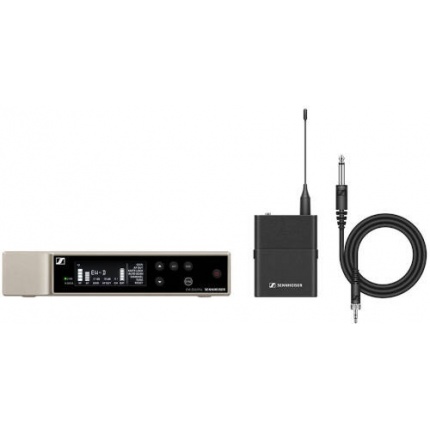

In the Box:
EW-D EM rack receiver
EW-D SK bodypack transmitter
CI 1 instrument cable
2 rod antennas
power supply with country adapters
rackmount set
4 rubber feet
quick guide
safety guide
manufacturer declaration sheetAs Sennheiser Singapore's Official Dealer, the equipment we supply will be supported through the Sennheiser Singapore Service Centre (Carry-in Service)
Specifications
Frequency range
470.2 - 526 MHz
520 - 576 MHz
552 - 607.8 MHz
606.2 - 662 MHz
630 - 662 MHz
662 - 693.8 MHz
823.2 - 831.8 MHz & 863.2 - 864.8 MHz
925.2 - 937.3 MHz
1785.2 - 1799.8 MHz
THD, total harmonic distortion
≤ -60 dB for 1 kHz @ -3 dBfs input level
Operating temperature
-10 °C - +55 °C (14 °F - 131 °F)
Audio frequency response
20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Operating relative humidity
5 - 95 % (non-condensing)
EW-D EM
Dimensions
212 x 44 x 189 mm
Weight
approx. 1000 g (without antennas and power supply)
Current consumption
≤ 300 mA
Audio output level
18 dBu max.
Transmission power
BLE: max. 10 mW EIRP
Input voltage range
11 - 13 V ⎓
EW-D SK
Dimensions
63 x 80 x 20 mm (without antenna)
Weight
approx. 120 g
Power supply
2 AA batteries 1.5 V (alkaline manganese)
or BA 70 rechargeable battery pack
Current consumption
300 mA
Input voltage range
2.0 - 4.35 V
Transmission power
Audio link: 10 mW
ERP (Range Y1-3): 12 mW ERP
BLE: max. 10 mW EIRP
