CM41
CM41: Commercial Mixer provides the perfect mixer solution for commercial and industrial applications requiring great sounding distributed audio. CM41 is easy to install and operate – even for non-technical personnel. Simply put, the CM41 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.Easy to Install

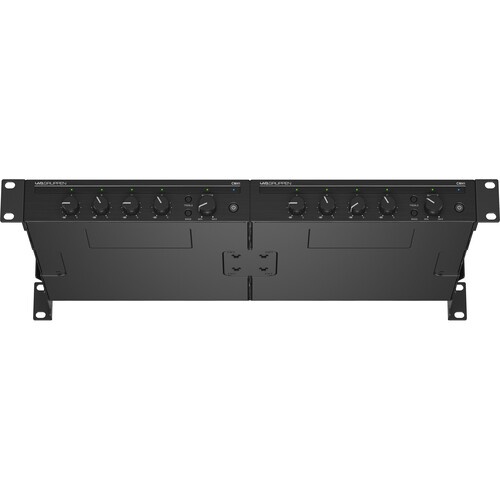

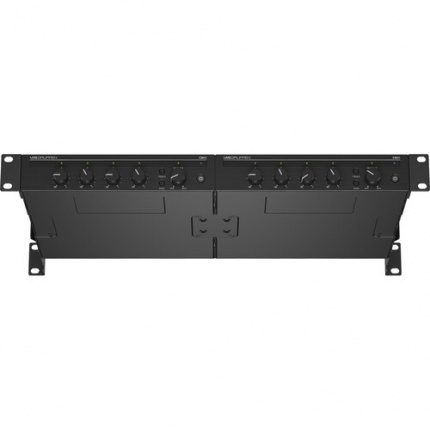

The CM41 comes equipped with rubber feet, enabling the amps to be placed on a desk, shelf or any clear surface without any additional installation requirements. However, optional rack mounting hardware is also supplied, allowing one or several models to be housed and protected inside an enclosure. This adds extensive flexibility as a single product can be housed in a half 19" rack or full rack enclosure as well as a pair of amplifiers can easily be mounted side-by-side in a single rack space. With the included brackets the unit can also be mounted to a wall or under a table/shelf.Sublimely Simple Controls
CM41’s controls are sublimely intuitive, allowing the operator to quickly make adjustments. The front panel power button and Master volume knob are easily accessible, enabling virtually anyone to operate the system. Bass and Treble controls are also available for fine tuning – but require a tool when making changes.In The Box:
Lab.Gruppen CM41 Commercial Mixer
4 x Rubber Feet
Rackmount Kit
Power CordAudio Mixing:
4 Inputs, 1 Output
Audio Inputs:
Mic/Line with Priority/Ducking Input: 1 x 5-Pin Euroblock Connector (Channel A)
Mic/Line with Summed RCA: 3 x 3-Pin Euroblock Connector, 3 x Stereo RCA (Channel B, C, D)Impedance:
Balanced Mic/Line: 20 Kilohms
Unbalanced Line and RCA: 10 KilohmsMaximum Input Level: 4.88 V (+16 dBu)
Microphone Phantom Power: 48 V
Audio Outputs:
Output: 3-Pin Euroblock Connector
Gain Range: ∞ to +10 dB
Output Max Level: 9.6 V (+22 dBu)
Controls:

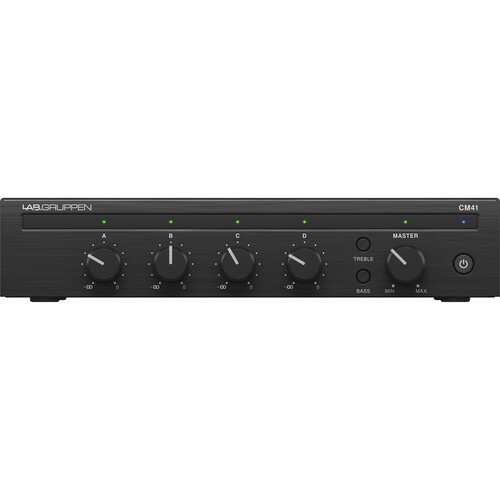

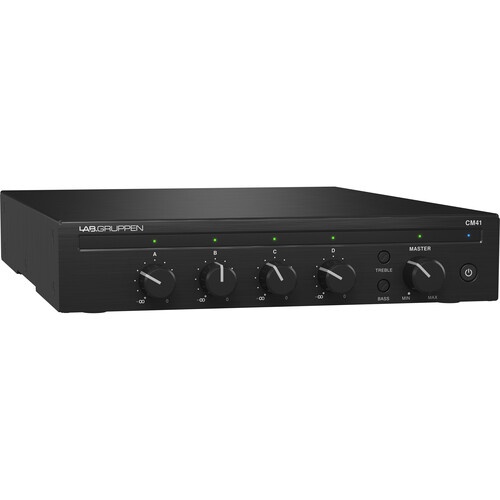

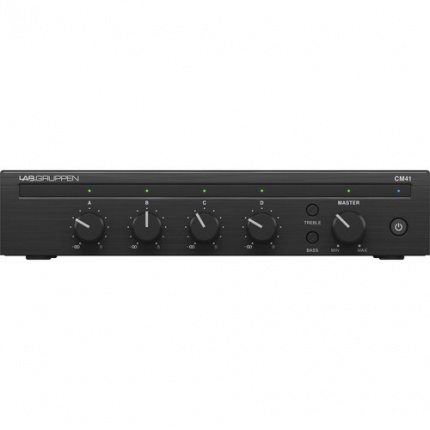

Front: Power Standby Button, Input and Output Gain Control, Tone Controls (Bass and Treble)

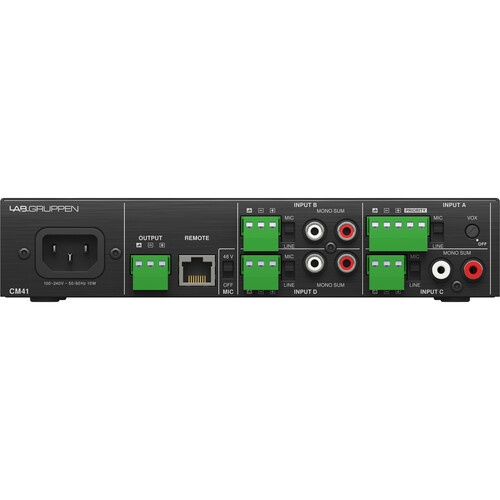

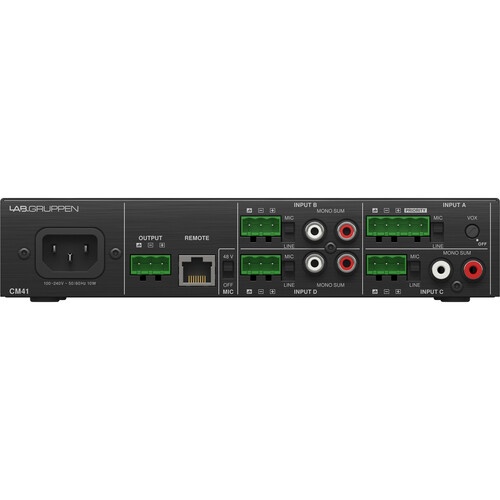

Rear: Mic/Line Switch, Vox/Ducking Threshold Control, Phantom Power
Tone Controls:
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Indicators:
Power: On (Blue), Force Standby (Red), Standby (Yellow)Inputs:
Signal (Green LED): >12.3 mV (-36 dBu)
Clip (Red LED): 4.88 V (+16 dBu)Master
Signal (Green LED): >-50 dBu
Limit (Red LED): 3 V (+12 dBu)
Remote Connection:
RJ45 Ethernet Connector
Distortion:
0.05%
Frequency Response:
20 Hz to 20 kHz, +0.5 / -1 dB
Crosstalk:
>70 dB
Signal-to-Noise Ratio (SNR):
>97 dBA
Enclosure:
Brushed Black Anodized Aluminum Chassis with Black Painted Steel Bottom
Approvals:
CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B
Power:
Main Voltage: Universal 100 to 240 VAC, 50/60 Hz
Fuse: T 3.15 A L 250 V
Power Consumption: 10 W
Mains Connector: Standard IEC Connector
Dimensions:
1.8 x 8.6 x 11.8" / 45.7 x 218.4 x 299.7 mm
Weight:
4.6 lb / 2.1 kgPackaging Info
Package Weight
3 Kg
Box Dimensions (LxWxH)
40 x 31 x 12cm
