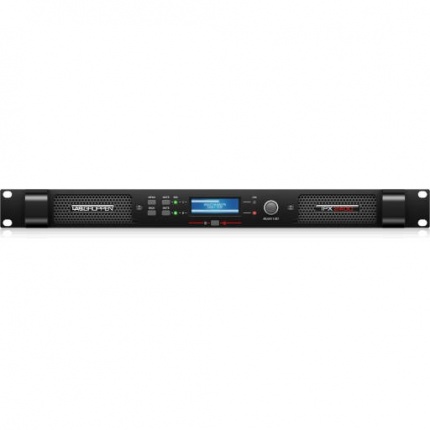

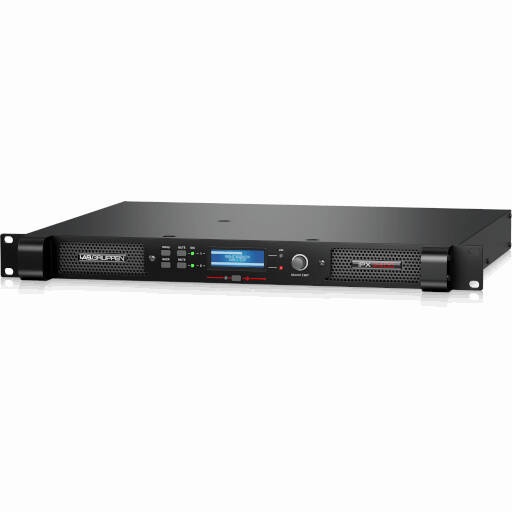

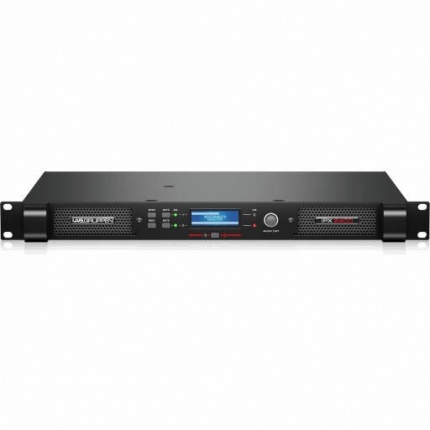

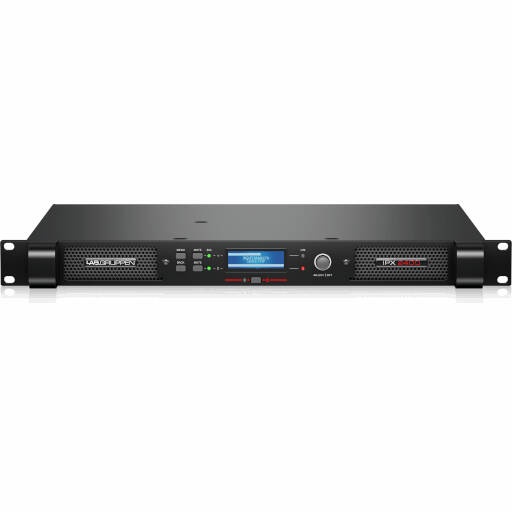

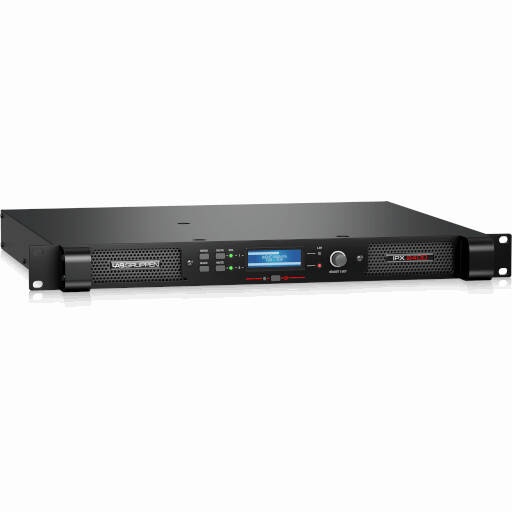

Designed for permanent installations, portable corporate AV systems, or live PA setups, the Lab.Gruppen IPX 2400 is a 1 RU, two-channel 2400W amplifier with high power density and power consumption efficiency. The IPX 2400 is equipped with an innovative DSP engine with up to 40 real-time, multi-slope parametric EQs, adjustable gain, input, and output delay, and both high- and low-pass filters adjustable to any frequency.
The DSP also provides extensive protection for your loudspeaker system by way of the innovative software-controlled Speaker Protect Limiter. Configuration is a breeze, thanks to the IPX Controller software, which is available Windows, Mac, and iPad. The IPX 2400 ships with a power cord and rear-support brackets.
High power density, competitive cost and power consumption efficiency make the IPX 2400 the ideal compact yet powerful amp solution whether it’s for permanent installations, portable corporate AV systems, or live PA setups.
Muscles Meet Mind
Delivering 2 x 1200 W at 4 ohms, the IPX 2400 packs reliable power and performance into a single rack space. But raw muscle power is not enough. At the heart of the IPX platform, you’ll find a cutting-edge DSP engine equipped with up to 40 real-time, multi-slope parametric EQs along with adjustable gain, input and output delay – and both high- and low-pass filters adjustable to any frequency.
The DSP also provides extensive protection for your loudspeaker system in the form of the innovative software-controlled Speaker Protect Limiter. You can configure this with ease from within the IPX Controller software.
Take Control at the Rack or Anywhere

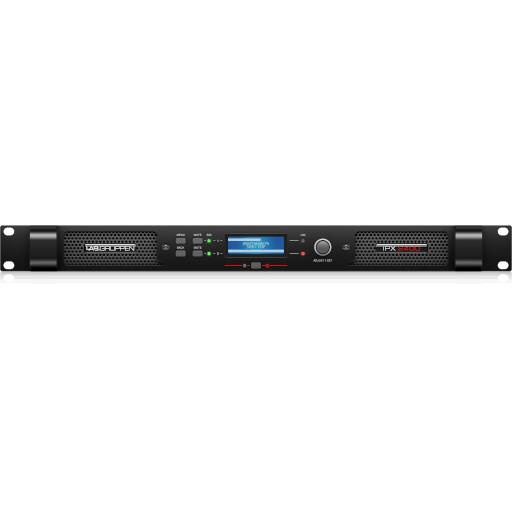

You can access all setup parameters for input mixing, DSP features and limiter settings on the front panel, using two navigation buttons, a rotary encoder, and the backlit display. Individual channel mute buttons are also available and up to 100 user-defined presets may be stored onboard.
In The Box:
Lab.Gruppen IPX 2400 Compact 1200W 2-Channel DSP Controlled Power Amplifier
AC Power Cord
Set of Rear Brackets + Mounting Hardwar
Key Specs
Number of Channels: 2
Amplifier Power Rating: 2 Ohms:800 W Peak Both Channels Driven 4 Ohms:1200 W Peak Both Channels Driven 8 Ohms:600 W Peak Both Channels Driven
Amplifier Class: Class-D
DSP: Yes

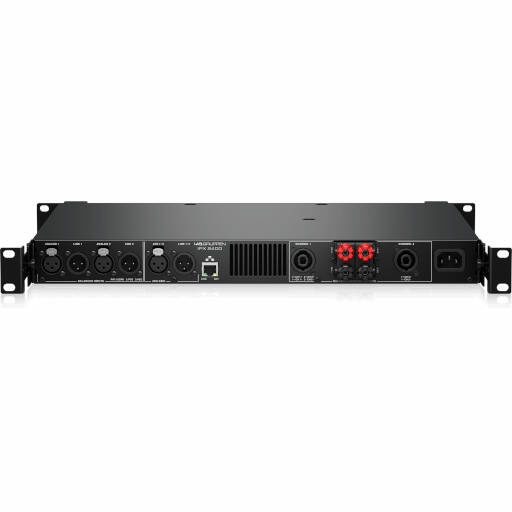

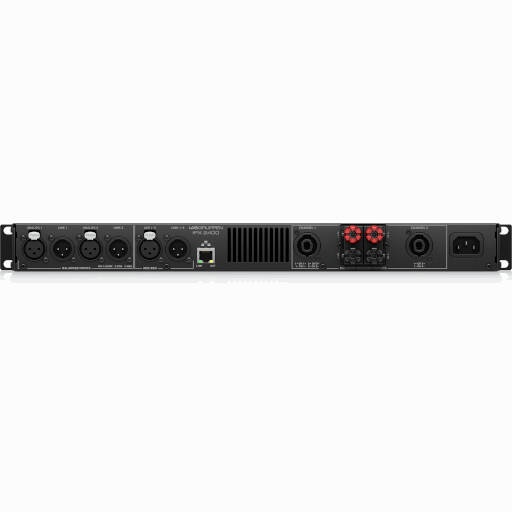

Analog Audio I/O: 2x XLR 3-Pin Female Balanced Line Input 2x XLR 3-Pin Male Balanced Line Thru 2x speakON NL4 Speaker Output 2x Binding Post Pair 1-Pin Speaker
Digital I/O: 2x XLR AES3 Input/Output
Network I/O: 1x RJ45 Ethernet
Rackmount Size: 1 RU
Power
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
AC Power Connector: 1x IEC 15 A / NEMA 5-15
Power Consumption: 500 W
Dimensions: 19.0 x 1.7 x 16.7" / 483.0 x 44.0 x 423.0 mm
Weight: 15.4 lb / 7 kg
