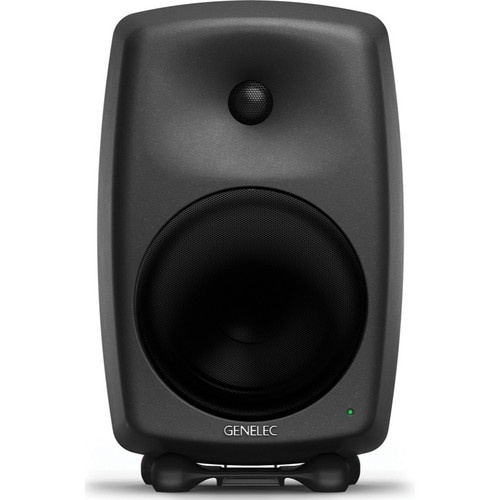

The 8050B Active Two-Way 8" Studio Monitor from Genelec provides an accurate reproduction of the source material in a compact form-factor with high output. Its die-cast aluminum enclosure features a rounded shape, which minimizes distortions caused by edge diffraction. The metal dome tweeter is surrounded by a smoothly-shaped Directivity Controlled Waveguide, which helps to create an even response when listening both on and off axis.
The 8050B is built with Intelligent Signal Sensing (ISS) technology which automatically activates the speaker when an audio signal is detected, and puts it in Standby Mode when no signal is present, reducing the energy consumption to less than 0.5 watts. The 8050B features a 120 watt high frequency amplifier for its 1" tweeter, and a 150 watt low frequency amplifier for its 8" woofer. The bass response is expanded by a rear-facing reflex port, and a separately available Genelec subwoofer can be used to monitor a wider array of frequencies.
- An included Iso-Pod table stand insulates the speaker from vibration and enables you to tilt its position upward or downward
- The Iso-Pod can be attached to the base or side of the monitor, for vertical or horizontal positioning
- Well-suited for near-field studio monitoring, control rooms, editing suites, surround sound applications and multimedia entertainment systems

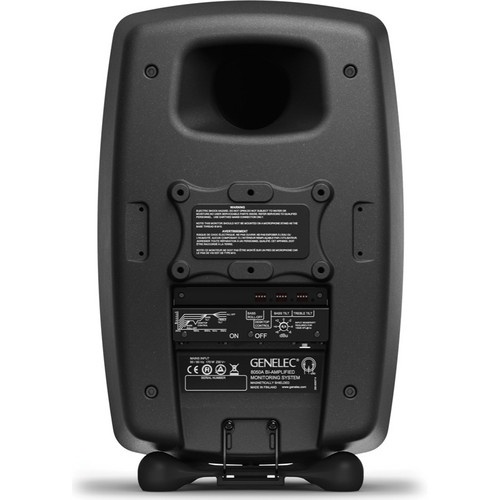

- Rear-facing Tone Controls enable you to optimize the speaker to its environment
- Threaded holes for Omnimount Series 60 brackets and K&M loudspeaker mounts
- More compatible mounting accessories, such as ceiling mounts and wall brackets, are available separately
- Active crossover filters
- Driver unit protection circuitry
- Fully magnetically shielded
Inputs
1x XLR balanced
Frequency Response
38 Hz to 20 kHz (± 2 dB)
35 Hz to 21 kHz (-3 dB)
Crossover Frequency
3.0 kHz
LF Amplifier
150W
HF Amplifier
120W
Maximum SPL
110 dB
Low Frequency Driver
8" (205 mm)
High Frequency Driver
1" (25 mm) metal dome
Controls
Sensitivity Adjustment Dial
Power Switch
Tone Controls:
Treble Tilt (Off, -2 dB, -4dB, +2 dB @ 15 kHz)
Bass Tilt (Off, -2 dB, -4 dB, -6 dB @ 100 Hz)
Bass Roll-Off (Off, -2 dB, -4 dB, -6 dB @ 35 Hz)
Desktop Control (-4 dB @ 160 Hz)
Mounting Options
Tabletop (with included Iso-Pod)
Four 0.24 x 0.39" (6 x 10 mm) threaded holes for Omnimount Series 60 brackets and K&M loudspeaker mounts
Enclosure Material
Die-cast aluminum
Power Supply (AC)
120V
Voltage Range
±10%
Power Consumption
Idle: 10W
Standby: 0.5W
Full Output: 170W
Dimensions
With Iso-Pod: 17.8 x 11.3 x 10.9" (452 x 286 x 278 mm)
Without Iso-Pod: 17.1 x 11.3 x 10.9" (433 x 286 x 278 mm)
Weight
28 lb (12.7 kg)
