The VC-C101U-ETH converts 4K@60Hz 4:4:4(max) DisplayPort alt mode signal over USB-C video input to 4K@60Hz 4:4:4(max) HDMI 2.0 video output. For the USB-C input interface, it also supports USB 3.1 Gen2 data transfer, Gigabit LAN and 60W fast-charging. The VC-C101U-ETH can be used to upgrade an existing HDMI installation to support USB-C sources and at the same time add functionality. The converter includes three USB 3.1 device ports and one Ethernet Gigabit LAN port.
The VC-C101U-ETH can also be used as an install friendly docking device providing a single cable solution for workstations in an office.
Features
- Input supports DisplayPort Alt mode up to 4K@60Hz 4:4:4 using DisplayPort 1.4 (DisplayPort 1.2 is limited to 4K@30Hz 4:4:4).
- Output supports HDMI 2.0, 4K@60Hz 4:4:4.
- HDCP 2.3 support.
- USB-C input supports 60W USB Power Delivery.
- Supports USB3.1 Gen2 (up to10Gbit/s) data transfer via USB-C.
- 3x USB 3.1 device ports for camera, keyboard and mouse.
- Ethernet Gigabit LAN pass-through via USB-C
- No software drivers required - Plug and Play.
In the Box
- x1 VC-C101U-ETH
- x2 Mounting Ears with 4 Screws
- x4 Plastic Cushions
- x1 Power Adapter ( 24VDC, 5A )
- x1 User ManualVideo Input
Input: (1) USB
Input Connector: (1) USB-C
Input Resolution: Up to 4K@60Hz 4:4:4
USB Standard: USB3.1 Gen2
Video Output
Output: (1) HDMI
Output Connector: (1) Female type-A HDMI
HDMI Output Resolution: Up to 4K@60Hz 4:4:4
HDMI Standard: 2.0b
HDCP Version: 2.3 compliant (backwards compatible)

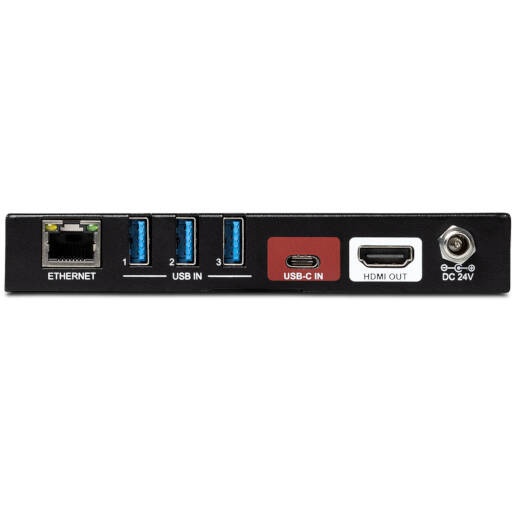

USB
Connector: (3) USB-A, (1) USB-C
USB Standard: (3) USB-A: USB 3.1 Gen 1, 5V1A External Power Supply (1) USB-C: USB 3.1 Gen 2, 60W External Charging
Ethernet
Standard: 10/100/1000Base-T
General
Bandwidth: 18Gbps
Operation Temperature: -10 ~ +55℃
Storage Temperature: -25 ~ +70℃
Relative Humility: 10% - 90%
Power Supply: Input:100V~240V AC; Output: 24V DC 5A
Power Consumption: 68W(Max)
Dimension (W*H*D): 145mm x 22mm x 80mm
Net Weight: 270g
