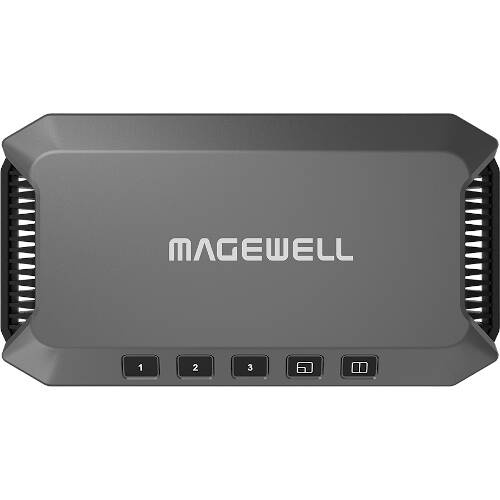

Magewell USB Fusion Multi-input USB video capture device

Capture and Combine
USB Fusion is a multi-input USB video capture device with integrated source switching and layout control. Offering two HDMI inputs and one USB webcam input, USB Fusion can switch between sources or combine two inputs simultaneously into one output (picture-in-picture or side-by-side) for capturing into popular software via its USB 3.0 interface.
Easy Setup and Flexible Features
As a standard UVC/UAC device with automatic, driver-free installation, USB Fusion is immediately compatible with a wide range of operating systems and software applications. Users or administrators can configure and manage the hardware through its built-in web GUI, while the free USB Fusion companion tablet app provides additional features to augment your presentations.
Engaging Presentations
Using the USB Fusion companion app, teachers and event hosts can create presentation playlists in advance and incorporate pre-recorded audio and other media files into their sessions. The app’s annotation tools can be used to mark up presentation materials, and the annotations can be exported to a file for sharing after the class or event. Sessions can also be recorded through the app to the USB Fusion hardware’s built-in storage for subsequent playback.
Configure Through Web GUI
Users or administrators can configure and manage the hardware through its built-in web GUI.
In the Box
Magewell USB Fusion HDMI & USB Video Capture Device
USB 3.0 Cable
Power Adapter
Limited 2-Year Warranty

Specifications

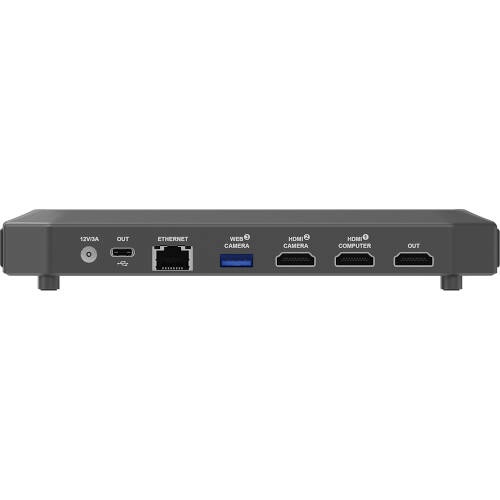

Video Input

HDMI input

Port: 2x HDMI 1.4 Type-A port (HDMI 1 / HDMI 2)
Resolution/frame rate: up to 1920x1080p, 60fps
Color depth: 8-bit
Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2USB input
Port: 1x USB 3.0 Type-A port (WEB CAMERA 3)
Resolution/frame rate: up to 1920x1080p, 60fps
Codec: YUYV, H.264, MJPEG, YU12, UYUV, NV12Video/image file input
Resolution: up to 4K resolution
Codec: H.264, HEVC (H.265)
Format: MOV/MP4/MKV video files, JPEG/PNG/BMP image files

Audio Input

1x 3.5mm jack: line in port

Format: 2-channel, 48 KHz, 16-bit

1x 3.5mm jack: headset port

Format: 2-channel, 48 KHz, 16-bit
Standard: CTIA

Audio from HDMI 1 port: 2-channel, 48 KHz, 16-bit

Audio from HDMI 2 port: 2-channel, 48 KHz, 16-bit

Audio from WEB CAMERA 3 port: 2-channel (The audio is disabled by default, and can be enabled on Web UI.)

Audio embedded in video files

Audio file: MP3, M4A, WAV

Audio Input

1x 3.5mm jack: line in port

Format: 2-channel, 48 KHz, 16-bit

1x 3.5mm jack: headset port

Format: 2-channel, 48 KHz, 16-bit
Standard: CTIA

Audio from HDMI 1 port: 2-channel, 48 KHz, 16-bit

Audio from HDMI 2 port: 2-channel, 48 KHz, 16-bit

Audio from WEB CAMERA 3 port: 2-channel (The audio is disabled by default, and can be enabled on Web UI.)

Audio embedded in video files

Audio file: MP3, M4A, WAV

Video Processing & Production

HDMI input

Video/audio signal data: auto extracted
Color space/quantization range: calibration supported
De-interlacing: Bob, motion-adaptive, motion compensated
EDID: changeable

USB input

Codec: configurable
Resolution/frame rate: configurable

Frame rate/color space conversion: auto
Source switching: auto, manual
Scene compositing: picture in picture, side by side
Scene editing: crop, mirror, scale, rotate, and more
Annotation: pens, shapes, text, and more
Presentation: creation and management supported

Audio Processing & Production
Resampling: auto
Audio de-embedding and embedding: auto
Volume control: support for audio output and each audio input
Gain: supported

Recording and Screenshot
Recording format: H.264 + MP4
Encoding format for recording: up to 1080p60, configurable
Screenshot format: JPEG
Storage space: 32 GB

Network
Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax, Station mode and AP mode supported
USB network
Port: USB OUT
OS version: Windows 10 19H1 and later, macOS 10.12 and later, Linux
IP address: DHCP-assigned, static
DNS server: Auto or manual

Provided Software
USB Fusion App: create, edit and control presentations
OS version: iOS 12 and later, Android 7.0 and later
Web UI: configure and manage the device and presentations

Compatible Software
Skype, Zoom, Microsoft Teams
Other UVC/UAC compliant, DirectShow/V4L2/AVFoundation compatible software

Compatible OS

Windows: Windows 7 and later, Server 2008 and later (x86 & x64)
Linux: Linux system with kernel 2.6.35 or later (x86, x64 & ARM)
Mac: OS X 10.9 and later, macOS 10.12 and later

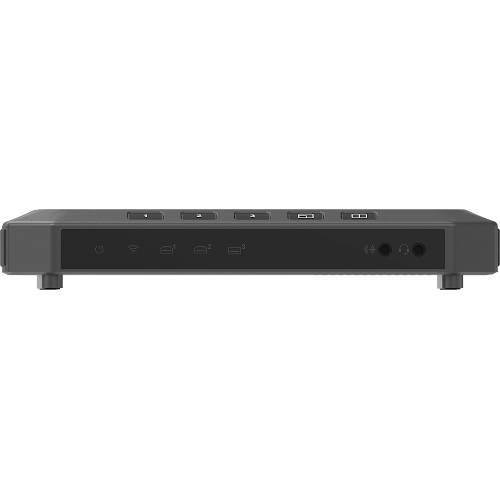

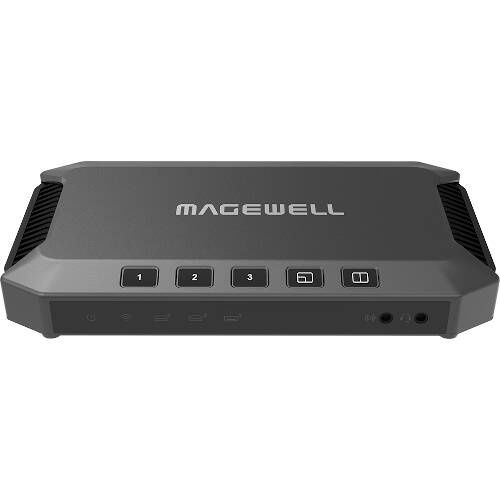

Buttons

Switch and composite sources

LED Indicators
Power/Wi-Fi/HDMI 1/HDMI 2/Web Camera 3 indicators
