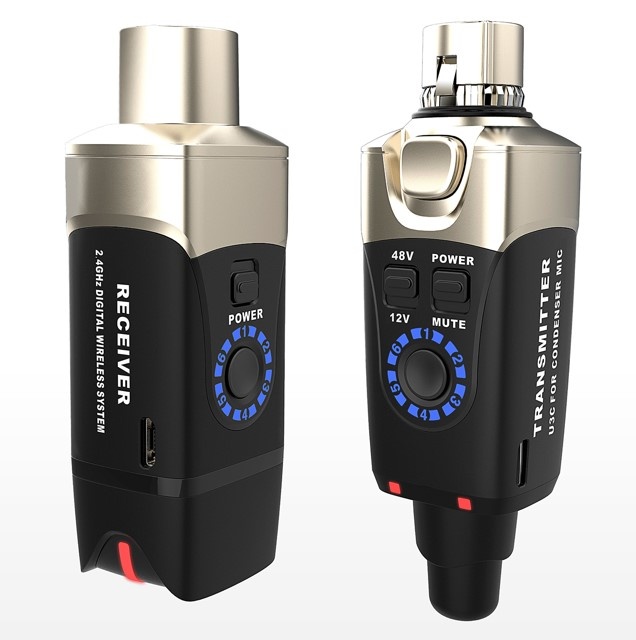

Easily turn any condenser microphone into a wireless mic with the Xvive Audio U3C Set 2.4 GHz wireless plug-on system. Ideal for capturing vocals and speech in live stage applications, dialogue on set, or even demos in the studio, the U3C Set features a lightweight transmitter that connects directly to your XLR-equipped condenser mic, a compact receiver that plugs into the XLR input of an audio mixer or interface, and easy operation with no menus or cables.
- The transmitter supplies 12V or 48V phantom power to accommodate your favorite condenser microphone, and sends uncompressed 24-bit / 48 kHz audio to the receiver up to 90' away. The internal rechargeable batteries power the U3C Set for enough time to handle an entire concert, worship service, or long-form presentation.
- Utilizes the 2.4 GHz band for license-free worldwide use
- Uncompressed 24-bit / 48 kHz audio resolution with high dynamic range and a broad 20 Hz to 20 kHz frequency response
- Low system latency under 5 ms
- Simple setup with no cables required
- Plug-on transmitter supplies 12V or 48V phantom power for condenser microphones
- Receiver plugs directly into the XLR input of a mixing console, an audio interface, or an active PA system
- Easy menu-free channel selection on transmitter and receiver
- Six available channels allow up to six systems to be used at one time (additional systems available separately)
- Balanced 3-pin XLR input and output connectors
- Transmitter power/mute switch for easy signal control at the mic
- Internal rechargeable batteries provide three to seven hours of operating time for the transmitter and up to five hours of use for the receiver
- Includes USB cable for convenient recharging
- For use with balanced condenser microphones only—phantom power may permanently damage unbalanced or dynamic microphones
-
System
Wireless Technology Digital 2.4 GHz
Number of RF Channel Frequencies 6
Included Transmitters 1 x Plug-On
Diversity Non-Diversity
RF Frequency Band 2400 to 2483.5 MHz
RF Bandwidth 483.5 MHz
Max Operating Range 90' / 27.4 m
Max Transmitters per Band 6
Sample Rate/Resolution 48 kHz / 24-Bit
Latency 5 ms
Dynamic Range 110 dB
Encryption None
Receiver
Receiver Type Plug-In
Mounting Options Plug-In
Antenna 2 x 1/4 Wave Sleeve Dipole, Fixed
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Mic Output
Frequency Response 20 Hz to 20 kHz-3 (Dependent on Mic)
Network I/O None
Word Clock I/O None
USB/Lightning Connectivity 1 x Micro-USB (Charging)
Impedance XLR Output:
470 Ohms (Balanced)
Approximate RF Sensitivity -88 dBm
Power Requirements Battery
Battery Type 1 x Built-In Rechargeable (Included)
Internal Battery Capacity 860 mAh
Battery Charging Time 2 Hours
Approx. Battery Life 5 Hours
AC/DC Power Adapter VDC Not Included
Display & Indicators 1 x LED (Channel)
1 x LED (Sync)
1 x LED (Battery Status, Power)
Housing Metal, Plastic
Operating Temperature 0 to 134°F / -18 to 57°C
Dimensions 1.2 x 3.9 x 1.1" / 31 x 98 x 29 mm
Weight 3.2 oz / 92 g
Transmitter
Transmitter Type Plug-On
RF Output Power Up to 10 mW (EIRP)
Audio I/O 1 x XLR 3-Pin Female Balanced Input (Lockable)
Phantom Power +12 V
+48 V
Pad None
Muting Off/On Switch
Audio Input Level 2.8 Vpp (Max)
Signal Processing None
Frequency Response 20 Hz to 20 kHz-3 (Dependent on Mic)
Sync Method Manual
Antenna 1 x 1/4 Wave Sleeve Dipole, Fixed
Approximate RF Sensitivity -88 dBm
Power Requirements Battery
Battery Type 1 x Built-In Rechargeable (Included)
Internal Battery Capacity 1000 mAh
Battery Charging Time 2 Hours
Approx. Battery Life 7 Hours
USB/Lightning Connectivity 1 x Micro-USB (Charging)
Display & Indicators 1 x LED (Channel)
1 x LED (Battery Status, Power)
Housing Metal, Plastic
Operating Temperature 0 to 134°F / -18 to 57°C
Dimensions 1.2 x 3.9 x 1.1" / 31 x 98 x 29 mm
Weight 3.8 oz / 108 g
