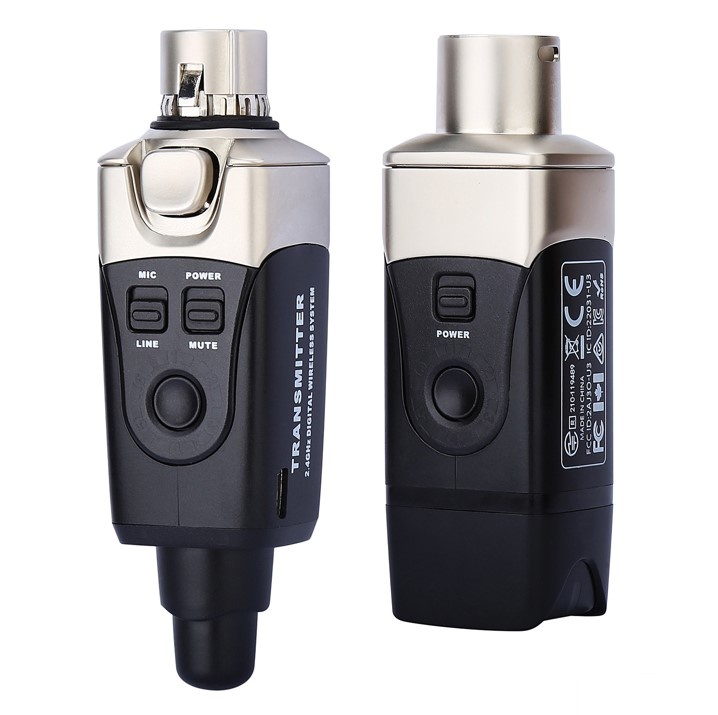

Turn your dynamic microphone into wireless with the U3 2.4 GHz Digital Wireless Microphone System from Xvive Audio. It features a 2.4 GHz wireless band, 20 Hz to 20 kHz frequency response, and less than 5 ms latency. The system works up to a 90' range, and includes two rechargeable batteries with a five-hour life for both receiver and transmitter units. The transmitter plugs into a dynamic microphone or into DI or XLR output gear, and the receiver plugs into a live sound mixer, portable PA system, or a recorder. This system broadcasts on six channels simultaneously, and is suitable for live vocals, presentations, video productions, and houses of worship.
COMPLIES WITH IMDA STANDARDS | DB106404 (Loud Technologies Asia Pte Ltd)
Only wireless systems bought through AVLFX will bear the IMDA type approval dealer label. See the last image for IMDA approvalIn the Box
Xvive Audio U3 2.4 GHz Digital Wireless Microphone System
2 x Rechargeable Batteries
USB Cable
Bag
Limited 1-Year WarrantySystem
Wireless Technology Digital 2.4 GHz
Number of RF Channel Frequencies 6
Included Transmitters 1 x Plug-On
Diversity Non-Diversity
RF Frequency Band 2400 to 2483.5 MHz
Max Operating Range 90' / 27.4 m (Line of Sight)
Max Transmitters per Band 6
Built-In Recorder No
Timecode Support No
Control App Support No
Latency 5 ms
Dynamic Range 110 dB
Encryption None
Receiver
Receiver Type Plug-In
Mounting Options Plug-In
Antenna 2 x 1/4 Wave Sleeve Dipole, Fixed
Number of Audio Channels 1
Audio I/O 1 x XLR TRS Male Balanced Mic/Line Output
Audio Output Level 2.8 V p-p
Phantom Power Protection None
Frequency Response 20 Hz to 20 kHz -3 dB
Network I/O None
Network Protocols None
Word Clock I/O None
USB/Lightning Connectivity 1 x Micro-USB (Charging)
Standalone Audio Interface Capable No
Impedance XLR Output:
470 Ohms (Balanced)
Antenna:
50 Ohms
Approximate RF Sensitivity -88 dBm
Power Requirements Battery
Battery Type 1 x Built-In Rechargeable
Internal Battery Capacity 860 mAh
Battery Charging Time 2.5 Hour
Approx. Battery Life 5 Hour
Display & Indicators 3 x LED (Battery Status, Channel, Power, Sync)
Housing Metal, Plastic
Dimensions 1.2 x 1.1 x 3.9" / 31 x 29 x 98 mm
Weight 0.2 lb / 92 g
Transmitter
Transmitter Type Plug-On
RF Output Power 10 mW (EIRP)
Audio I/O 1 x XLR TRS Female Balanced Input (Lockable)
Included Cable Connector None
Pad None
Muting None
Audio Input Level 2.8 V p-p (Mic Level)
7 V p-p (Line Level)
Auto-Level Control No
Gain Range 0 / -10 dB
Signal Processing None
Frequency Response 20 Hz to 20 kHz -3 dB
Sync Method Manual
Antenna 1 x 1/4 Wave Sleeve Dipole, Fixed
Approximate RF Sensitivity -88 dBm
Power Requirements Battery
Battery Type 1 x Built-In Rechargeable
Internal Battery Capacity 860 mAh
Battery Charging Time 2.5 Hours
Approx. Battery Life 5 Hours
USB/Lightning Connectivity 1 x Micro-USB (Charging)
Display & Indicators 3 x LED (Battery Status, Channel, Power, Sync)
Housing Metal, Plastic
Dimensions 1.2 x 1.1 x 3.9" / 31 x 29 x 98 mm
Weight 3.3 oz / 93 g
