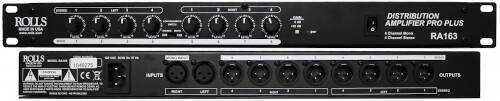

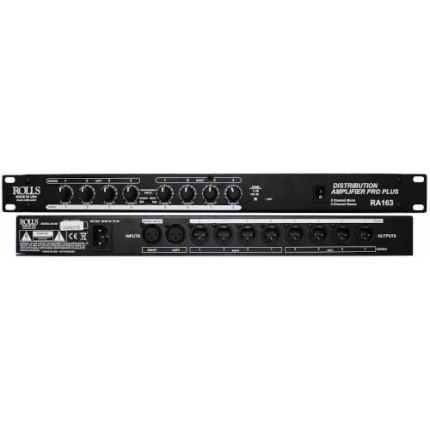

The RA163 is an eight channel mono, or four channel stereo distribution amplifier designed for the contractor / install market. The outputs are designed to drive high-level balanced lines in a sound distribution system. The XLR jacks on the rear panel are for input and output, and each output may power more than one line.
In the Box:
Rolls RA163 x1
Input Impedance: 100 K Ohms balanced
Max Input Level: +24 dBV
I/O Connectors: XLR
Output Impedance: 50 Ohms balanced
Max Output Level: +24 dB
Max Gain: 20 dB
S/N Ratio: >90 dB
Frequency Response: 10 Hz - 40 kHz, +/- 1 dB
THD: .008%
Power: 120 VAC 50-60 Hz, 15VA
Size: 19" x 1.75" x 6.5" (48 x 4.5 x 17 cm)
Weight: 7 lbs. (3 kg)
