Recommended for long runs and low-frequency sub-woofer systems. Heavy-duty 4 x 14 AWG conductors.
- PA Systems.
- Hi-Fi Speakers.
- DC Power Lines.
- Super Flexibility, even in Sub-Zero Weather.
- Star Quad Design Reduces EMI Noise.
- Low Capacitance and Resistance.
In the Box

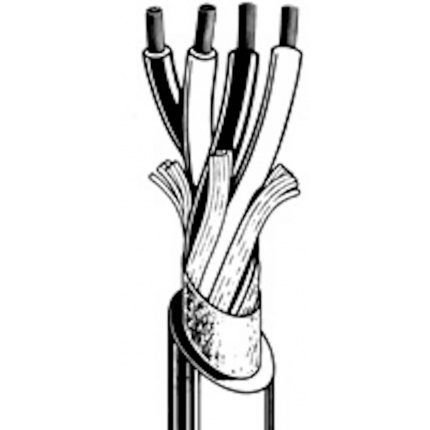

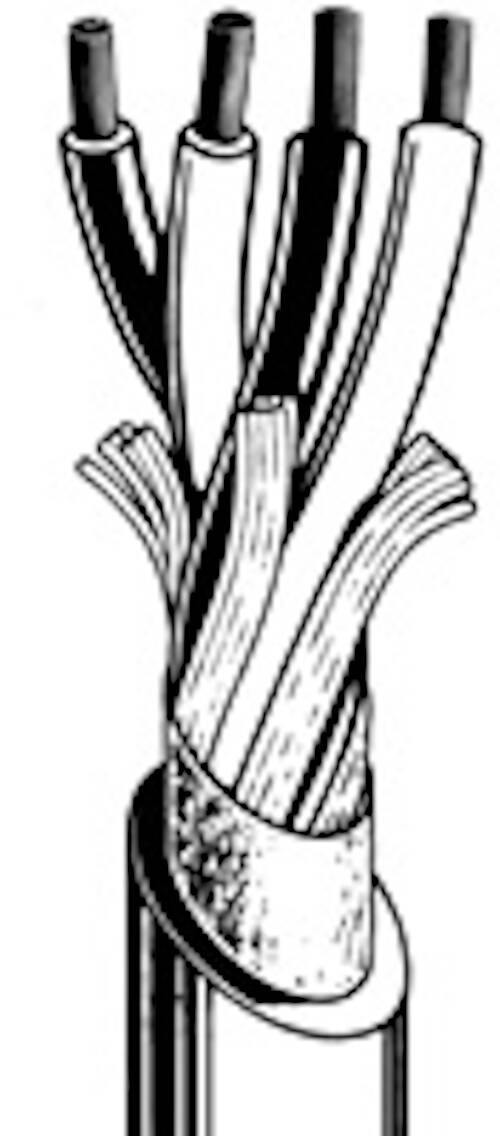

Canare 4S11 4-Conductor Speaker Cable(Per Meter)If you would like to purchase longer lengths, please specify in the notes and add the appropriate quantity to match the amount you are purchasing.
-
Std. Lng. ft. (m)
3.28 (1)Wt Std. Lng. lbs (kgs)
0.7LB (0.32)Nom. O.D. in. (mm)
.421 (10.7)PVC Jacket Nom. Thick. in. (mm)
.047 (1.2)Brittle Point F° (C°)
-56 (-49)No. of Cond.
4
RED
CLR RED
WHITE
CLR WHITEInsul. Type Thick mil
PE 27.6Cond-AWG (Qty./mil) Cross Sec. Area mil. Twin Cond. AWG
AC - #14
(41/10.24)
3379 #11Pitch of Quad in. (mm)
4.73 (120)Shield Coverage
-Cond. D.C.R. ohm/1000ft (ohm/100m)
2.6 (0.9)Shield D.C.R. ohm/1000ft (ohm/100m)
-Nom. Cap. pF/m
146Nom. Cap. † pF/m
-Nom. Imp. ohm
-Nom. Atten. V/1000ft (V/100m)
-Group Delay Time nS/ft (nS/m)
-
