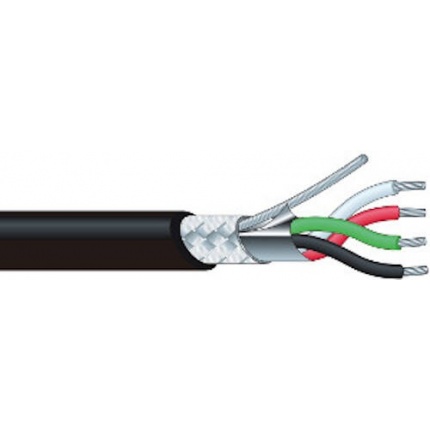

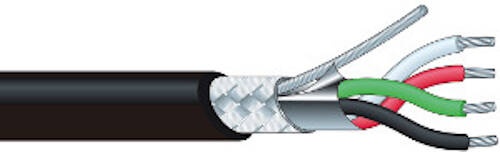

DMX512-A lighting control standard compliant
New flexible and thinner cable design for the DMX203 and DMX 403
Easily terminates to Neutrik XLRs
110-ohm impedanceIf you would like to purchase 200m lengths, please specify in the notes and add the appropriate quantity to match the amount you are purchasing.
Std Lngth ft. (m)
328(100)Weight lbs/100m (kgs)
13.23 (6.0)Nom. O.D. in. (mm)
.276 (7.0)No. of Cond. Cross Section Area(AWG) sq mm/(AWG) Qty/mm
4Twist Pitch (mm)
24Twist O.D. (mm)
4.5Overall shield Coverage (braid)
>=90%Cond. D.C.R. (ohms/100m)
5.76Characteristic imp. (ohms)
110
