Completely Submersible

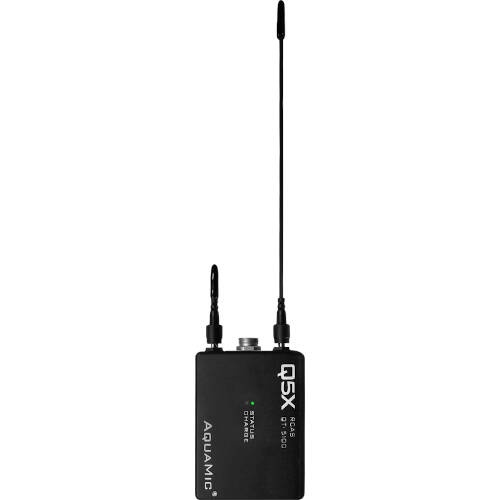

The QT-5100® AquaMic™ is the waterproof version of the Award Winning QT-5100® series of transmitters. The QT-5100® AquaMic™ is completely waterproof, fully submersible.Trial by Water
Used in reality TV, professional kiteboarding, surfing competitions and America’s Cup Yachting, the QT-5100® AquaMic™ has proven itself in extreme, wet environments. The AquaMic is also buried in the dirt at various locations on the ball diamond as an effects mic for Major League Baseball.QT-5100® Tech
The QT-5100® AquaMic ™ high quality broadcast audio transmitter has proven its worth exposed to the elements in some of the most demanding conditions. The internal lithium battery lasts 8 to 16 hours on a single charge (depending on version and output power). With approximately 3,000 selectable frequencies in 3 blocks from 470 MHz to 700 MHz. It features Q5X pre-emphasis DCS-QT companding and is comes standard with user selectable RF output power from 10mW to 100mW (regional restrictions apply).All Analog transmitters have 2 Q5X Modes. Choose an additional Mode for Lectro UCR/SRc, Shure UR or Sennheiser HiDyn plus receiver compatibility.
Note:
For legal use in Singapore, transmitters will be restricted to 10mW for legal use according to IMDA guidelines. Export versions will be capable of full transmission power and will be marked "FOR EXPORT" on the packaging.Please indicate your receiver frequency block in the comments when ordering.
Dimensions: 65mm x 46mm x 22.5mm (AquaMic L)
Weight: including battery, 122.6g (AquaMic L)
Housing Material: Machined Aluminum
RF output power: 10mW to 100mW (user selectable, country restrictions apply)
UHF frequency range 470 to 700 MHz in 3 frequency blocks
Tunable bandwith: Varies by frequency block (25 kHz steps)
Modulation: FM
Nominal deviation: +/- 40 kHz
Peak deviation: +/- 54 kHz
Pre-emphasis: 50 us
Compander: Q5X DCS-QT
Signal to Noise: 105dB (A) rms
Frequency stability: +/- 0.001%
Spurious emission: - 60 dBc
Total harmonic distortion (THD): 0.3% at nominal deviation
Frequency response: 50 Hz to 17,000 Hz
NOTE: System frequency response is dependent on the microphone element
Audio connector: 6 pin waterproof Lemo
Antenna: 1/4 wave UHF and 2.4 GHz
Battery: Internal Lithium Polymer
Operating time: (Battery) estimated 16 hrs @ 50mW (AquaMic L)
Operating temperatures: -10⁰C to 45⁰C
Approvals: FCC, CE, Industry Canada
