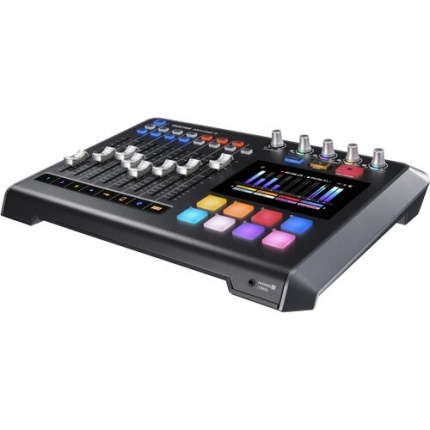

Record a podcast with up to four people with the Tascam Mixcast 4, a tabletop mixer and recorder with sound effects, independent headphone outputs, and mix-minus functionality, for live or streamed guests and more. With the Mixcast 4, you'll have everything you need to record a high-quality multicast podcast straight to an SD card or straight to a stereo USB feed, for instantaneous streaming over your favorite platform.
You'll enjoy the form factor of eight faders at your fingertips, as well as the eight sound-effect pads, and the built-in 5" touchscreen for deeper control. You'll be able to record up to 14 tracks at a time straight to an SD card, or record stereo over USB straight to your DAW, or streaming platform. In addition to Tascam's Podcast Editor Software, the Mixcast 4 ships with an included AC adapter and a USB Type-C cable.
Comprehensive Recording for Podcasting
- Record up to four people in person with the built-in mic pres, which accept XLR-1/4" connections for all manner of microphones. In addition, you'll find stereo line inputs with selectable 1/4" or 3.5mm connections to interface with phones and consumer devices. Pair this with a Bluetooth input for wireless connections to phones and devices, and you'll have everything you need to capture audio for all your guests.
Mix-Minus Functionality
- Stereo line inputs and the Bluetooth inputs both come with mix-minus functionality, so your remote guests won't hear an echo of themselves when they're talking.
Headphones Galore
- Four independently controlled headphone outputs are on hand, but that's not all. A 3.5mm TRRS headphone output mirrors headphone output 1, should you only have a headset with a 3.5mm connection on hand.
Pads and Faders
- With 8 faders and 8 sound pads (in 8 banks) under your fingers, you'll feel like a consummate professional. You'll have full sound pad control for editing and triggering sound effects, and transport functionality for one-touch recording.
Export Files in Multiple Formats
- Export files in WAV, MP3, and MP4 formats.
Record How You Like, When You Like
- Record to an SD card to work without a computer, or route the Mixcast 4 into a Mac, Windows, iOS, or Android device for a 14-in / 2-out audio capture.
Included Software
- The Mixcast 4 comes with TASCAM's Podcast Editor software, for basic editing and mixing duties as well as control over the sound pads.
Form Factor
- Tabletop
Number of Tracks
- 14
Display
- 5" Color Touchscreen
Channels of I/O
- USB:14 Inputs / 2 Outputs
Max Sample Rate/Resolution
- 48 kHz / 24-Bit
Number of Mic Preamps
- 4
Built-In Microphone
- None
Input Level Adjustment
- 4 x via Touchscreen
Meters
- 14 x Multi-Segment LED
Number of Headphone Mixes
- 1 x Master
- 3 x Guest
Sample Pads
- 8 x Assignable
Signal Processing
Pad
- None
Gain/Trim Range
- Mic Inputs:66.5 dB
High-Pass Filter
- None
Dynamic Processing
- Input Channels:Compressor
Solo/Mute
- Solo, Mute per Input Channel
Built-In Effects
- Reverb
Connectivity

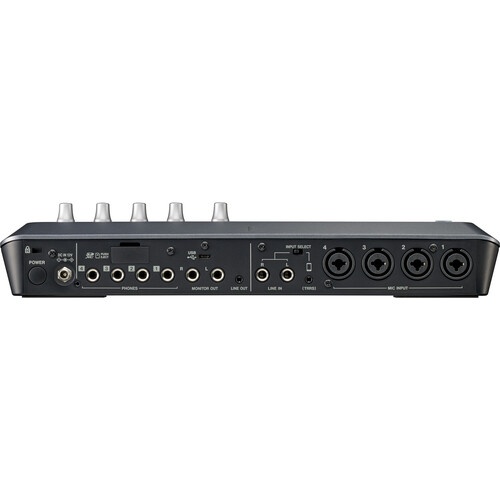

Analog Audio I/O
- 4 x Combo XLR-1/4" 3-Pin Balanced Mic Input
- 2 x 1/4" TRS Balanced Line Input
- 1 x 1/8" / 3.5 mm TRRS Unbalanced Line/Smartphone Input
- 1 x 1/8" / 3.5 mm TRRS Unbalanced Headphone Output
- 4 x 1/4" TRS Unbalanced Headphone Output
- 2 x 1/4" TRS Balanced Monitor Output
- 1 x 1/8" / 3.5 mm TRS Unbalanced Line Output
Phantom Power
- 48 V (Selectable on Individual Inputs)
Digital Audio I/O
- None
Host Connection / USB
- 1 x USB Type-C (Class-Compliant USB 2.0)
USB (Non-Host)
- None
Sync I/O
- None
Network I/O
- None
MIDI I/O
- None
Wireless Connectivity
- Bluetooth (Audio Streaming)
Performance
Frequency Response
- Mic Inputs:20 Hz to 20 kHz ±0.3 dB (JEITA)
Max Input Level
- Mic Inputs:+10 dBu (Min Gain)
- 1/4" Line Inputs:+24 dBu
- 1/8" / 3.5 mm Line Inputs:+8 dBV
Max Output Level
- 1/4" Monitor Outputs:+20 dBu
- 1/8" / 3.5 mm Line Outputs:+6 dBV
Headphone Output Power
- 1/4": 45 mW per Channel into 32 Ohms (0.1% THD)
Impedance
- Mic Inputs:2.1 Kilohms
- 1/4" Line Inputs:11 Kilohms
- 1/8" / 3.5 mm Line Inputs:12 Kilohms
- 1/8" / 3.5 mm Headphone Inputs:2 Kilohms
- 1/4" Monitor Outputs:200 Ohms
- 1/8" / 3.5 mm Line Outputs:200 Ohms
SNR
- Mic Inputs:101 dB (A-Weighted)
THD
- Mic Inputs:0.003% (A-Weighted)
Crosstalk≥ 95 dBEIN
- Mic Inputs:≤ -125 dBu (150-Ohm Source, Max Gain)
Digital Audio
Sample Rates
- 48 kHz
Bit Depths
- 24-Bit
Audio Storage & Playback
Supported Media
- SD Card, SDHC Card, SDXC Card
Memory Card Slot
- 1 x SDXC
Supported Media Capacity
- SD:64 MB Minimum to 2 GB Maximum
- SDHC:4 GB Minimum to 32 GB Maximum
- SDXC:48 GB Minimum to 512 GB Maximum
Compatibility
OS Compatibility
- Android 10 or Late
- riOS 13 or Later
- iPadOS 13 or Later
- macOS 10.15 / 11 / 12
- Windows 10 / 11
Included Software
- None
Compatible Software (Not Included)
- Any Core Audio (Mac) Compliant Software
Required Hardware
- Available USB Port
Internet Connection
- Required for Registration
Power
Power Requirements
- AC/DC Power Adapter (Included)
AC/DC Power Adapter
- 12 VDC, Center-Positive (Included)
Power Consumption
- 12.5 W (Maximum)
Physical
Anti-Theft Features
- Kensington Security Slot
Operating Temperature
- 32 to 104°F / 0 to 40°C
