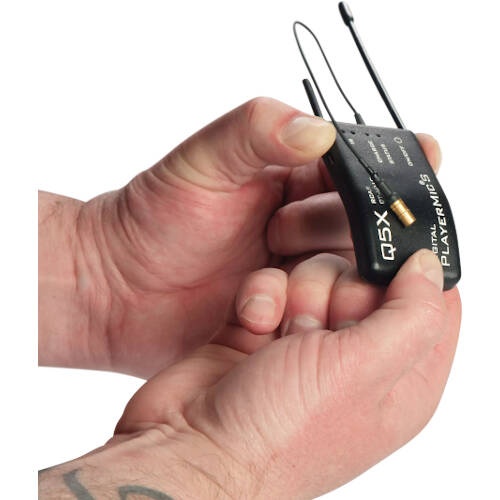

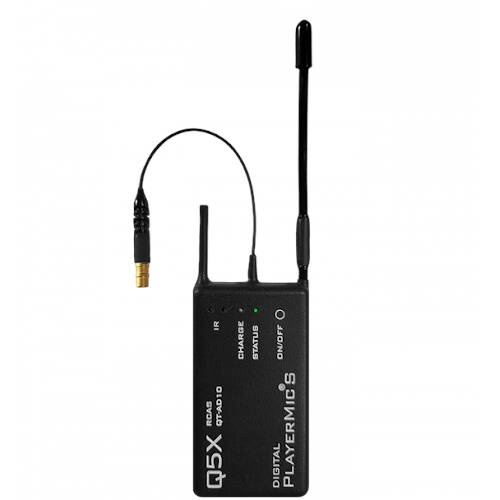

Q5X QT-AD10 PlayerMic S

S$ 3,907.75
(S$ 3,907.75 excl GST)
Not shipping to UNITED STATES OF AMERICA Not refundable/exchangeable

 Please make your choice:

*
What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!

Singapore Versions Restricted to 10mW.

Key Features:
  • Micro sized transmitter
  • Flexible polymer water resistant case
  • Axient Digital audio transmission with encryption and a high-density mode for spectrum efficiency
  • Internal lithium polymer rechargeable battery
  • Lemo connector for a removable lavalier.
Show moreShow less
  • Superior Digital Performance
    The QT-AD10 Digital PlayerMic and Digital PlayerMic S bodypack transmitters have been developed in collaboration with Shure Corporation to work exclusively with Shure Axient Digital receivers, ensuring superior digital transmission with advanced encryption and spectrum efficiency.

    Remote Control Audio System
    The QT-AD10 Digital PlayerMic utilizes the RCAS™ (Remote Control Audio System) a revolutionary way to remotely control transmitter settings from a central computer or hand held remote control. The remote functions allow technicians to control; on/off, monitor status and battery level and make on-the-fly adjustments of frequency, mic offset, mic mute, RF power level, and grouping, all wirelessly.

    Four UHF Tuning Blocks
    The QT-AD10 Digital PlayerMic is offered in 4 tuning blocks that span 470 to 700 MHz and 941 to 960 MHz in 25 kHz steps.

    Comfortable and Concealable
    The QT-AD10 Digital PlayerMic has a flexible polymer case to create the safety and ruggedness required for professional sports. The Digital PlayerMic has a run time of 8 hrs at 10mW, while the shorter Digital PlayerMic S has a run time of 4 hours at 10mW. Weighing only 2 ounces and less than a 1/2 inch thick, the Digital PlayerMic joins the Q5X family as the safest and most comfortable audio transmitter in the industry.

    All Analog transmitters have 2 Q5X Modes. Choose an additional Mode for Lectro UCR/SRc, Shure UR or Sennheiser HiDyn plus receiver compatibility.

    Note:
    For legal use in Singapore, transmitters will be restricted to 10mW for legal use according to IMDA guidelines. Export versions will be capable of full transmission power and will be marked "FOR EXPORT" on the packaging.

    Please indicate your receiver frequency block in the comments when ordering.

  • Dimensions: 74.5mm x 41.5mm x 11.5mm (PlayerMic S)

    Weight: including battery, 48.6 g (PlayerMic S)

    Housing Material: Polymer Case

    Encryption: AES 256 Encryption

    RF output power: 2mW, 10mW, 20mW (user selectable, country restrictions apply)

    UHF frequency range 470 to 700 MHz and 941 to 960 MHz in 4 frequency blocks

    Tunable bandwith: Varies by frequency block (25 kHz steps)

    Modulation type : Shure Axient Digital Proprietary

    Mic offset gain range: -12 to 21 dB (in 1 dB steps)

    Pre-amplifier Equivalent Input Noise (EIN), System gain setting ≥ +20: -115 dBV, A-weighted, typical

    Maximum input level: 1 kHz at 1% THD, 3 dBV (5.0V)

    Input impedance: 8.2K with 5V Mic Bias

    Frequency response: 20 Hz to 20 KHz
    NOTE: system frequency response is dependent on the microphone element

    Audio connector: 1 pin Lemo

    Occupied bandwidth: 200 kHz

    Channel-to-Channel spacing

    Standard Mode – 350 KHz

    High Density Mode – 125 KHz

    Antenna: 1/4 wave UHF and 2.4 GHz

    Antenna impedance: 50 Ohm

    Battery: Internal Lithium Polymer

    Operating time: (Battery) estimated 4 hrs @ 10mW (PlayerMic S)

    Operating temperatures: -20⁰C to 50⁰C

    Storage temperatures: -20⁰C to 45⁰C

    Approvals: FCC, CE, Industry Canada
