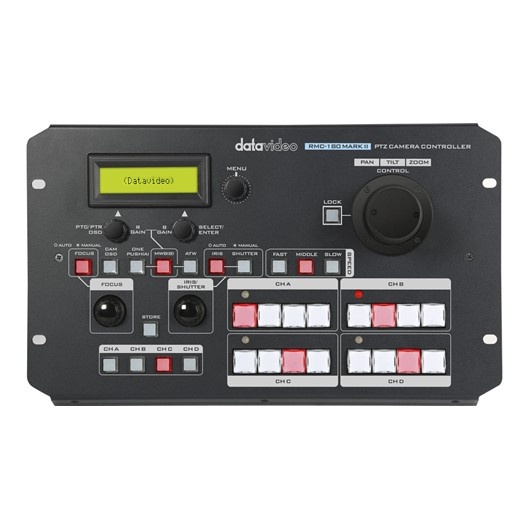

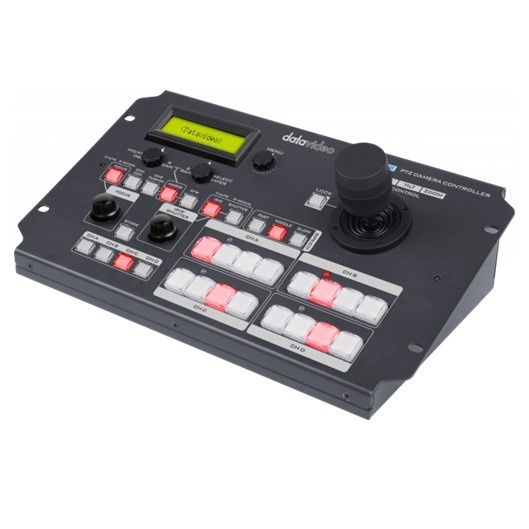

Use the Datavideo RMC-180 Mark II PTZ Camera Controller to adjust the focus, iris, zoom, and other settings of up to four PTZ cameras via RS-422 and VISCA protocols in live event or conference applications. One main joystick and various knobs and buttons allow for easy setup and control of connected cameras through four RJ45 inputs. Four shortcut keys per camera can be programmed into position presets for effects like close-ups and wide shots.
The movement speed of each camera can also be adjusted to best suit your production. A DB-15 tally input is compatible with Datavideo's switcher indicators for two tally modes: user and input. Status of the controls can be viewed via the monochrome panel display, and firmware updates can be achieved via the USB Type-A input.
In The Box:
Datavideo RMC-180 Mark II PTZ Camera Controller
Adapter
USB Type-A Cable
Limited 1-Year Warranty, 2-Year Extension with RegistrationGeneral
Number of Supported Cameras: 4 Channels via RS-422
Supported Control Protocols: RS-422, VISCA

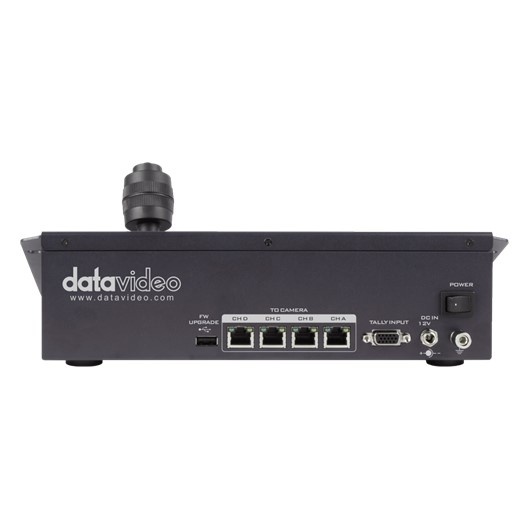

Control Interface: 4 x RJ45 (RS-422, VISCA)
Other I/O: 1 x USB Type-A Input, 1 x DE-15/DB-15 (Tally) Input
Controls: 1 x Pan/Tilt, Zoom Joystick, 2 x Gain Knobs, 1 x Focus Knob, 1 x Iris Adjustment, Shutter Speed Knob, Programmable, Multifunction, Iris Adjustment, Shutter Speed, Focus, Auto-Focus, Camera Selection Buttons
Presets: 16
Display
Touchscreen: No
Power
PoE Support: None
Power Connectors: 1 x Barrel / Coaxial
DC Input Power: 12 VDC at 1 A
Environmental
Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature : -40 to 140°F / -40 to 60°C
Physical
Security Lock Support: None
Dimensions: 12.2 x 6.7 x 4.9" / 310 x 170 x 125 mm
Weight: 3.3 lb / 1.5 kg
Packaging Info
Package Weight: 4.98 lb
Box Dimensions (LxWxH): 15.1 x 10.4 x 7.9"
