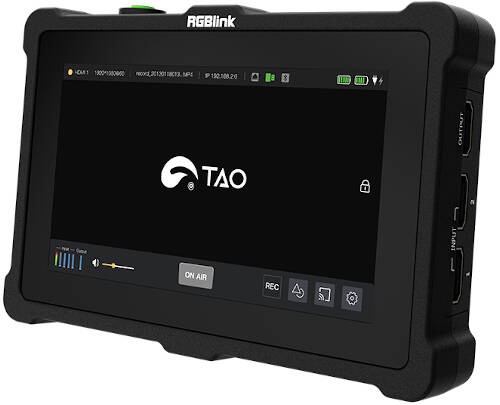

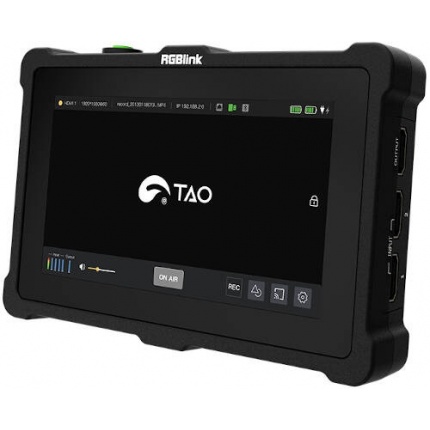

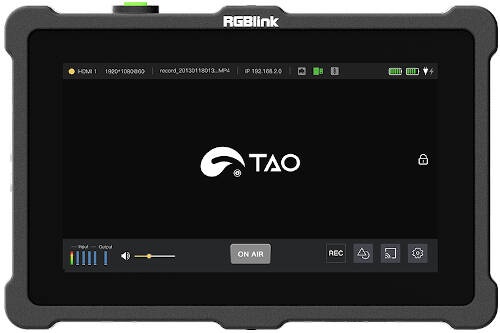

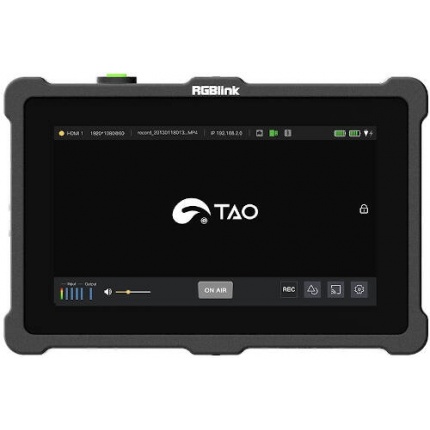

TAO 1pro is a Broadcasting streaming decoder with a 5.5 inch FHD preview display,but also a 4 channels seamless video switcher for 2 USB 3.0 and 2 HDMI 1.3 inputs, and supports streaming directly by ethernet output which is ready to connect to external cloud based router and streaming from Anywhere to Everywhere.
TAO 1pro is compatible with standard USB 2.0 and USB 3.0 cameras by UVC protocol, and brings itself as a much affordable and user friendly streaming tools for anybody, the talents who is willing to be Anchor Online.
TAO 1pro is also with touch panel for finger configuration, and with optional 2 chargable battery extending its capacity for outdoor application.In the Box:
RGBlink TAO 1pro HDMI/USB/NDI Video Switcher
Power Adapter

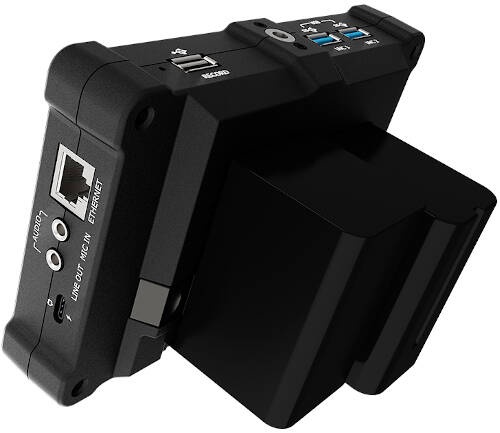

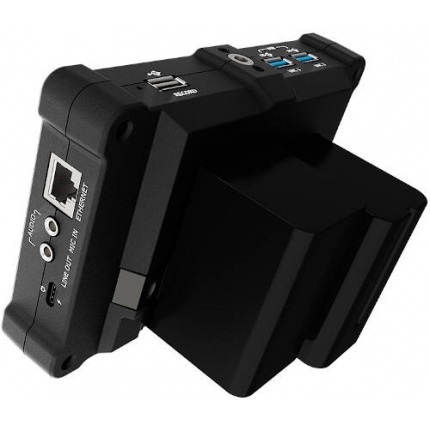

USB 3.0 Type-A CableConnectors
Input HDMI 1.3 2×HDMI-A
USB 3.0 2×USB TypeA
Output HDMI 2.0 1×HDMI-A
Record USB 2.0 1×USB TypeA
Audio In 1×3.5mm Audio Jack
Out 1×3.5mm Audio Jack
Communication/Stream LAN 1×RJ45
Power 1×USB-C
Performance
Input Resolutions HDMI
SMPTE 720p@50/60 | 1080p@23/24/60
VESA 1024×768@60 | 1280×720@60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 |
1600×1200@60 | 1680×1050@60 | 1920×1080@60
Output Resolutions HDMI
SMPTE 720p@50/60 | 1080p@24/25/50/60 | 2160p@60
VESA 1024×768@60 | 1280×720@50/60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 |
1920×1080@50/60 | 3840×2160@60
Supported Standard HDMI 1.3(Input) | 2.0(Output)
USB 3.0
Screen Feature
Screen Dimension 5.5 ’’TFT
Resolution 1080×1920 pixels
Dot Pitch 0.063(H)×0.021(W)(mm)
Aspect Ratio 16:9
Brightness 450cd/m²
Contrast 1000:1
Backlight LED
View Angle 80°/80°(L/R)80°/80°(U/D)
Power
Input Voltage 9V/2A
Max Power 18W
Environment Temperature 0℃~55℃
Humidity 5%~85%
Physical
Weight Net 350g(without battery);882g(with battery)
Package 770g
Dimension Net 161mm×106mm×36mm
Package 255mm×145mm×85mm
