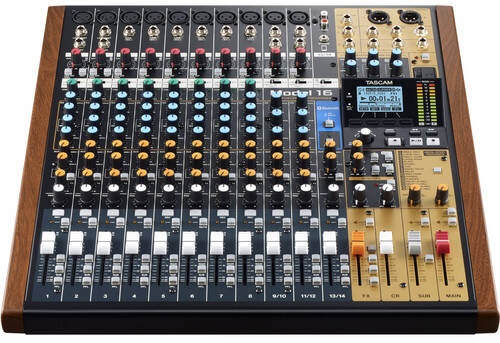

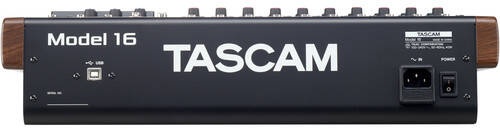

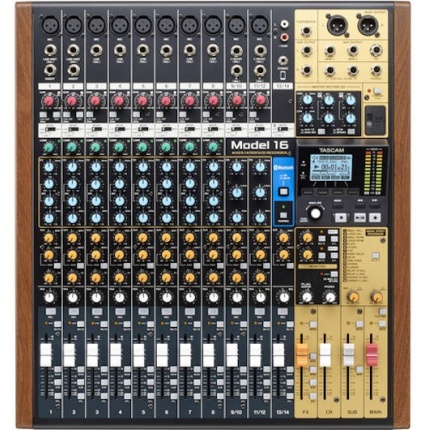

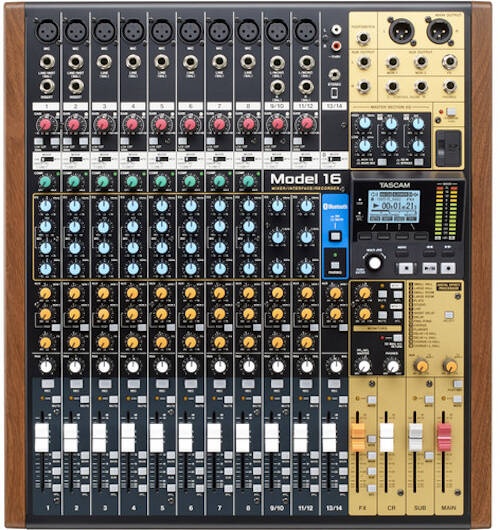

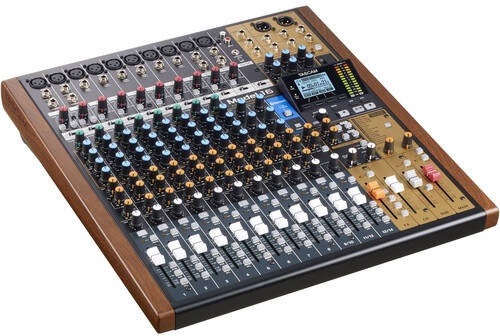

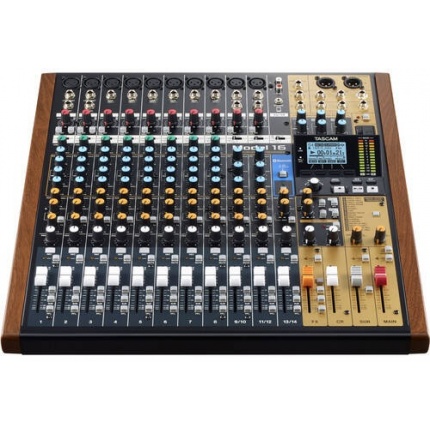

Tascam Model 16 Hybrid 14-Channel Mixer, Multitrack Recorder, and USB Audio Interface A compact all-in-one integrated mixer

14 Inputs for Complete Flexibility
14 easy-to-access top-panel inputs provide flexible options for microphones or instrument connections, including 10 Mic/14 Line/2 Inst to allow easy access for connecting microphones, instruments or other audio sources for live recording or mixing.A Bluetooth 5.0 enabled Stereo Input Source Channel also provides stereo RCA and 1/8" Stereo (selectable) jacks for streaming audio device level control.
Pristine Audio Quality
Mic Inputs 1 through 8 deliver pristine audio quality, featuring TASCAM's Ultra HDDA (High Deﬁnition Discrete Architecture) technology for pure, transparent natural tone with ultra-low noise.
Professional Channel Strip Control Features
A tactile Gain knob tops each channel for precise tweaking of input levels. A push-button Lo-Cut filter and three-position Input Selector (Live/PC/MTR) facilitate quick and precise control of input source signals. A 1-knob inline Compressor is available on inputs 1-8 as is a mid-range sweepable 3-band EQ.
Maximum Audio Routing Possibilities and Monitoring
3 Aux bus (MON1, MON2[pre/post], FX) and PFL Listen round out the Model 16's pro-level signal path routing options. A Sub bus provides an additional stereo lineout source to the master SEND section.3 AUX Outs let you route the audio signal for stage monitoring, or to external gear such as outboard effects, signal processors or headphone mixes. And the Footswitch control jack provides additional monitoring and control features.
Powerful Internal 16-Track Multi-track Digital Recorder
The Model 16's MTR section features a powerful internal 16-Track Multi-track recorder, capturing 14 Inputs and 2 Main Mix simultaneous tracks of audio to an internal SD card in pristine 24-bit/48 kHz quality. Record anything from live performance to rehearsals, worship events, spoken word and meetings, as well as perform overdubs and punch-in/out quickly and easily.Recorded tracks can be immediately mixed, mastered or exported to a computer for further editing, formatting and publishing.
High-Quality Internal Audio Interface
An internal 16 input/14 output USB audio interface captures audio at a 24-bit/48 kHz sampling rate for recording or playing back from an external DAW (digital audio workstation). The new generation TASCAM USB driver delivers the minimum size of the audio buffer which can be set to as low as 4 samples, resulting in extremely low latency and the highest level of efficiency when recording audio.
Versatile Input Capability
Using the channel Mode switch, each channel can select the input source as needed. This allows a super flexible input configuration to be selected where some inputs can be live, other inputs can play tracks from the internal MTR, while other inputs can play tracks from a computer via USB, all simultaneously.
16 Editable Multi-Effects

The Model 16's versatile Effects Section offers 16 editable and foot-controllable multi-effects, including reverb, delay, chorus and flange.
4-Band Master EQ
A 4-Band EQ with mid-range sweepable, wide/narrow Q can be dialed in for crafting the perfect mix, assignable to MAIN outs or MON1/2 outs as you like.

Specifications

RECORDING SECTION

Supported Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB), Class 10 or higher required.
File System: SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT
Recording: File FormatWAV(BWF)
Playback: FormatWAV, BWF
Sampling Frequency:44.1k / 48k Hz
Bit Depth:16 / 24 bit
Maximum Recordable ChannelNumber: 16ch (14ch + 2 stereo mix)

ADUIO INPUTS

MIC IN: CH1 to 8, 9/10, 11/12
Connector: XLR 3-31 (1: GND, 2: HOT, 3: COLD, Balanced)
Maximum Input Level: +10dBu
Nominal Input Level :-8dBu
Minimum Input Level: -58dBu
Gain Adjustable Range:0 to 50dB
Input Impedance: 1.8k ohm
Phantom Power supply:+48V

LINE INCH: CH1 to 8, 9/10, 11/12
Connector: 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
Maximum Input Level: +22dBu
Nominal Input Level: +4dBu
Gain Adjustable Range: -10 to +40 dB: CH 1 to 8, +20 to +30 dB: CH 9/10 and 11/12
Input Impedance: 22k ohm

INST INCH: 1 to 6, 7, 9
Connector: 1/4" (6.3mm) TS Phone jack (T: HOT, R: GND, S: GND, Unbalanced)
Maximum Input Level: +13.8dBV
Nominal Input Level: -4.2dBV
Gain Adjustable Range: -10 to +40 dB
Input Impedance: 1M ohm

INSERTCH: 1 and 2
Connector: 1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND)
Return (Ring)
Maximum Input Level: +18dBu
Nominal Input Level: 0dBu
Input Impedance: 10k ohm
Send (Tip)
Maximum Output Level: +18dBu
Nominal Output Level: 0dBu
Output Impedance: 100 ohm

RCA INPUT
Connector: RCA Pin jack (Unbalanced)
Maximum Input Level: +8dBV
Nominal Input Level: -10dBV
Input Impedance: 10k ohm

TEREO INPUT
Connector: 1/8" (3.5mm) Stereo Mini jack (Unbalanced)
Maximum Input Level: +8dBV
Nominal Input Level: -10dBV
Input Impedance: 10k ohm

OUTPUTS

MAIN OUTPUT
Connector: XLR 3-32 (1: GND, 2: HOT, 3: COLD, Balanced)
Maximum Output Level: +22dBu
Nominal Output Level: +4dBu
Output Impedance: 100 ohm

SUB OUT, MONITER, FXOUT, CONTROL ROOM OUT
Connector: 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
Maximum Output Level: +16dBu
Nominal Output Level: -2dBu
Output Impedance: 100 ohm

PHONES OUT:
Connector: 1/4" (6.3mm) Stereo Phone jack
Maximum Output Level: 80mW + 80mW (32 ohm loaded)

REMOTE: Compatible with TASCAM RC-1F Foot Switch
Connector: 1/4" (6.3mm) TS Phone jack

USB AUDIO

Connecter: USB B type 4-pin
Format: USB2.0 High-Speed, Mass-storage class/USB Audio Class
Sampling Rate: 44.1k / 48k Hz
Bit Depth: 16 / 24 bit
Maximum INPUT: 16ch
Maximum OUTPUT: 16ch

Bluetooth®
Version: 5.0
Output Class: Class 2 (Transmission range: approx. 33 ft. / 10 m)* Transmission range may vary, depending on surroundings.
Supported Profile: A2DP, AVRCP 1.0
Supported A2DP Codecs: SBC, AAC
A2DP Content Protection: SCMS-T

Channel EQ
Low-Cut: 100Hz, -18dB / Octave
Hi-Shelving: +15dB / -15dB, Cut off frequency = 10kHz
Mid-Peaking:
(MONO): +15dB / -15dB, 100Hz to 8kHz Variable
(STEREO): +15dB / -15dB, Center frequency = 600HzMID Band Q Fix, 0.55
Low-Shelving: +15dB / -15dB, Cut off frequency = 80Hz

Master section EQ
Hi-Shelving: +15dB / -15dB, Cut off frequency = 10kHz
MID-Peaking: +15dB / -15dB, 100Hz to 8kHz Variable, Q: 0.5/5 RIX
MID-NARROWPeaking: +15dB / -15dB, 100Hz to 8kHz Variable, Q: 5 FIX
Low-Shelving: +15dB / -15dB, Cut off frequency = 60Hz

Internal Effects

Type

1 SMALL HALL / 2 LARGE HALL / 3 SMALL ROOM / 4 LARGE ROOM / 5PLATE / 6 STUDIO / 7 LIVE / 8 SHORT DELAY/ 9 DELAY / 10 PINGPONG / 11 CHORUS / 12 FLANGER / 13 DELAY + S.HALL / 14 DELAY+ L.HALL / 15 CHORUS + S.HALL / 16 CHORUS + L.HALL

Power
AC 100 to 240V, 50/60Hz

Power Consumption
40 W

AUDIO PERFORMANCE

Residual Output Noise: 100dBu (MAIN OUT, MAIN fader: MIN)
Equivalent Input Noise: -127dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Total Harmonic Distortion:

0.01% or less (MIC IN to MAIN OUT, Max input level, +10dBu, 1kHz, GAIN min.)
0.004% or less (MIC IN to MAIN OUT, nominal input level, +4dBu, 1kHz, GAIN min.)

Crosstalk:-80dB, channels / input and output(1kHz, PAN fully counter clockwise / fully clockwise)
Maximum Gain:
