The legendary British sound
From humble beginnings in London more than 40 years ago and still designed and engineered in the UK, Soundcraft defined the term 'British sound' in live sound mixing consoles.Soundcraft Co-Founder Graham Blythe's acclaimed microphone preamps and 'British' equaliser ensures the Si Impact proudly carries Soundcraft's signature sound today.
Going beyond analogue control

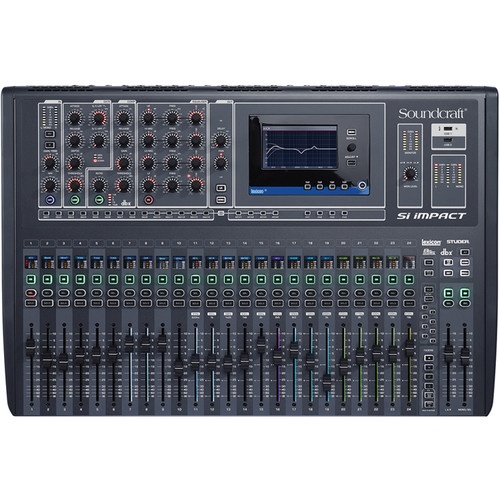

Combining One-Knob-One-Function control with unique features like FaderGlow™, Soundcraft combines analogue workflow with digital flexibility. FaderGlow™ illuminates the fader track in different colours to provide at-a-glance status information on precisely what the fader is controlling – aux sends, FX sends or even the graphic EQ that's available on every bus.Each fader channel also features a clear multi-color LCD display - giving 'at a glance' information on levels and offering a fully customisable'scribble strip' to name your channels.
World-class effects & dynamics
Si Impact isn't just packed with DSP power. It's packed with DSP power from the acknowledged experts in digital FX. That means studio-grade reverbs, delays and modulations from Lexicon, legendary dbx dynamics and industry-standard BSS Graphic Equalisers.Put your I/O where you need it
With built-in connectivity for an optional Soundcraft Stagebox, Si Impact lets you put your I/O where you need it.Set up your Stagebox by the band for live sound applications, or position it in the live room for studio recording all via a single piece of Cat 5 cable.
Pristine audio direct to your DAW
Si Impact makes recording quick and easy with superb quality, built-in 32-in/32-out USB recording and playback.A single connection to your PC or MAC and you're ready to make multi-track recordings direct to any digital audio workstation. Send up to 32 inputs and 32 outputs to and from your DAW for recording and playback.
Remote mixing with your iPad®
The mix power of Si Impact is accessible from anywhere in the venue, via the Soundcraft remote iPad® app.Mix FOH from the audience location, mix monitors from the stage, or allow musicians to set their own monitor mix from multiple iPad® devices.
Mixer
Number of Analog Input Channels 40
Signal Processing
Gain/Trim Range Mic:
-5 dB to 58 dB (in 1 dB Steps)
Line:
-10 dB to +16 dB
Gate Parameters
Threshold: -60 to -6 dBFS
Depth: -60 to -3 dB
Attack: .1 ms to 200 ms
Release: 20 ms to 500 ms
Compressor Parameters Threshold: -52 to -6 dBFS
Ratio: 1:1 to 20:1
Attack: .1 to 200 ms
Release: 5 to 900 ms
Makeup Gain: 0 to 24 dB
Sidechain Filters Gate:
High-Pass: 22 Hz to 2.5 kHz
Low-Pass: 160 Hz to 20 kHz
EQ Parameters HF Shelf:
±15 dB at 800 Hz to 20 kHz
MF Notch/Peak:
±15 dB at 22 Hz to 20 kHz, 6 to 0.3 Q
LF Shelf:
±15 dB at 20 Hz to 500 Hz
Graphic EQ 28-Band 1/3 Octave, 31 Hz to 16 kHz
Filters High-Pass: 40 Hz to 1 kHz
Audio Delay Adjustable Up to 500 ms
Digital Audio
Sample Rates AD/DA Conversion:
Up to 200 kHz
Bit Depth AD/DA Conversion:
24-Bit
DSP 40-Bit Floating Point
Jitter ± 7 ns
Word Clock Input 48 kHz ±7 Hz
Latency
0.8 ms (Mic Input to Line Output)
0.6 ms (Analog Input to AES Output)
0.9 ms (Stagebox Input to Stagebox Output)
Performance
dBFS Reference Level +21.5 dBu = 0 dBFS
Frequency Response Mic/Line Input:
20 Hz to 20 kHz ±1.5 dB
Max Input Level Mic Input:
+22 dBu
Line Input:
+22 dBu
Output Level Mix Output:
+21.5 dBu (Max)
Headphone Output Power 300 mW into 150 Ohms
I/O Impedance Mic Input:
3 Kilohms
Line Input:
10 Kilohms
Output:
150 Ohms (Balanced)
75 Ohms (Unbalanced)
Word Clock Output:
50 Ohms
Word Clock Input:
47 Ohms
AES3 Output:
110 Ohms
Crosstalk Adjacent Channels:
120 dB
Adjacent Inputs:
-100 dB at 1 kHz
-85 dB at 10 kHz
CMRR -80 dBu at Max Gain
EIN -126 dBu at Max Gain (2901653041)
Noise Floor -86 dBu (at Unity Gain)
THD 0.01%
Power
AC Input Power 88 to 264 VAC, 50 / 60 Hz
Power Consumption 130 W (Maximum)
Physical
Operating Temperature 41 to 113°F / 5 to 45°C
Operating Humidity 0 to 90%
Storage Temperature -4 to 140°F / -20 to 60°C
Dimensions 6.3 x 29.5 x 19.7" / 160 x 750 x 500 mm
Weight 44.1 lb / 20 kg
