The precision-engineered Beta 87A condenser vocal microphone has a smooth, tailored response for warm, accurate sound. Its supercardioid polar pattern provides maximum isolation from nearby vocalists or instruments. It combines automatic frequency management with true digital diversity for a rock-solid wireless signal with exceptional digital audio clarity.

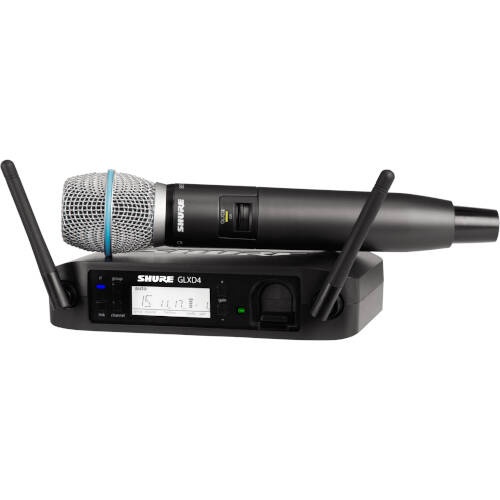

The GLXD24/B87A combines digital audio clarity with reliable wireless performance, automatic frequency management, and intelligent battery rechargeability in a system that's convenient to travel with, simple to operate, and ready to go at the push of a button. You can run up to four mics simultaneously in typical settings and up to 8 mics under controlled Wi-Fi conditions.
The transmitter provides up to 16 hours of operation on an SB902 rechargeable lithium-ion battery with a transmission range up to 200'.
In the Box:
Shure GLXD24/B87A Digital Wireless Handheld Microphone System with Beta 87A Capsule (2.4 GHz)
Shure GLXD4 Digital Wireless Receiver (2.4 GHz)
Shure GLXD2/B87 Digital Wireless Handheld Microphone Transmitter with Beta 87A Capsule (2.4 GHz)
Swivel Adapter Mic Clip
Shure SB902 Rechargeable Lithium-Ion Battery for GLX-D and MXW2 Wireless Transmitters
USB Charging Cable
Shure PS43US 15-VDC Power Supply for Shure Wireless Receivers
Carrying CaseSystem
Wireless Transmission Digital 2.4 GHz
Included Transmitters 1 x Handheld
Diversity True Digital Diversity
RF Channel Scanning Auto-Scan
Max Operating Range 200' / 61 m (Line of Sight)
Max Microphones per Band 8
Latency 4 to 7.3 ms
Dynamic Range 120 dBA
Modulation Proprietary
Receiver
Form Factor Tabletop
Antenna 2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
Number of Audio Channels 1

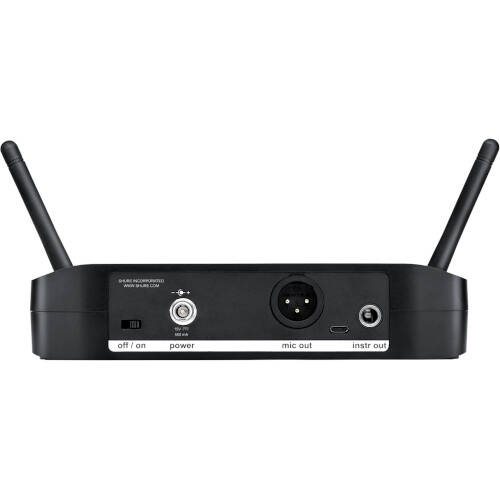

Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TRS Female Balanced/Unbalanced Output
Gain Range -20 to +40 dB (1 dB Steps)
Audio Output Level XLR Output:
0 dBV
1/4" Output:
+8.5 dBV
Phantom Power Protection On 1/4", XLR Outputs
Frequency Response 20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity 1 x Micro-USB (Host Connection)
Impedance XLR Output:
100 Ohms (Balanced)
1/4" Output:
100 Ohms (Balanced)
50 Ohms (Unbalanced)
RF Output Power 10 mW (EIRP)
Spurious Rejection: >35 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 14 to 18 VDC at 550 mA, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing Plastic
Dimensions 7.2 x 1.6 x 4.6" / 183 x 40 x 117 mm
Weight 10.1 oz / 286 g

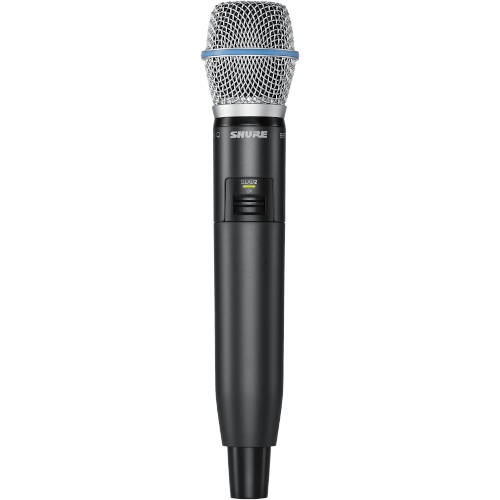

Transmitter
Form Factor Handheld
RF Output Power 10 mW (EIRP)
Audio I/O None
Muting Off/On Switch
Gain Range -18 to +42 dB (1 dB Steps)
Sync Method Proprietary
Antenna 1 x Internal, Fixed (Handheld)
Power Requirements Battery
Battery Type 1 x Shure SB902 (Included, Replaceable)
Battery Charging Time .25 to 3 Hours
Approx. Battery Life 16 Hours (Lithium Rechargeable)
USB/Lightning Connectivity 1 x Micro-USB (Charging)
Display & Indicators 1 x LED (Battery Status, Sync)
Housing Plastic
Dimensions 2 x 9.9 x 1.5" / 51 x 252 x 37 mm (without Antennas)
Weight 9.4 oz / 267 g (without Batteries)
Microphone
Form Factor Handheld Capsule
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Supercardioid
Frequency Range 50 Hz to 20 kHz2.4GHz (2050-2700 MHz)
SNR 70.5 dB A-Weighted
Equivalent Noise Level 23.5 dB A-Weighted
Maximum SPL 140.5 dB SPL
Sensitivity -54.5 dBV/Pa
Dynamic Range 117 dB A-Weighted
