Shure GLXD24/B58A Digital Wireless Handheld Microphone System with Beta 58A Capsule

The Beta 58A dynamic vocal microphone is precision-engineered for live performance and project studio recording. A tailored frequency response accentuates vocals, and the supercardioid pattern isolates from other sound sources. It combines automatic frequency management with true digital diversity for a rock-solid wireless signal with exceptional digital audio clarity.
The GLXD24/B58A combines digital audio clarity with reliable wireless performance, automatic frequency management, and intelligent battery rechargeability in a system that's convenient to travel with, simple to operate, and ready to go at the push of a button. You can run up to four mics simultaneously in typical settings and up to 8 mics under controlled Wi-Fi conditions.
The transmitter provides up to 16 hours of operation on an SB902 rechargeable lithium-ion battery with a transmission range up to 200'.
Digital Audio Clarity for Vocal and Speech Applications
Crystal-Clear Audio
The system transmits audio with a flat, 20 Hz to 20 kHz frequency response and 120 dB of dynamic range, leaving the sound of your mic unaffected by the wireless components.
Beta 58A Supercardioid Mic Capsule
The Beta 58A dynamic capsule is designed for close-up vocals, with brightened midrange and bass roll-off to control proximity effect. The capsule features a supercardioid polar pattern that ensures high gain before feedback, maximum isolation from other sound sources, and minimum off-axis tone coloration.

Fast to Set Up and Simple to Operate
In the Box:

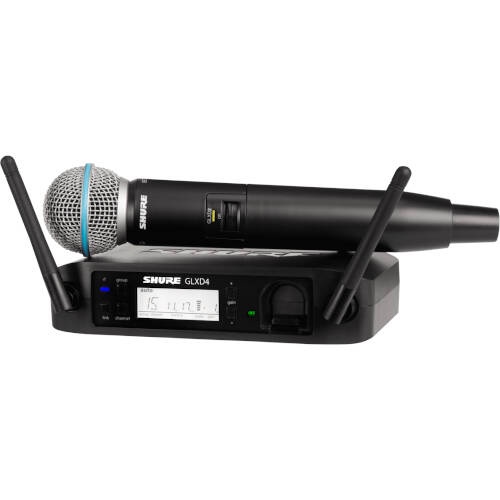

Shure GLXD24/B58A Digital Wireless Handheld Microphone System with Beta 58A Capsule (2.4 GHz)

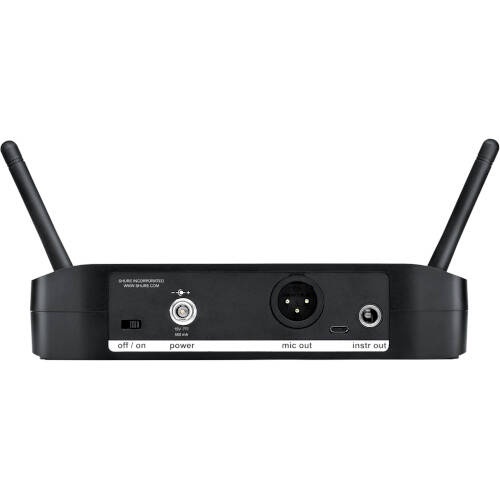

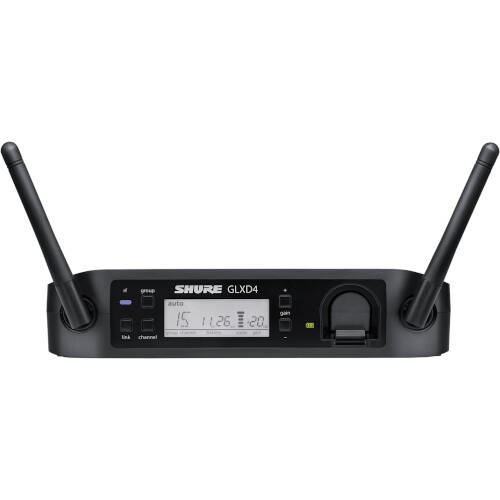

Shure GLXD4 Digital Wireless Receiver (2.4 GHz)

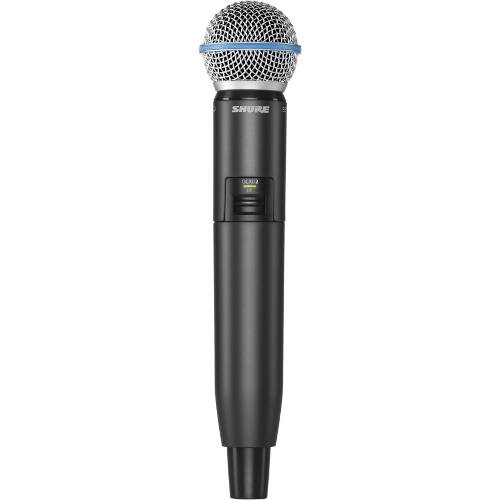

Shure GLXD2/B58 Digital Wireless Handheld Microphone Transmitter with Beta 58A Capsule (2.4 GHz)
Swivel Adapter Mic Clip
Shure SB902 Rechargeable Lithium-Ion Battery for GLX-D and MXW2 Wireless Transmitters
USB Charging Cable
Shure PS43US 15-VDC Power Supply for Shure Wireless Receivers
Carrying Case

Specifications

System
Wireless Transmission Digital 2.4 GHz

Included Transmitters 1 x Handheld

Diversity True Digital Diversity

Max Operating Range 200' / 61 m (Line of Sight)

Max Microphones per Band 8

Latency 4 to 7.3 ms

Dynamic Range 120 dBA

Modulation Proprietary

Receiver
Form Factor Tabletop

Antenna 2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)

Number of Audio Channels 1

Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TRS Female Balanced/Unbalanced Output

Gain Range -20 to +40 dB (1 dB Steps)

Audio Output Level XLR Output:
0 dBV

1/4" Output:
+8.5 dBV
Phantom Power Protection On 1/4", XLR Outputs

Frequency Response 20 Hz to 20 kHz (Dependent on Mic)

USB/Lightning Connectivity 1 x Micro-USB (Host Connection)

Impedance XLR Output:
100 Ohms (Balanced)

1/4" Output:
100 Ohms (Balanced)
50 Ohms (Unbalanced)

RF Output Power 10 mW (EIRP)

Spurious Rejection: >35 dB

Power Requirements AC/DC Power Adapter

AC/DC Power Adapter 14 to 18 VDC at 550 mA, Center-Positive (Included)

AC Input Power 100 to 240 VAC, 50 / 60 Hz

Display & Indicators1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)

Housing Plastic

Dimensions 7.2 x 1.6 x 4.6" / 183 x 40 x 117 mm

Weight 10.1 oz / 286 g

Transmitter
Form Factor Handheld

RF Output Power 10 mW (EIRP)

Audio I/O None

Muting Off/On Switch

Gain Range -18 to +42 dB (1 dB Steps)

Sync Method Proprietary

Antenna 1 x Internal, Fixed (Handheld)

Power Requirements Battery

Battery Type 1 x Shure SB902 (Included, Replaceable)

Battery Charging Time .25 to 3 Hours

Approx. Battery Life 16 Hours (Lithium Rechargeable)

USB/Lightning Connectivity 1 x Micro-USB (Charging)

Display & Indicators 1 x LED (Battery Status, Sync)

Housing Plastic

Dimensions 2 x 9.9 x 1.5" / 51 x 252 x 37 mm (without Antennas)

Weight 9.4 oz / 267 g (without Batteries)
