Everything great about PATCH... Expanded
One Switch, One Multi Purpose LED Indicator
Because less is moreLocking USB Connector *Cable Included
Never risk disconnectionLong Distance Control No Problem
Additional CAT5 Network Connection IncludedFront IO Access
Anything in your Analog Matrix at AnytimeRedesigned Airflow
Cooling without compromiseMore Room. More Power.
Built In Power SupplyYour Analog Consoles New Companion
Existing Patchbays? Remove, Replace & EmbraceIn the Box:
PATCH XT - (3U Hardware Rack Unit) Dimensions: 19" (W) x 5.25" (H) x 12" (D)
USB 2.0 - (6 ft) Host Control Cable (USB-A to USB-B) w/ Locking USB Connection
Power Supply - Internal Power (110V or 220V) Power Supply
Power IEC Cable - (Shipped with IEC Plug based upon customer region)
6 Step Quick Start Setup Guide
Hardware Index Setup TemplateComputer Connectivity: USB 2.0
Compatibility: OSX 10.7 Lion & Newer / Windows 7 & Newer
Software: PATCH APP v2.0 (Online Download) - *iOS iPad Coming Soon*
Chassis: 3U Rackmount (13" Deep)
Patch Point Connections: 192 Total - 96 Inputs / 96 Outputs (Expandable with all PATCH Models)
48v Phantom Power: 32 Channels Independently Controllable

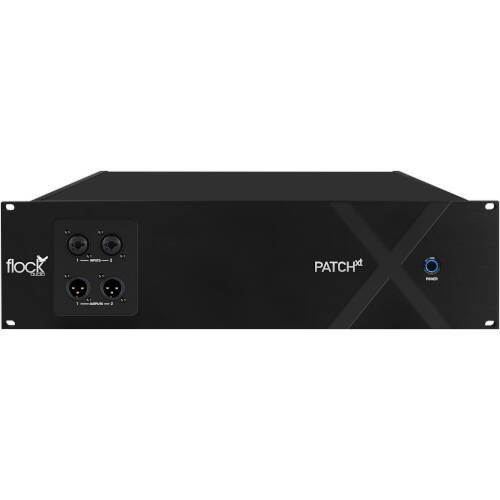

Front Connectors: 2x Combo TRS/XLR Inputs & 2x XLR Outputs
D/A or A/D Conversion: No AD/DA Conversion, 100% Analog, Sonically Transparent Audio Path
Routing System: Patended Flock Audio Matrix Technology

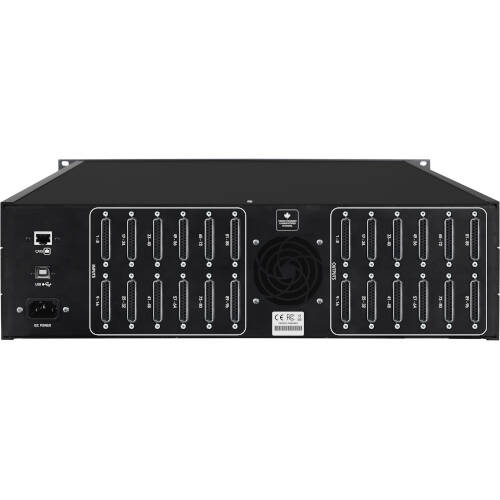

Analog Connections: DB-25/D-SUB Female Connectors (Standard Tascam Wiring Pinout)
