Flock Audio PLT Patch LT Compact Digitally Controlled Analogue Signal Path Routing System

S$ 3,479.00
(S$ 3,479.00 excl GST)

Not shipping to UNITED STATES OF AMERICA Not refundable/exchangeable

Add to cart Add to wishlist

What?! Seen it cheaper somewhere?
Please tell us so we can try to match it!

Key Features:

32 Point Connections (16 Inputs / 16 Outputs)
DB-25/D-SUB Tascam Standard Pinout Format Connectors
16 Independent Channels of 48V Phantom Power
Front Panel - 1 Combo TRS/XLR Input & 1 XLR Output

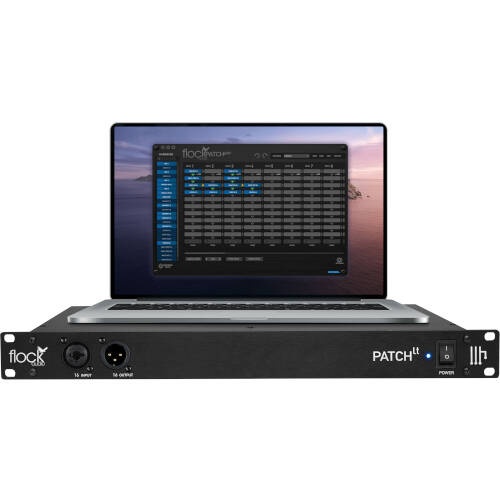

PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon)
Create, Store & Recall Routings in Seconds
Create Complex Multing Combinations w/ No Impedance Issues
No AD/DA Conversion, 100% Transparent Analog Signal Path
Patented Flock Audio Matrix Technology (Same as PATCH)
Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)
External 5Pin 24VDC Power Supply w/ IEC Cable Included

Show more Show less

Everything you love about PATCH... Just more Compact!
Just enough IO to create a masterpiece...

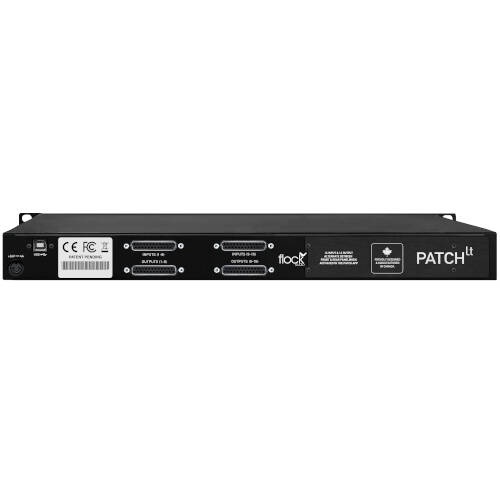

Standard Tascam 25 Pinout Wiring Format DB-25/D-SUB Connectors.
4 Cables give you access to the analog routing matrix of your dreams.
Anything Connected... Anytime

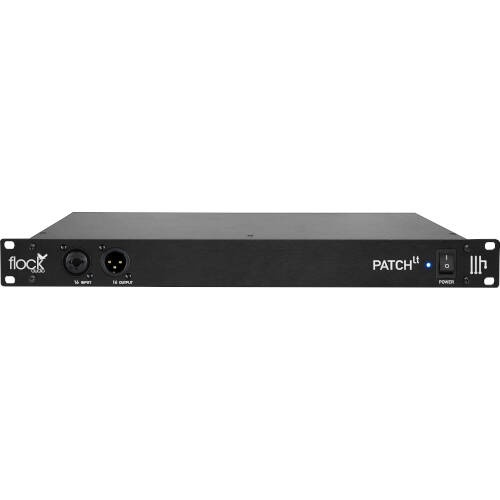

Available IO located right on the front panel for quick hardware, instruments or microphone integration into your routing system.
Out of sight, out of mind.
The same reliable connections as PATCH, designed into PATCH LT.
Power Supply & USB Cables Included
Different Models...Same Quality
The PATCH LT System uses the same Matrix Technology as our flagship routing system PATCH, used by hundreds of audio engineers worldwide. No matter the model, rest assured every system is a PATCH front to back.
We believe every audio engineer, whether developing their craft in the basement or award-winning professional studio, deserves superior recording tools.

In the Box:
PATCH LT - (1U Hardware Rack Unit) Dimensions: 19" (W) x 1.75" (H) x 8" (D)
USB 2.0 - (10 ft) Host Control Cable (USB-A to USB-B)
Power Supply - 24VDC (110V or 220V) Power Supply
Power IEC Cable - (Shipped with IEC Plug based upon customer region)
6 Step Quick Start Setup Guide
Hardware Index Setup Template

Specifications

Computer Connectivity: USB 2.0

Compatibility: OSX 10.7 Lion & Newer / Windows 7 & Newer

Software: PATCH APP v2.0 (Online Download) - *iOS iPad Coming Soon*

Chassis: 1U Rackmount (8" Deep)

Patch Point Connections: 32 Total - 16 Inputs / 16 Outputs (Expandable with all PATCH Models)

48v Phantom Power: 16 Channels Independently Controllable

Front Connectors: 1x Combo TRS/XLR Inputs & 1x XLR Outputs

D/A or A/D Conversion: No AD/DA Conversion, 100% Analog, Sonically Transparent Audio Path

Routing System: Patended Flock Audio Matrix Technology

Analog Connections: DB-25/D-SUB Female Connectors (Standard Tascam Wiring Pinout)

Power Supply: External 24 VDC Power Supply w/ 5 Pin Threaded Locking Connector

Flock Audio PTH Patch Digitally Controlled Analogue Signal Path Routing System

Flock Audio PXT Patch XT Digitally Controlled Analogue Signal Path Routing System
