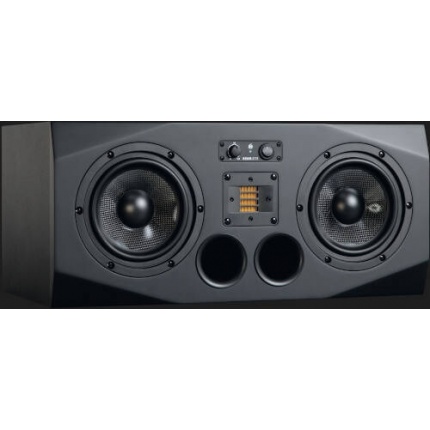

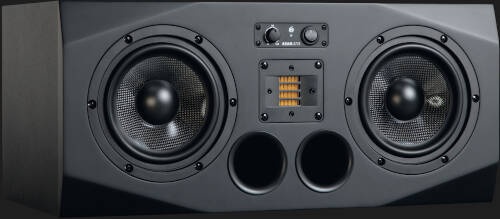

ADAM AUDIO A77X
The A77X is a horizontally designed monitor that combines all of the technical innovations in the AX-Series. Due to its powerful, compression-free sound reproduction and excellent radiation characteristics, it is suitable both for nearfield and midfield monitoring.The special feature of the A77X is its 2 1⁄2-way system. Both 7” woofers start to work together at 38 Hz and at 400 Hz one woofer fades out and only the second woofer continues to operate in the midrange up to 3 kHz. This prevents interferences and possible phase cancellation in the critical midrange. Even though frequency transitions and potential distortions lie outside these areas, the human ear is particularly sensitive to midrange frequencies.
Especially noteworthy in the A77X is the extremely wide stereo foundation and brilliant stereo imaging. Treble and mids are reproduced with three-dimensional realism and the lows are, as expected from a double woofer design, massive without compromising on precision.
STATE OF THE ART TECHNOLOGY
ADAM Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.In the Box:
Adam Professional Audio A77XL 3-Way Active Studio Monitor (Single/Left)
Power CordNot in the Box
Microphone and Signal CablesWOOFER
Number 2
Basket Ø 7" (175 mm)
Voice Coil Ø 1.5" (38 mm)
Cone Material Carbon / Rohacell / Glass Fiber
TWEETER
Number 1
Type X-ART
Diaphragm Area 4 inch² (2420 mm²)
Equiv. Diaphragm Ø 2" (56 mm)
Velocity Transform Ratio 4:1
Diaphragm Weight 0.17 g
BUILT-IN AMPLIFIERS
Woofer 1
Type PWM
Amp. Power RMS / Music 100 W / 150 W
Subwoofer 1
Type PWM
Amp. Power RMS / Music 100 W / 150 W
Tweeter 1
Type A/B
Amp. power RMS / music 50 W / 75 W
CONTROL OPTIONS
Input Sensitivity -∞ to +14 dB
High Shelf EQ > 5 kHz ±6 dB
Low Shelf EQ 300 Hz ±6 dB
Tweeter Gain ±4 dB

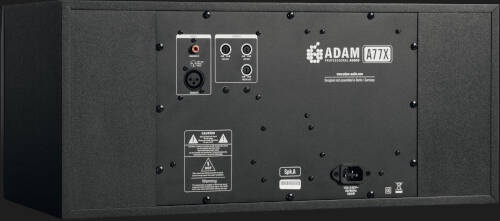

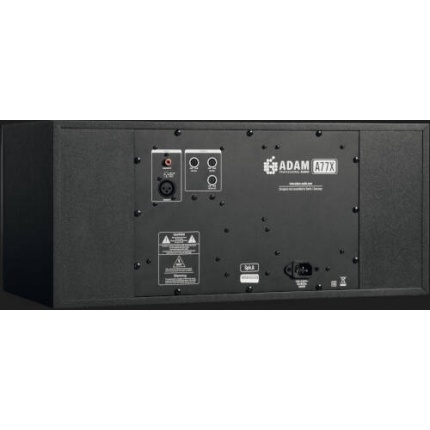

INPUT CONNECTORS
Analog XLR / RCA
GENERAL DATA
Frequency Response 38 Hz - 50 kHz (-10 dB)
THD 90 dB / 1 m > 100 Hz ≤0.5 %
Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m ≥114 dB
Max. SPL per pair at 1 m ≥122 dB
Crossover Frequencies 0.4 / 3.0 kHz
Input Impedance 30 kOhm
Panel Front
Weight 28.2 lb (12,8 kg)
Magnetically Shielded No
Height x Width x Depth 9.5" (235 mm) x 21" (530 mm) x 11" (280 mm)
Delivery Contents Power cord, manual
