ADAM Audio A5X 5.5

ADAM AUDIO A5X
The A5X is popular among professionals working in television studios and remote broadcast vans. The A5X can also be found in numerous home/project studios around the world. Its open, powerful sound makes the A5X a trustworthy and useful tool for multimedia applications as well.
Like all models of the AX-Series, the A5X is equipped with ADAM Audio‘s proprietary X-ART tweeter. One 5.5“ bass/midrange woofer works below 2.5kHz and is driven by a 1.5“ voice coil and a powerful 50 Watt PWM amplifier. Its acoustic qualities give you a clear picture of the smallest changes in your mix and the sonic results. Despite all that it does, the A5X is not fatiguing in long studio sessions.
Stereolink
The ‘Stereolink’ is a useful feature for desktop DAWs. Two additional input and output jacks for the second stereo channel allow you to control the volume for both monitors using the volume control of only one loudspeaker. The volume control of the other monitor only affects its own volume in order to easily compensate for differences in listening distance. Unlike the typical master-slave configuration, each A5X monitor is fully equipped and can function either as a master or a slave unit.
STATE OF THE ART TECHNOLOGY
ADAM Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.

In the Box:
Adam Professional Audio A5X 5.5" 100W Active 2-Way Studio Monitor (Single)
Power Cable
Not in the Box
Microphone and Signal Cables

Specifications

WOOFER
Number: 1

Basket Ø: 5.5" (145 mm)

Voice Coil Ø: 1.5" (32 mm)

Cone Material: Carbon / Rohacell / Glass Fiber

TWEETER
Number: 1
Type: X-ART

Diaphragm Area: 4 inch² (2420 mm²)

Equiv. Diaphragm: Ø 2" (56 mm)

Velocity Transform Ratio: 4:1

Diaphragm Weight: 0.17 g

BUILT-IN AMPLIFIERS
Woofer: 1

Type: PWM

Amp. Power: RMS / Music 50 W / 75 W

Tweeter: 1

Type: A/B

Amp. Power: RMS / Music 50 W / 75 W

CONTROL OPTIONS
Input Sensitivity: -∞ to +14 dB

High Shelf EQ: > 5 kHz ±6 dB

Low Shelf EQ: 300 Hz ±6 dB

Tweeter Gain: ±4 dB

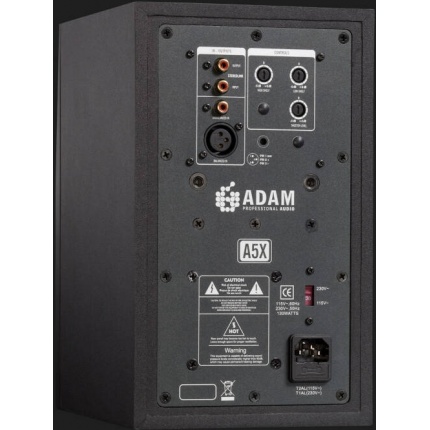

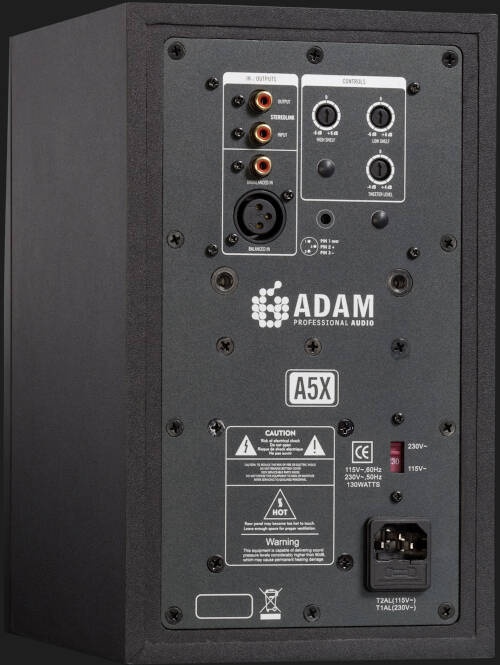

INPUT CONNECTORS
Analog: XLR / RCA

GENERAL DATA
Frequency Response: 50 Hz - 50 kHz (-10 dB)

THD: 90 dB / 1 m > 100 Hz ≤0.6 %

Max. SPL with sine wave acoustic: 100 Hz to 3 kHz at 1 m ≥102 dB

Max. SPL per pair: at 1 m ≥110 dB

Crossover Frequencies: 2.5 kHz

Input Impedance: 30 kOhm

Panel: Front

Stereolink: Yes

Weight: 14.6 lb (6,6 kg)

Magnetically Shielded: No

Height x Width x Depth :11" (280 mm) x 6.5" (170 mm) x 8.5" (220 mm)

Delivery Contents: Cinch-cable, power cord, manual

ADAM Audio A5X 5.5" 100W Active 2-Way Studio Monitor (Single)
