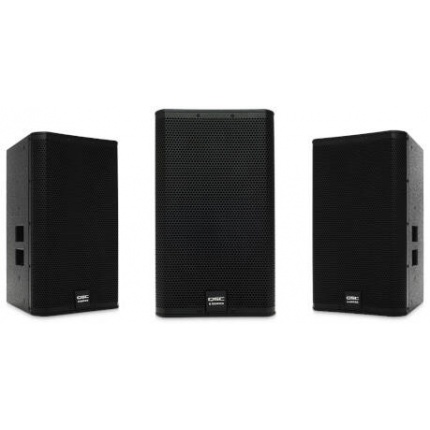

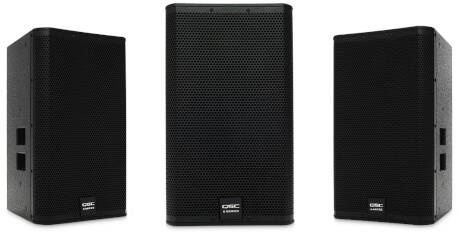

The E115 is a trapezoidal, two-way loudspeaker using a 15-inch, 500W, die-cast aluminum frame woofer with a 3.5-inch voice coil. It is intended for use when high-power and authoritative low-end are needed from a full-range loudspeaker. A 2.8” compression driver attached to the 75° DMTTM waveguide assures that even distant listeners will be well covered.
E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music, and karaoke.
In the Box
QSC E115 15" Two-Way Passive Loudspeaker (Black)
Limited 3-Year WarrantyNot in the Box
XLR & Signal CablesConfiguration: 1 x 15-inch, 2-way, passive
Frequency Response (-6 dB): 55 Hz - 20 kHz
Frequency Range (-10 dB): 43 Hz – 20 kHz
Power Capacity1 (Continuous/Peak): 500 W / 2000 W
Sensitivity: 97 dB, 1 w @ 1 m
Coverage Angle: 75° conical DMT
Output2 (Peak SPL @ 1m): 130 dB
Drivers: LF 381 mm / 15-inch driver with 89 mm 3.5-inch voice coil, HF 38 mm / 1.5-inch exit, 71 mm / 2.8-inch voice coil, compression driver
Nominal Impedance: 8 Ω
Cross-over: Full-range only, 1.55 kHz
Input Connectors: 2 x NL4 1 x barrier strip
Enclosure: Trapezoidal, plywood, black texture paint fi nish. Two side mounted handles. Perforated, powdercoated steel grille with foam lining.
Dimentions: 420 x 716 x 445 mm (16.5 x 28.2 x 17.5 in)
Net Weight: 31 kg / 68 lb
Shipping Weight: 34 kg / 75 lb
