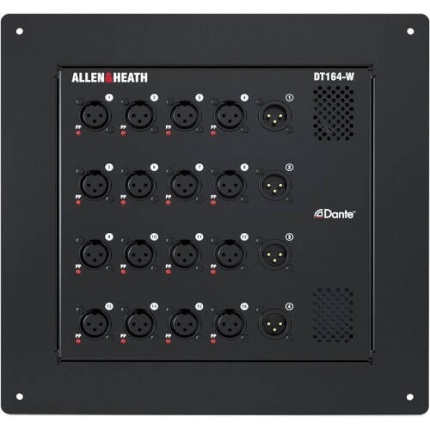

Allen & Heath DT164-W 16x4 Wallmount Dante/AES67 Audio I/O Expander With 16 XLR Input and 4 XLR Output

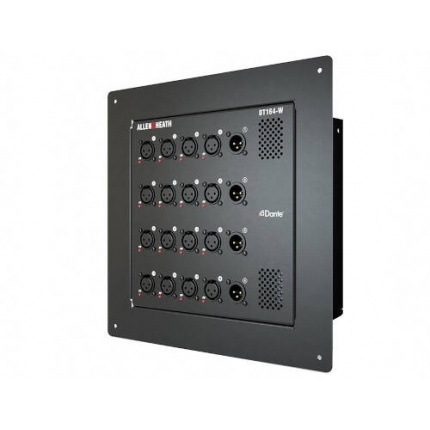

The DT164-W provides 16 microphone preamps and 4 line outputs in a versatile wall-mount design for permanent installation. The reversible mounting frame allows for in-wall or on-wall mounting. With custom brackets, the unit can be fitted in a standard NEMA box, or mounted in a floor pocket for stage use. The IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation, and a DC 12V backup supply is also provided.
DT164-W offers the acclaimed Allen & Heath preamps, complete with 96kHz converters for best-in-class sound quality over Dante, plus Primary and Secondary ports for daisy-chain or redundancy through secure EtherCon connectors.
Up to 16 units can be added to an AHM-64, SQ, Avantis or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card.
DT Preamp Control software allows remote control of multiple DT expanders and enables the use of DT expanders with Dante-equipped 3rd party digital mixers and sound management systems.

Specifications

Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
Mic/Line Preamp: Fully recallable
Input Sensitivity: -60 to +15dBu
Analogue Gain: +5 to +60dB, 1dB steps
Pad: -20dB Active PAD
Maximum Input Level: +30dBu (PAD in)
Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
Mic EIN: -127dB with 150Ω source

Analogue XLR Outputs: Balanced, Relay protected
Output Impedance: 75Ω
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +22dBu
Residual Output Noise: -92dBu (muted, 20-20kHz), -90dBu (muted, 20-40kHz)

Dante
Sample rate: 48kHz or 96kHz
Bit Depth: 24 Bit
Gain, Pad, 48v Control: Allen & Heath dLive, Avantis, AHM-64 or SQ system

Operating Temperature Range: 0°C to 40°C (32°F to 104°F)

Power
Mains Voltage Operating Range: 100-240V AC, 50/60Hz
Mains Power Consumption: 40W max
DC Input: 12V DC, 3A max

Dimensions and Weight (Width x Depth x Height x Weight): 210 x 87 x 210 mm x 3.2kg (8.25” x 3.5” x 8.25” x 7lbs)
