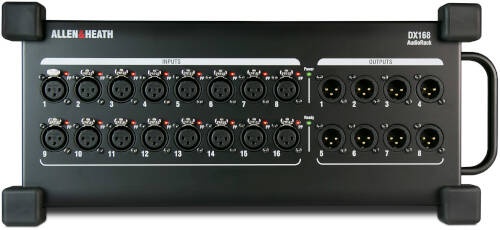

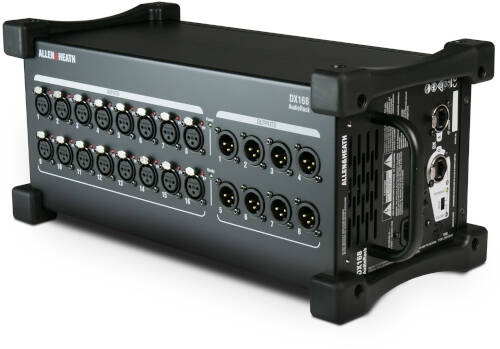

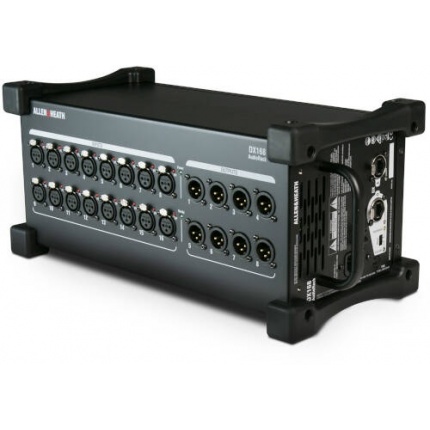

The DX168 is a rugged, 96kHz portable expander for adding remote I/O to a dLive, Avantis, or SQ system, or to the AHM-64 audio matrix processor. Each DX168 features 16 mic preamps with independent Phantom Power LED indicators, plus 8 XLR line outs. The DX168 connects via a single Cat5e cable to the dLive Surface, MixRack, SQ mixer, Avantis mixer, or upstream DX168 via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX168 for additional remote I/O. The Expander’s rugged design, with hard-wearing rubber bumpers, allows it to be placed directly on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, the DX168 offers the convenience and portability needed in rental, education, houses of worship, and many other environments. An optional 4U rack mounting kit is available which allows installation in industry-standard 19-inch racks.
Authorised Singapore Distributor Stock. Buyer beware of parallel imports without local support.
With dLive
Up to 6 DX168 units can be connected directly to a dLive system – 4 via the MixRack and 2 via the Surface – allowing up to 96 remote inputs and 48 remote outputs in addition to those provided by the MixRack and Surface. More units can be connected via the dLive DX Link card or DX Hub.With Avantis
Two units can be daisy-chained and connected directly to an Avantis SLink port. Up to 16 DX168 units can be added to an Avantis system via DX Link card and/or DX Hubs.With SQ
Two units can be daisy-chained and connected directly to an SQ SLink port, with the optional SLink card for SQ enabling more connections. For a more distributed system, a DX Hub can handle up to 8 DX168 units which can be freely patched to the SQ’s 48 input channels.With AHM-64
Two units can be daisy-chained and connected directly to an AHM-64 SLink port. Up to 8 DX168 units can be added to an AHM-64 system via a DX Hub and freely patched to the 64 input channels.In the Box
Allen & Heath DX168 Portable DX Expander for dLive Mixing Systems (16 Input / 8 Output)Inputs
XLR Mic/Line Inputs: Balanced, +48V Phantom Power
Mic/Line Preamp: Fully recallable
Input Sensitivity: -60 to +15dBu
Analogue Gain: +5 to +60dB, 1dB steps
Pad: -20dB Active PAD
Maximum Input Level: +30dBu (PAD in)
Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)Mic/Line Channel noise: 22-22kHz, Direct Out @ unbalanced out
Mic EIN: -127dB with 150Ω source
Unity gain (Pad in): -90dBu
Low gain (5dB, Pad out): -96dBu
Mid gain (30dB, Pad out): -90dBuMic/Line Channel THD+N: 22-22kHz, Direct Out @ unbalanced out
Unity gain (Pad in): 0.003% -88dBu @ 1kHz, 0dBu output
Low gain (5dB, Pad out): 0.002% -93dBu @ 1kHz, 0dBu output
Mid gain (30dB, Pad out): 0.003% -88dBu @ 1kHz, 0dBu output
Sample Rate: 96kHzOutputs
XLR Outputs: Balanced, Relay protected
Output Impedance: 75Ω
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +22dBu
Residual Output Noise -92dBu (muted, 20-20kHz)
Operating Temperature 0 deg C to 35 deg C (32 deg F to 95 deg F)
Mains Power 100-240V, 50/60 Hz, 40W maxDimensions and Weight (Width x Depth x Height x Weight): 410mm x 190mm x 185mm x 4.6kg (16.1” x 7.5” x 7.3” x 10.1lbs)
