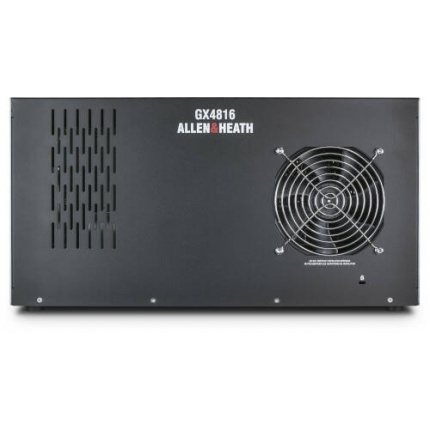

GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for SQ, Avantis, and dLive mixing systems, and for the AHM-64 audio matrix processor.

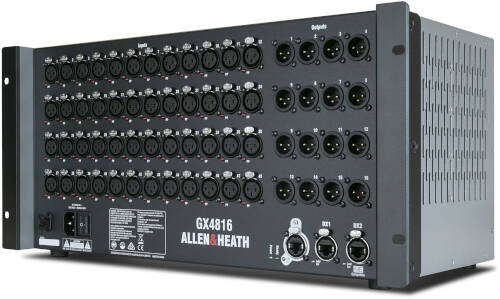

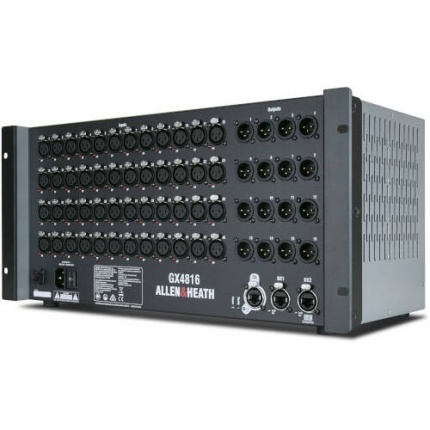

Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket when used with SQ or Avantis.
GX4816 connects via a single Cat5e cable to a SLink socket on an SQ, Avantis, or AHM-64, or to a gigaACE audio network card on a dLive system.
Connection to DX Expanders and the ME Personal Mixing System is also over Cat5e cable.
Inputs
Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
Mic/Line Preamp: Fully recallable
Input Sensitivity: -60 to +15dBu
Analogue Gain: +5 to +60dB, 1dB steps
Pad: -20dB Active PAD
Maximum Input Level: +30dBu (PAD in)
Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
Mic EIN: -127dB with 150Ω source
Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24VPower
Mains Voltage Operating Range: 100-240V AC, 50/60Hz
Mains Power Consumption: 80W maxOutputs
Analog XLR Outputs: Balanced, Relay protected
Output Impedance: 75Ω
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +21dBu
Residual Output Noise: -95dBu (muted, 22Hz-22kHz)Temperature
Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
