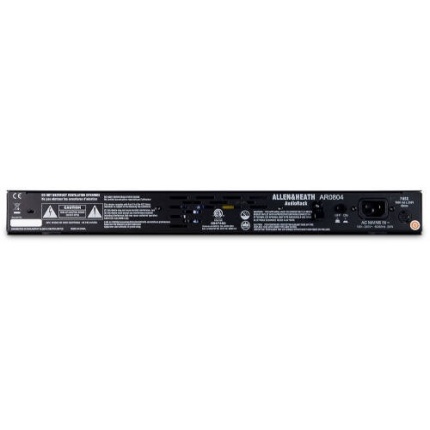

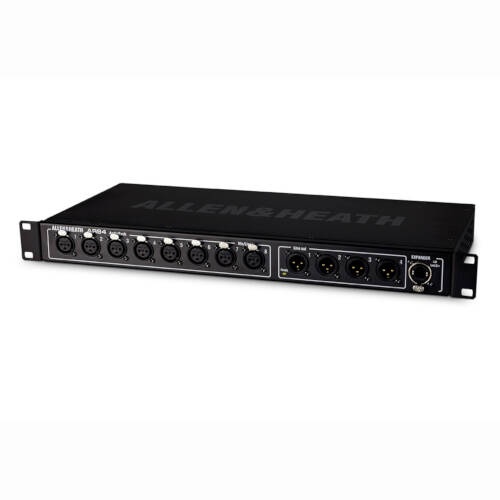

AR84 is an 8 XLR input, 4 XLR output AudioRack, compatible Qu, Avantis, and SQ mixers, and with the AHM-64 audio matrix processor.
Adding an AR84 to your system lets you position some of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol.
dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.
In the Box
Allen & Heath AR2412 24x12 Main Remote Stage Rack for GLD & Qu Mixers (Black)Inputs
XLR Mic/Line Inputs: Balanced XLR
Mic/Line Preamp: Fully recallable
Input Sensitivity: -60 to +15dBu
Analogue Gain: +5 to +60dB, 1dB steps
Pad: -20dB
Maximum Input Level: +32dBu
Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
Mic/Line Channel noise: 20-20kHz, Direct Out @ unbalanced out
Mic EIN: -127dB with 150Ω source
Unity gain (Pad in): -90dBu
Low gain (5dB, Pad out): -93dBu
Mid gain (30dB, Pad out): -89dBuMic/Line Channel THD+N: 20-20kHz, Direct Out @ unbalanced out
Unity gain (Pad in): 0.005% -86dBu @ 1kHz, 0dBu output
Low gain (5dB, Pad out): 0.003% -89dBu @ 1kHz, 0dBu output
Mid gain (30dB, Pad out): 0.004% -88dBu @ 1kHz, 0dBu outputOutputs
XLR Outputs: Balanced, Relay protected
Output Impedance: 75Ω
Nominal Output: +4dBu = 0dB meter reading
Residual Output Noise: -91dBu (muted, 20-20kHz)
Maximum Output Level: +22dBuOperating Temperature
0 deg C to 35 deg C
(32 deg F to 95 deg F)Mains Power
100-240V, 50/60 Hz, 20W max
