Specially designed for 12G-SDI
Excellent results in demanding tests.

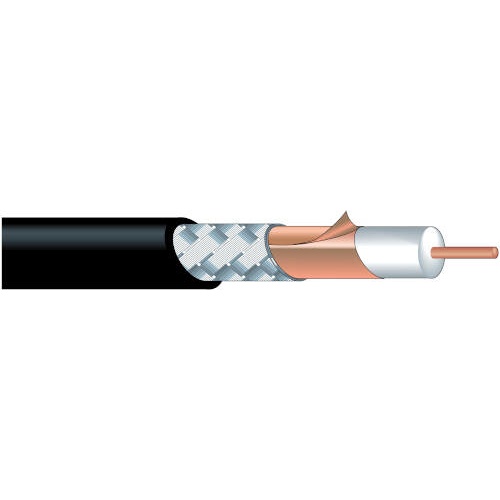

Copper foil and high-density tinned copper braided shielding
Highly-foamed multi-layer PE insulation
Flame resistance UL 1666 RiserIn the Box
Canare L-3.3CUHD 75-Ohm 12G-SDI UHD Video Coax Cable 100mIf you would like to purchase 200m lengths, please specify in the notes and add the appropriate quantity to match the amount you are purchasing.
-
Standard Length ft.(m)
328 (100)Nominal O.D.in.(mm)
0.217 (5.5)Weight lbs(kgs)/100m
9.04 (4.1)Inner Cond Conductor Comp.(AWG) Q'ty/mm
(21) 1/0.AInner Cond O.D.in.(mm)
0.030 (.75)Insulation O.D.in.(mm)
0.130 (3.3)Outer Conductors Shield Coverage & Comp.
Copper Laminated Tape + 0.12TA/8/16 (92%)Inner Cond.Resistance ohm/km
41.4Outer Cond.Resistance ohm/km
14.9Static Capacity(pF/m)
55Characteristic Impendence ohm
75Attenuation dB/100m(328ft)@6GHz
68.5
