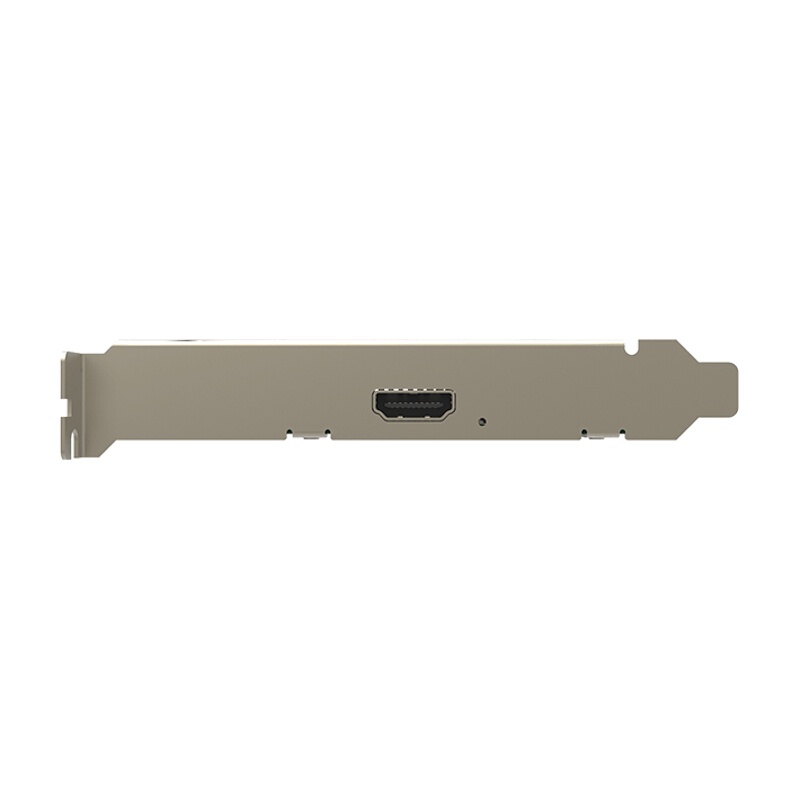

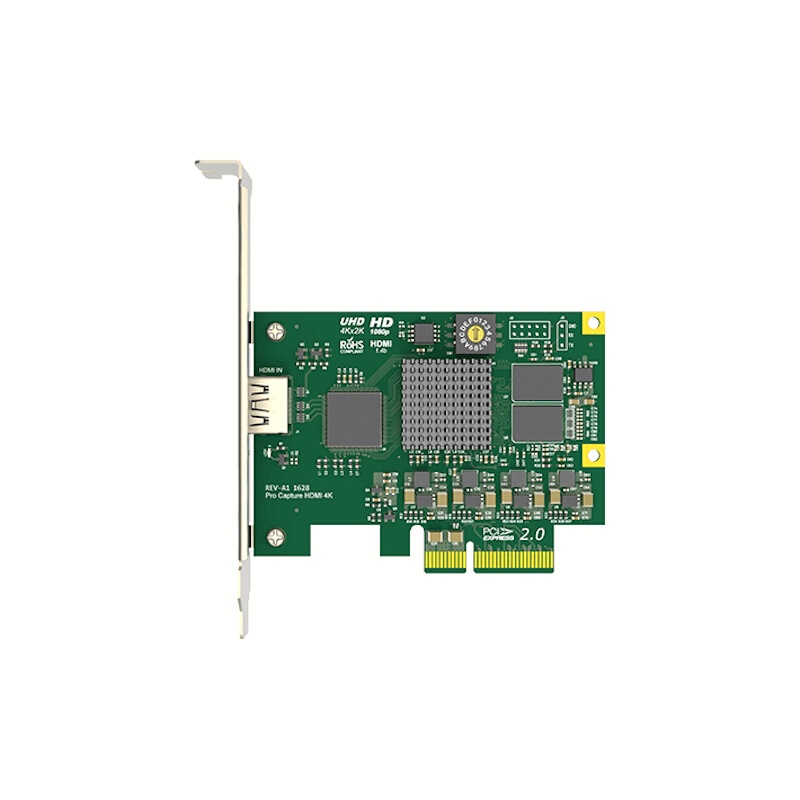

Magewell Pro Capture HDMI 4K PCIe Capture Card (1-Channel)

The Pro Capture HDMI 4K Capture Card from Magewell is a low-profile PCIe x4 card that allows for capturing a single channel of HDMI + embedded audio. The card supports extraction of audio formation information and channel status data, video timing information, 3D format information, and Sony/Canon DSLR timecode. The card is also capable of performing various video processing features, including cropping, scaling, deinterlacing, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition.

HDMI Features
297 MHz HDMI receiver
Adaptive HDMI equalizer
Supports customized EDID
Supports extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut info frames
Full colorimetry support
Supports 8-bit signals that use RGB/YUV 4:4:4 color sampling at pixel rate no more than 297 MHz
Supports 12-bit signals that use YUV 4:2:2 color sampling at pixel rate no more than 297 MHz
Supports 10/12-bit signals that use RGB/YUV 4:4:4 color sampling at pixel rate no more than 170 MHz
Supports extraction of audio formation information and channel status data
Supports extraction of video timing information
Supports extraction of 3D format information
Supports extraction of Sony/Canon DSLR timecode
Supports side-by-side half, top-and-bottom, frame packing 3D mode

Video Processing Features
Two video processing pipelines with 360 MP/s processing bandwidth for each one
Full 10-bit video processing
Wave, blend top and bottom field, top field only, and bottom field only deinterlacing modes
Auto or manual selection of input and output aspect ratio
Three aspect ratio conversion modes (ignore (anamorphic), cropping, or padding (letterbox or pillarbox))
Auto or manual selection of input color format and quantization range
Auto or manual selection of output color format, quantization range, and saturation range
Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Supports limited or full quantization range
Supports limited, full, and extended gamut saturation range
Supports PNG OSD image (up to 4096 x 2160)
Supports dynamic loading of RGBA OSD image via SDK

Multiple Cards per System
Supports multiple cards in one system
On-board rotary switch to set card number, with 16 positions from 0 to F
System hardware device tree will display 01: Pro Capture AIO when rotary switch is set to 1, and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)

Multiple Capture Streams
Unlimited capture streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, deinterlacing, and color adjustment settings for each individual stream

Ultra-Low Latency Support
Latency of 64 video lines
Partial notification mode in SDK

Timestamp & AV Synchronization
Hardware-based 100ns high-resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)

Video Output SG-DMA
Supports auto detection of Intel tiled GPU surface
Supports DirectGMA for AMD video adapter chipsets
Supports GPUDirect for NVIDIA video adapter chipsets
1200 MB/s per channel DMA bandwidth in PCIe 2.0 system and 800 MB/s per channel DMA bandwidth in PCIe 1.0 system

SDK
Pro Capture SDK for DirectShow for easy integration (Windows)
Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)

Windows Driver Tweaks
All options can be controlled by three levels of registry key: global level, product level, and device level
Video, audio, crossbar filter names can be customized via registry keys

Firmware Upgrade
Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (in most cases, even a reboot is not needed)
