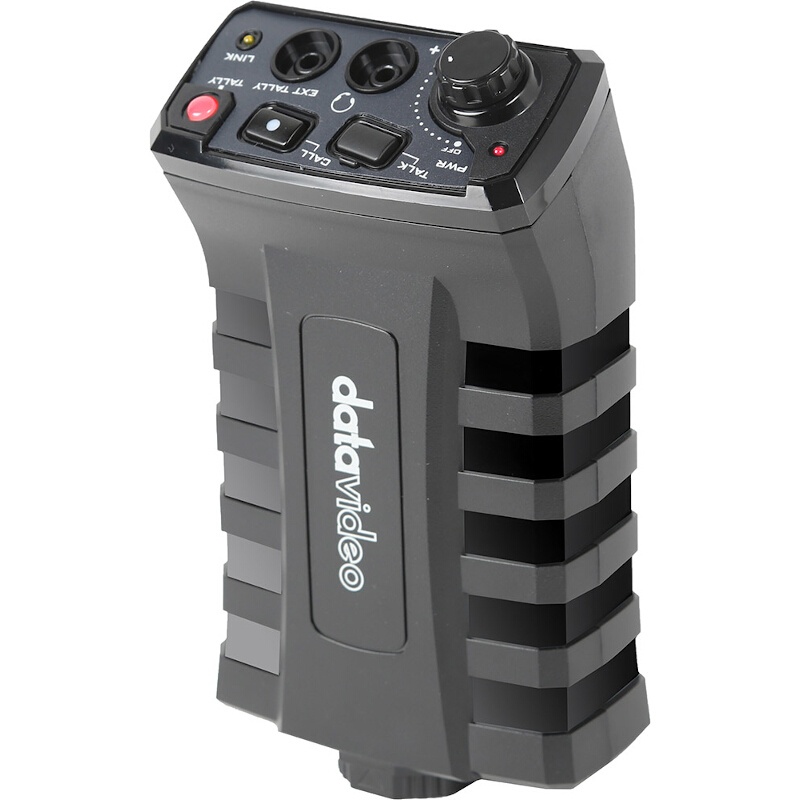

Communicate with clear audio and tally functions using the ITC-300 Digital Intercom System with the Digital Intercom Belt Pack from Datavideo. The belt pack allows you to control your communication using tally functions and a microphone headset while remaining mobile on set.
The included TD-3 tally light plugs into the 3.5mm tally jack and provides red, green, and yellow tally as well as incoming and outgoing call indicators. Talk and call buttons on top are easy to find in dark environments. The included headset/mic plugs into the 3.5mm audio jack and provides clear send/receive audio. A volume control knob controls the headphone volume.

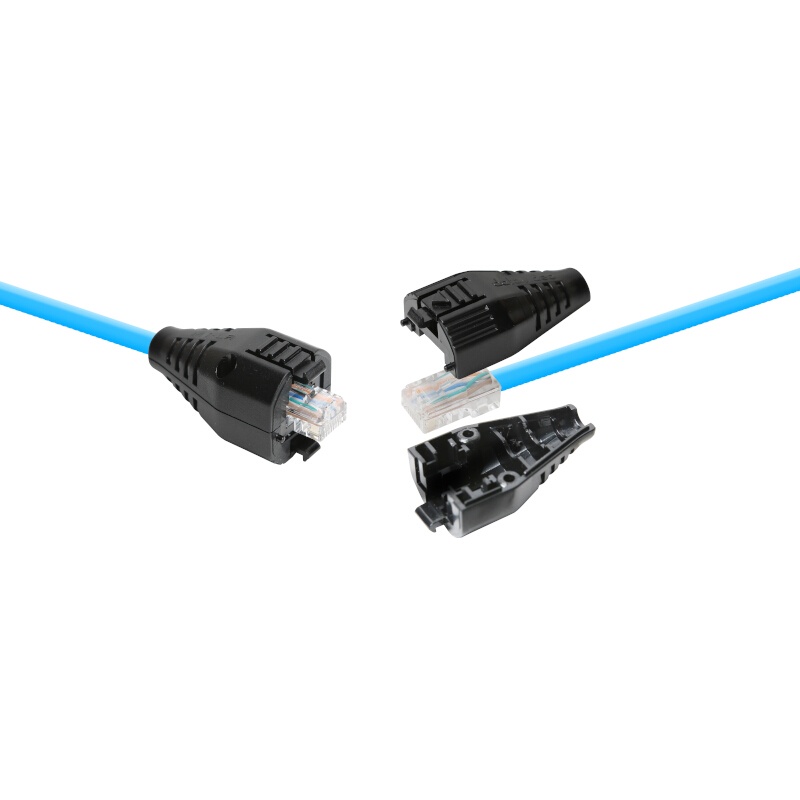

The unit is powered over the included Ethernet cables and the unit can be used up to 328' away from the ITC-300. Hook-and-Loop straps are included to fasten the pack and Ethernet connector shields are included to protect the Ethernet cable connectors.
In The Box:
1 x ITC-300SL Belt Pack
1 x Headset with microphone
1 x Tally LED Indicator
1 x GPI Cable
1 x Ethernet Cable (70ft. / 21m)
1 x Earphone Cable
1 x Black Velcro
1 x Velcro
4 x Ethernet Cable Connector SetCommunication
Call Button x 1
Talk Button x 1MIC / Headset
3.5mm Stereo Jack Socket x 1
(For Headphone / Microphone combination)
Headset Impedance 24 ohm 100mW(min)
Microphone Level -45.2dB
(Tip: Mic、Ring: Phone、Sleeve: GND)Tally Out Socket
3.5mm Jack Socket to connect to TD-3 Tally IndicatorVolume Control
VR with Multifunction Switch (Adjusts the volume of the headphones)Tally LED
Bi-Color LED – RED indicates LIVE/GREEN Indicates CUEDPower LED
Red lightLink LED
Yellow lightCall LED
Green light – Outgoing call
Red light – Incoming callPower

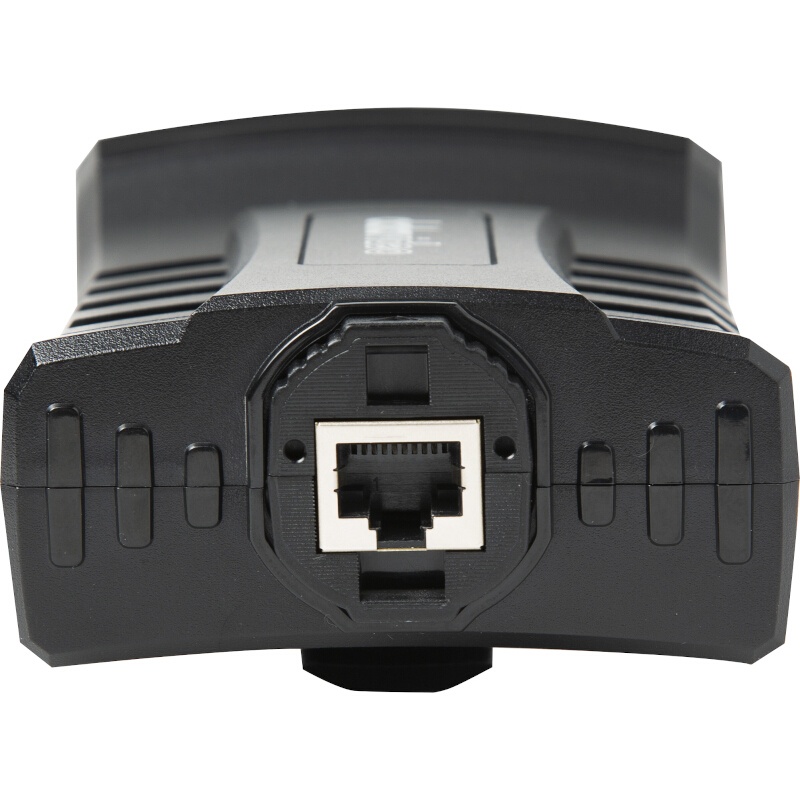

Ethernet RJ45 x 1 (11V~36V)Frequency Response
300 Hz~7 KHz, +/-3dBTHD
0.1% @1KHzS/N
>70dBOperating Range
Up to 100m between Base Station and SlaveOperating Temperature
0°C to 40°CStorage Temperature
-20°C to 60°CHumidity
10% to 80% (non-condensing)Dimension
81.2 x 142.6 x 49.6 mmWeight
230 g
