Designed to eliminate hum and buzz cause by ground loops, the IceCube IC-1 Balanced Line Isolator and Hum Eliminator from Radial Engineering can be inserted directly into your signal path via its glass-filled nylon XLR connectors. Its proprietary Eclipse transformer isolates the input from the output and blocks stray DC currents, providing a linear response from 20 Hz to 18 kHz. It can handle up to +10 dB at 20 Hz with less than 0.01% distortion.
The IceCube is made of solid 16-gauge steel and features a powder-coat finish. The steel provides electromagnetic shielding from nearby cables, motors, and power supplies.
FEATURES:
Eliminates hum & buzz caused by ground loops
Linear response from 20 Hz to 18 kHz
Able to handle pro output levels without choking
Plug & play easy to use with XLR in & out -
Radial Engineering IceCube Specifications:
Audio Circuit Type Passive, transformer based
Frequency Response 20 Hz to 20 kHz (± 1 dB)
Dynamic Range >135 dB
Maximum Input 15 dBu
Gain 0 dB / -5.7 dB 10 k / 600 ohm load
Clipping Level 25 dBu
Equivalent Input Noise 110 dBu
Distortion Intermodulation Distortion: 0.002% @ -10 dBu
Total Harmonic Distortion: 0.0006% 1 kHz @ -10 dBu
Input Impedance 8.66 kOhms with 10 kOhm load
Output Impedance 600 ohms nominal
Transformer Custom-made Eclipse

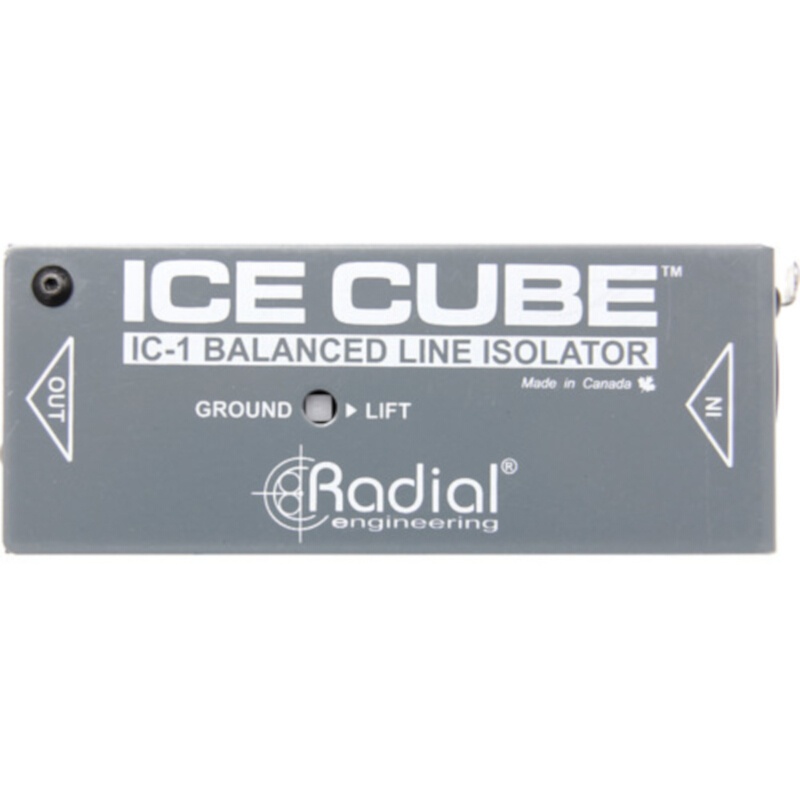

Ground Lift Disconnects pin-1 at XLR output

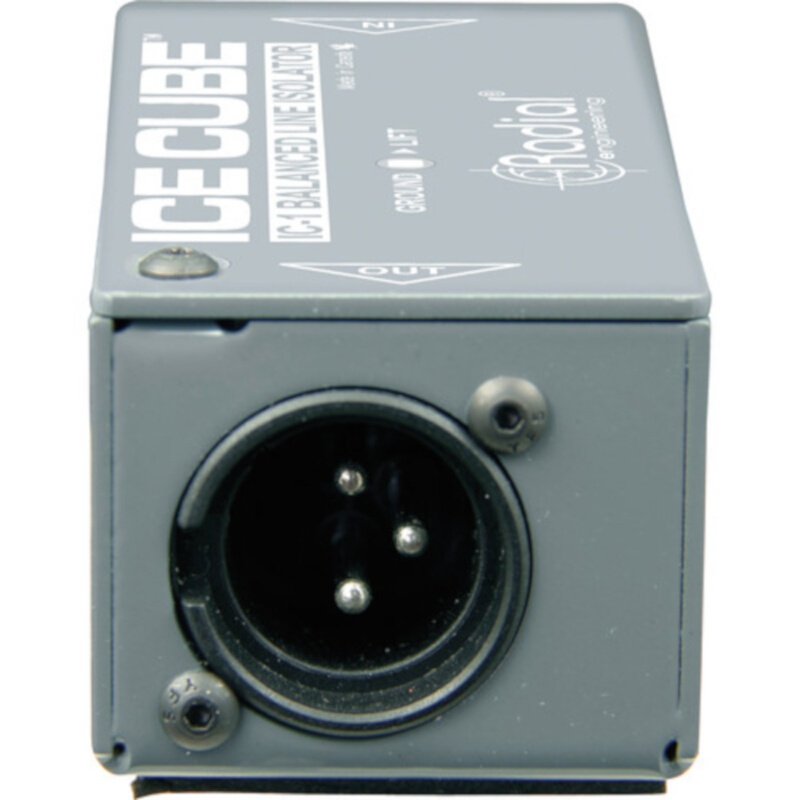

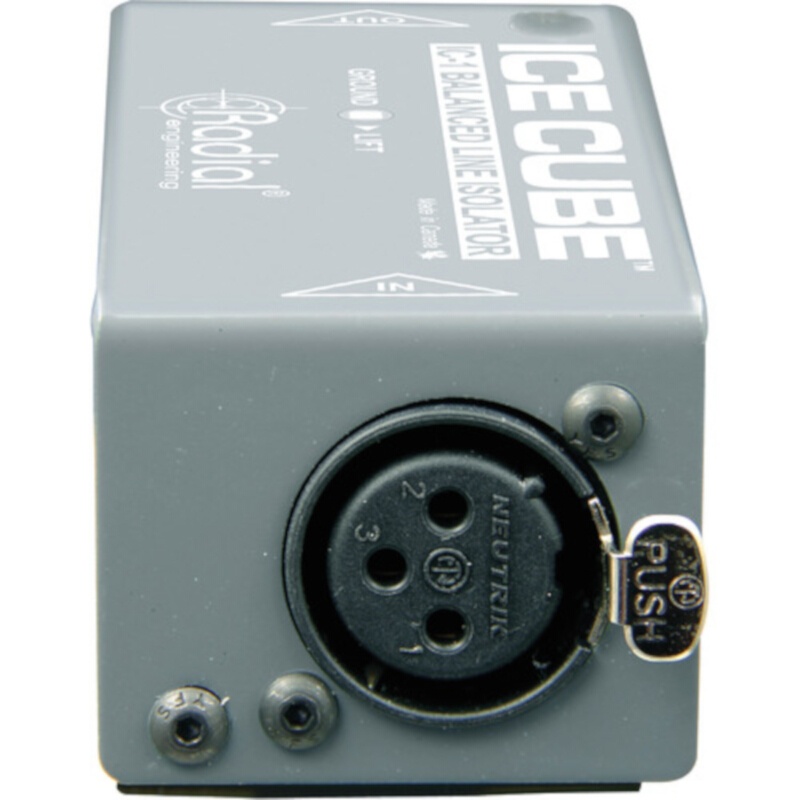

XLR Configuration AES standard: Pin-1 (Ground), Pin-2 (+), Pin-3 (-)
Environmental Conditions For use in dry locations only between 41 to 104°F (5 to 40°C)

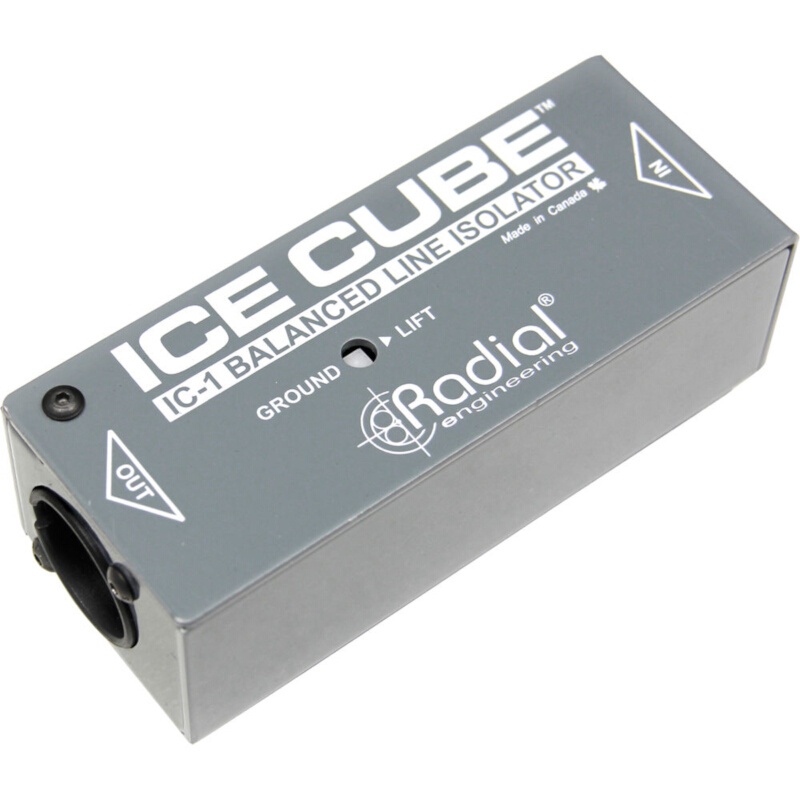

Construction 16-gauge steel chassis & outer shell
Finish Powder Coat
Dimensions (L x W x D) 4.2 x 1.32 x 1.6" (107 x 34 x 41 mm)
Weight 0.4 lb (0.18 kg)
