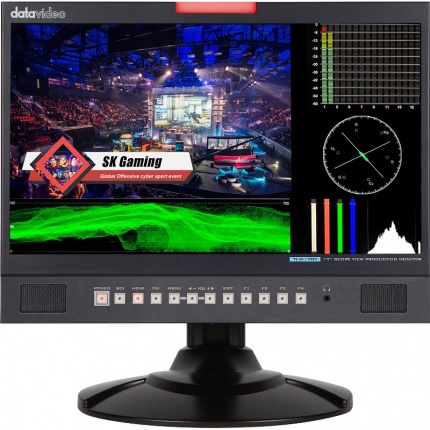

Datavideo TLM-170V 17.3" ScopeView Production Monitor (Desktop Style)

Add a high-quality 1080p display and professional features to your production with the desktop TLM-170V 17.3" ScopeView Production Monitor from Datavideo. The monitor features a 1920 x 1080 resolution display and supports up to 1080p60 video via a 3G/HD/SD-SDI input, two HDMI inputs, an HDMI output, and an SDI loop-through output. The inputs and outputs also support cross conversion so, for example, you can input via SDI and output to HDMI.

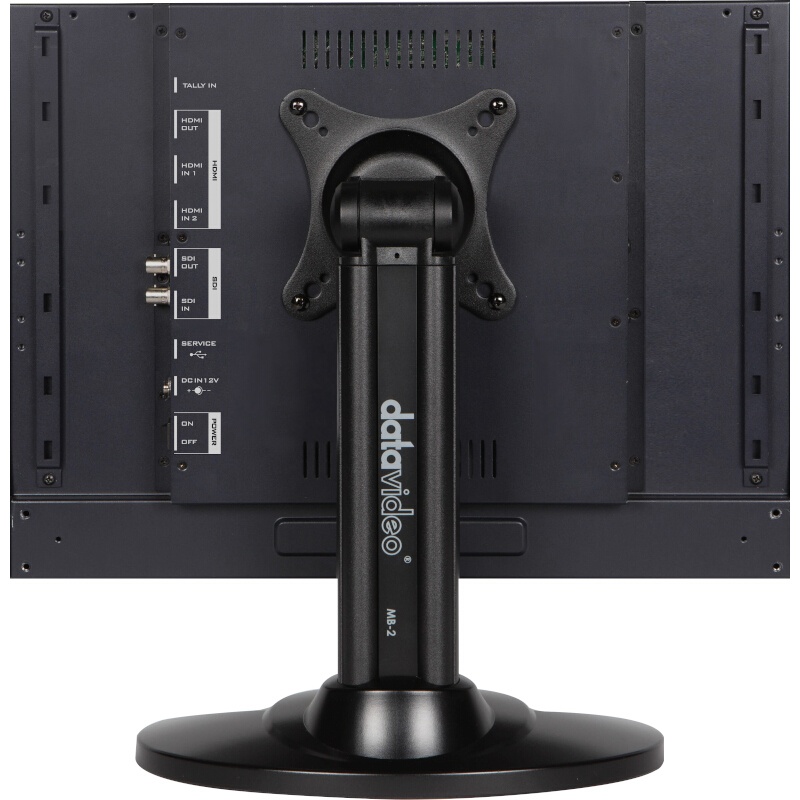

The monitor features a large, dual-color LED tally light on the front at the top, indicating live or cued status, that is controlled using the tally input on the back. The display features a ±89° angle of view, 300 cd/² brightness, a 700:1 contrast ratio, dual speakers, and a headphone jack. Image management features include pixel zoom up to 8x, blue only, markers, underscan, H/V delay, waveform, peaking, false color, image flip, safe frame, and more. The monitor comes with an adjustable, tiliting desktop stand.

Features:

1920 x 1080p IPS Panel Resolution
3G-SDI video input with 3G-SDI loop-through output
HDMI video input with HDMI loop-through output
SDI/HDMI cross-format conversion
Built-in tally with 3.5mm input for live broadcast
Brightness, contrast, color saturation, and LED backlight
Front panel headphone jack
User-defined F1/F2/F3/F4 shortcut keys
USB 2.0 firmware upgrade
Desktop stand included

Image Management Features:

Center marker
Aspect marker
Marker color
Underscan
Scan: Zoom, sspect, pixel-to-pixel
Aspect ratio selection
Freeze image
Check field
Focus assist
False color
Exposure
Histogram
Waveform
H/V delay
DSLR (5D2, 5D3)
Peaking
Exposure
RGB parade
Image flip
Audio meters
Color temperature selection
Gamma correction
Backlight adjustment

In The Box:

1 x AD Switch DC 12V
1 x Monitor Stand
2 x Velcro
