Datavideo TLM-102 10

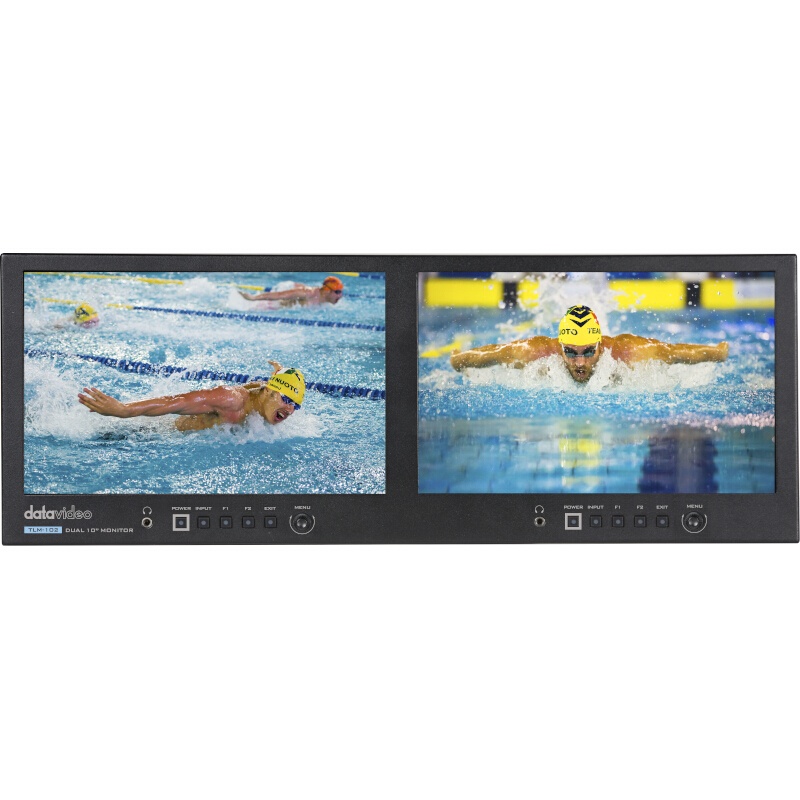

The 10" Dual IPS LCD Monitor from Datavideo is a rack-mounted monitoring unit designed for broadcast, video production, and A/V users. The monitors feature built-in vectorscope, waveform, and video signal converters. Each has one 3G/HD/SD-SDI input and one HDMI input, with loop-through output for both. Built-in signal cross conversion allows each monitor to use one input for display and the other for conversion. The 4 RU rackmount design offers a mounting solution for on-site monitoring, video walls, and production trucks.

Features:
1280 x 800 IPS panel resolution
Dual monitor
4 RU rackmount

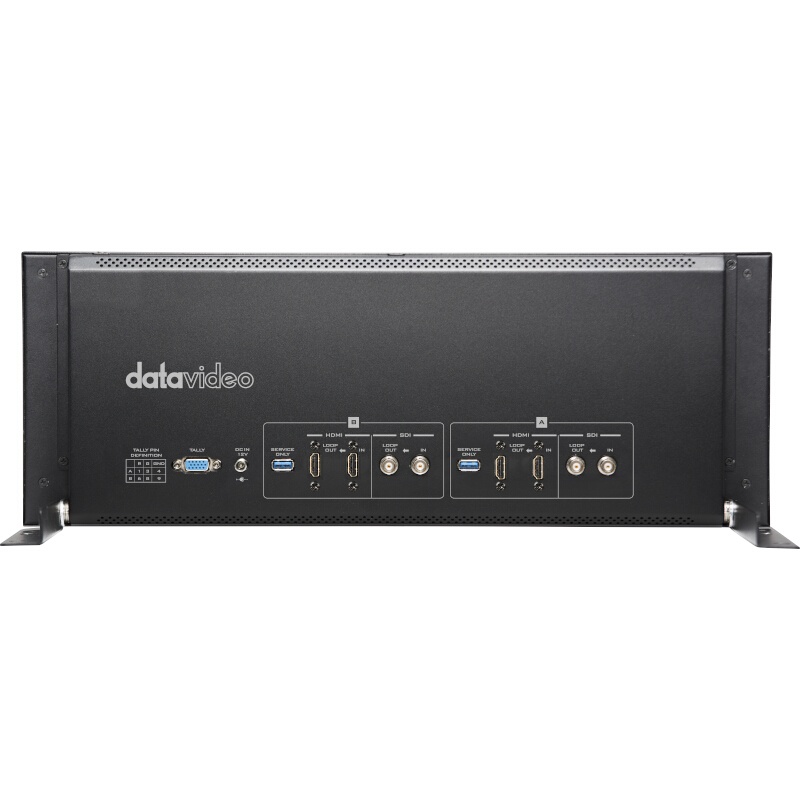

Supports 3G-SDI and HDMI video input with loop-through output
Column (YRGB peak), timecode, waveform, vectorscope, audio level meter, peaking, zoom, pix-to-pix, underscan, check field
SDI/HDMI cross conversion
Individual adjustments of brightness, contrast, color saturation, and LED backlight level for each monitor
Color temperature adjustment
Front panel headphone jacks
User-definable function buttons (F1, F2)

In The Box:
1 x TLM-102 product
1 x AD Switch DC 12V with AC Cord
1 x Tally Convertor
2 x Screw φ3.0*6m/m
4 x Screw M5 x 10mm

Specifications

Screen
Dual 10.1" LCD

Chassis
4RU Rack Mount

Resolution
1280x800

Viewing Angle
(H) +85/-85°
(V) +85/-85°

Luminance/Contrast
300cd/m²
800:1

Video Inputs
2x 3G/HD/SD-SDI
2x HDMI

Loop Through
2x 3G/HD/SD-SDI
2x HDMI

Supported Input Resolutions
1080p(23.98/24/25/29.97/30/50/59.94/60Hz),
1080i(50/59.94/60Hz), 720p(23.98/24/25/29.97/30/50/59.94/60Hz),
480i(NTSC), 576i(PAL)

Aspect Ratio
16:9, 4:3

Tally LED
Live (Red)
Cued (Green)

Audio In/Out
Embedded Audio on SDI and HDMI
Headphone Jack

Special Features
time code, waveform, vector scope & audio level meter , peaking, zoom, pix to pix, underscan, SDI, HDMI cross conversion

Dimension (LxWxH)
481 x 177 x 38 mm

Weight
3.5 kg

Operating Temp. Range
0~40 °C

Power
DC 12V, 28W
