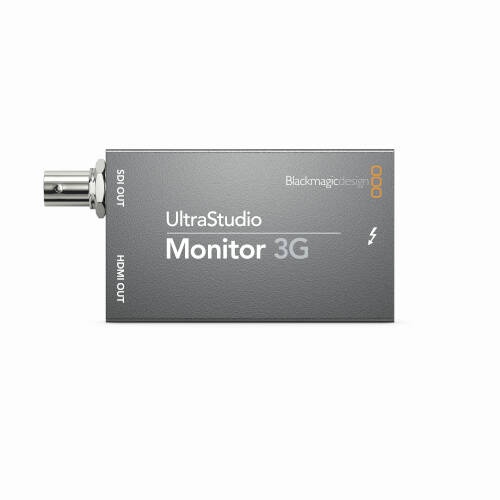

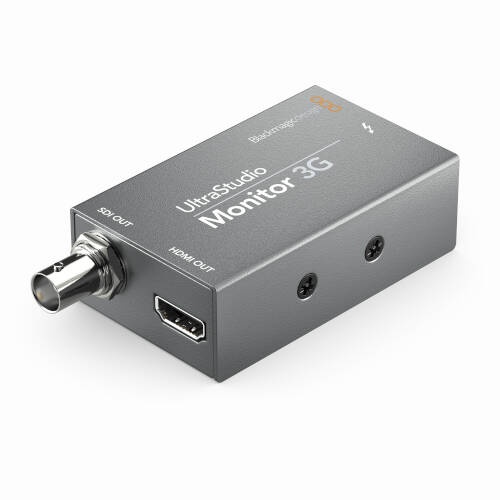

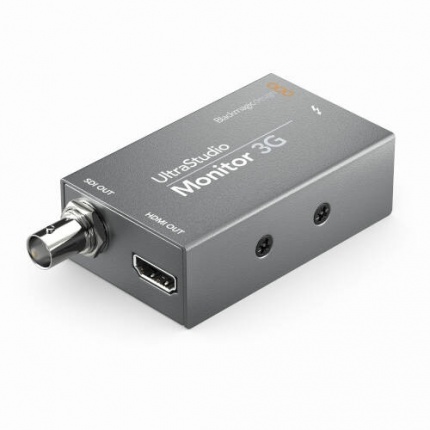

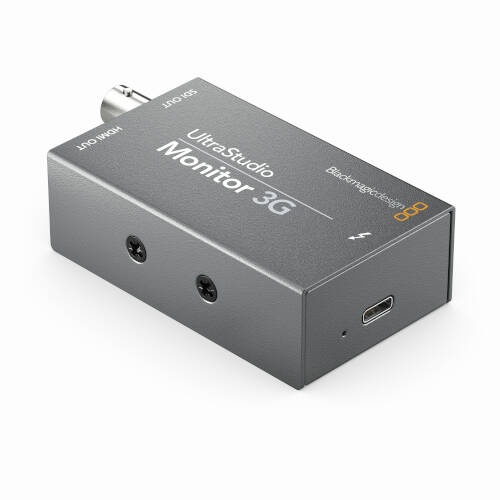

Blackmagic Design UltraStudio Monitor 3G 3G-SDI/HDMI Playback Device

ultrastudio_monitor_3g_left_angle
ultrastudio_monitor_3g_left_angleultrastudio_monitor_3g_right_angleultrastudio_monitor_3g_top
S$ 165.00
Not shipping to UNITED STATES OF AMERICA

Please select your add-on:

Buy this item and get the AKG K175 for only $89!

Top Seller!

Key Features:
  • Ultra-Portable Playback Device
  • Outputs Footage from Computer to Monitor
  • Thunderbolt, SDI, HDMI / Embedded Audio
  • Supports Resolutions up to 1080p60
  • Get the world’s smallest 3G-SDI and HDMI video playback from your Thunderbolt 3 laptop or desktop computer! UltraStudio Monitor 3G supports broadcast quality 10 bit professional SDI and HDMI monitoring from popular editing software such as DaVinci Resolve, Final Cut Pro X, Media Composer and Adobe Premiere Pro CC, plus high end broadcast graphics and titling systems.

    In the Box
    Blackmagic Design UltraStudio Monitor 3G 3G-SDI/HDMI Playback Device

    Not in the Box
    Power Supply Unit (Not Included)
    HDMI/SDI Cables (Not Included)

  • Connections
    SDI Video Outputs
    1

    SDI Rates
    270Mb, 1.5G, 3G

    SDI Audio Outputs
    16 Channels embedded in SD/HD

    HDMI Video Outputs
    1

    HDMI Audio Outputs
    8 Channels embedded in SD/HD

    Computer Interface
    Thunderbolt™ 3 (Mac OS, Windows and Linux)

    UltraStudio Monitor 3G
    Supported Codecs
    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

    Software
    Software Included
    Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

    Internal Software Upgrade
    Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

    Software Applications
    DaVinci Resolve icon
    DaVinci Resolve

    Fusion icon
    Fusion

    Final Cut Pro icon
    Final Cut Pro X

    Adobe Premiere Pro icon
    Adobe Premiere Pro CC

    Adobe After Effects icon
    Adobe After Effects CC

    Adobe Photoshop icon
    Adobe Photoshop CC

    Adobe Character Animator icon
    Adobe Character Animator CC

    Avid Media Composer icon
    Avid Media Composer

    Avid Pro Tools icon
    Avid Pro Tools

    Steinberg Cubase icon
    Steinberg Cubase

    Steinberg Nuendo icon
    Steinberg Nuendo

    Other supported applications include:
    The Foundry Nuke, Sony Catalyst Production Suite, Tools On Air Just: Play & Live, Magix Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Grass Valley Edius, Softron Mreplay, Telestream Wirecast, Livestream Studio, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Burst Video Webclip2Go, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live and Titler Pro, SGO Mistika, Zoom.

    SDI Video Standards
    SD Video Standards
    525i59.94 NTSC, 625i50 PAL

    HD Video Standards
    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60

    2K Video Standards
    2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
    2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

    SDI Compliance
    SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M A/B and SMPTE ST2108-1

    SDI Metadata Support
    RP 188/SMPTE 12M-2 and closed captioning.

    SDI Audio Sampling
    Television standard sample rate of 48 kHz and 24-bit.

    SDI Video Sampling
    4:2:2, 4:4:4

    SDI Color Precision
    8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.

    SDI Color Space
    REC 601, REC 709 and REC 2020

    SDI HDR Support
    HDR metadata packing, HLG and PQ transfer characteristics.

    Multiple Rate Support
    SDI video connection is switchable between SD and HD.

    HDMI Video Standards
    SD Video Standards
    525i59.94 NTSC, 625i50 PAL

    HD Video Standards
    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080i50, 1080i59.94, 1080i60

    HDMI Audio Sampling
    Television standard sample rate of 48 kHz and 24 bit.

    HDMI Video Sampling
    4:2:2 and 4:4:4

    HDMI Color Precision
    10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards.

    HDMI Configuration
    HDMI 2.0a supports Deep Color and HDR. Automatically configures to connected display.

    HDMI Color Space
    REC 601, REC 709 and REC 2020

    HDMI HDR Support
    HDR metadata packing, HLG and PQ transfer characteristics.

    Multiple Rate Support
    HDMI video connection is switchable between SD and HD.

    Hardware Frame Buffer
    v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB).

    Processing
    Real Time Effects
    DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.

    Colorspace Conversion
    Hardware based real time.

    Physical Installation
    Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements.

    Physical Specifications
    UltraStudio Monitor 3G
    Operating Systems
    Mac icon
    Mac 10.14 Mojave,
    Mac 10.15 Catalina or later.

    Windows Icon
    Windows 8.1 and 10, both 64-bit.

    Linux icon
    Linux

    Power Requirements
    Powered by Thunderbolt cable. Requires computer with a Thunderbolt™ 3 USB-C port.

    Environmental Specifications
    Operating Temperature
    5° to 40° C (32° to 104° F)

    Storage Temperature
    -20° to 45° C (-4° to 113° F)

    Relative Humidity
    0% to 90% non-condensing

    What's Included
    UltraStudio Monitor 3G

    Warranty
    12 Month Limited Manufacturer's Warranty.
