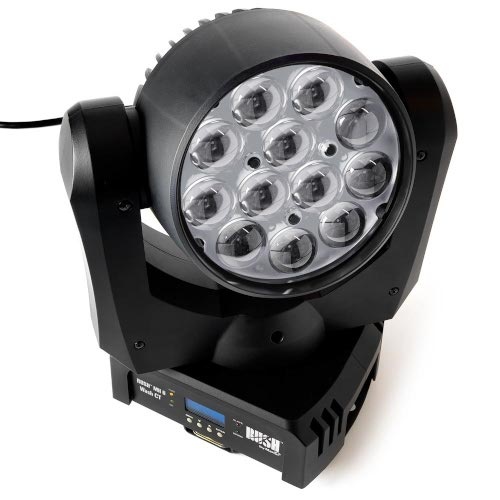

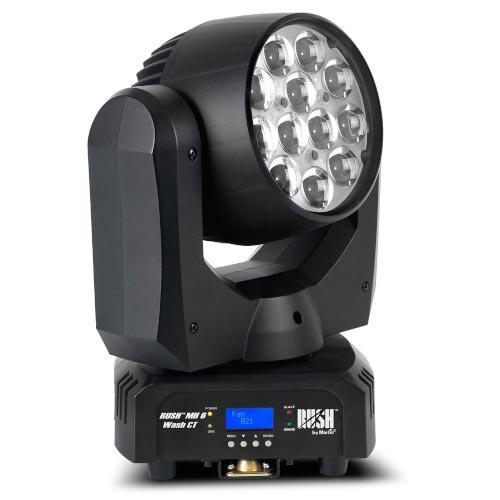

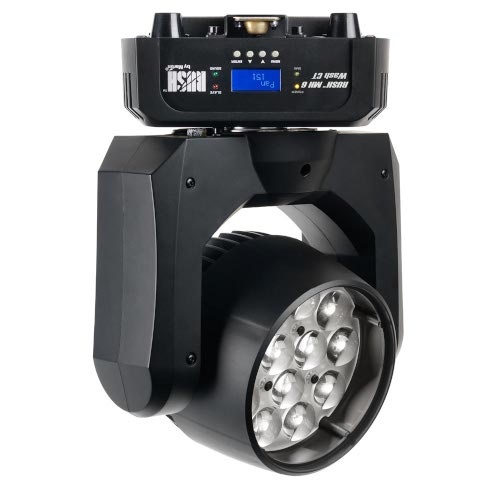

Martin Professional RUSH MH 6 Wash CT Professional Moving Head (WW/CW)

DYNAMIC EFFECTS
Electronic shutter effect: Instant open and blackout
Electronic dimming: 0 - 100%, four dimming curve options
Strobe and pulse effects: Variable speed and action, random strobe
Color mixing: RGBW
Color presets: 36 color presets plus full white, ‘color wheel’ effects
Zoom: Motorized
Pan: 540°
Tilt: 200°

CONTROL AND PROGRAMMING
Control options: DMX
16-bit fine control: Dimming, pan and tilt
White balance control: RGB adjustment
DMX channels: 14
DMX address setting: Control panel with LCD display
DMX compliance: USITT DMX512/1990

OPTICS
Zoom range: 10° - 60°
Light source: 12 x 10W OSRAM OSTAR WW/CW LEDs
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
*Figure obtained under manufacturer's test conditions.

CONSTRUCTION
Housing: High-impact flame-retardant thermoplastic
Color: Black
Ingress protection rating: IP20

INSTALLATION
Minimum clearance around fan and air vents: 100 mm (4 in.)
Mounting points: One quarter‐turn bracket for rigging clamp
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 100 mm (4 in.)
Minimum distance to illuminated surfaces: 200 mm (8 in.)

CONNECTIONS
AC power in, thru: Neutrik PowerCon
DMX data in, thru: 3-pin and 5-pin locking XLR

ELECTRICAL
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Fuse: T 3.15 A
Typical half-cycle RMS inrush current: 11.3 A (at 240 VAC)
Recommended Miniature Circuit Breaker: Type D*
*Per IEC 60898/UL489/CSA C22.2 No. 5
Power consumption figures are typical, not maximum. Allow for +/-10% variation.

TYPICAL POWER AND CURRENT
120 V, 60 Hz: 1.3 A, 150 W, PF 0.99
230 V, 50 Hz: 0.7 A, 150 W, PF 0.94
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

THERMAL
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)

APPROVALS
EU safety: EN 60598-2-17 (EN605989-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573, UL 8750
US EMC: CFR Title 47 Part 15
Canadian safety: CSA C22.2 No. 166
Australia/NZ: C-TICK N4241 / RCM

INCLUDED ITEMS
Power input cable, 6 A, 18 AWG, UL, 0.75 mm2, H05VV-F, 1.5 m (4.9 ft.), without mains plug
Omega bracket for rigging clamp attachment

ACCESSORIES (Optional item not included)
Power connectors:
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female: P/N 91611794

Cables, 16 A, for relaying power in chains:
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176

Cables, 16 A, for power input:
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)

Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
