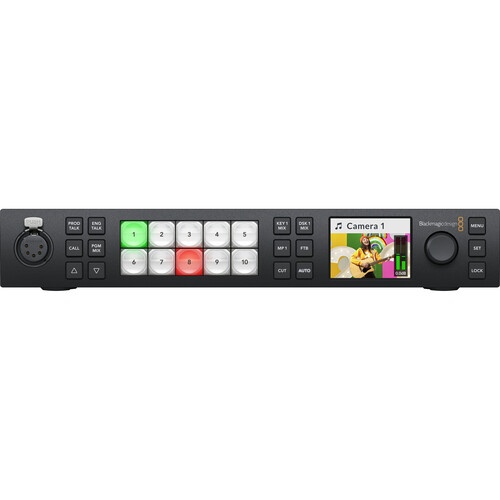

Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher

Powerful live event HD switching, supporting up to 10 individual 3G/HD-SDI inputs built into a 1 RU chassis, is at hand with the Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher. Supporting 3G-SDI and HD-SDI signals, the switcher connects to a wide range of cameras and sources, delivering program output via six 3G-SDI BNC outputs or a webcam output via USB-C. In addition, the switcher has a multiview output with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 28 channels of audio.

The switcher features a reference video input, and each input features a frame synchronizer, frame rate converter, and format converter. This allows you to mix and match cameras, formats, cameras that do not feature genlock, and video input from computer sources. Upstream and downstream keyers and effects are supported. All this is done live and in real time with no rendering required. You can control the switcher using the integrated front panel, optional Blackmagic ATEM panels, or via the downloadable control software.
